Vacuum Pumping System
Integrated vacuum pumping system with oil-sealed 1-phase/3-phase single stage rotary vane vacuum pump, smart pressure controller and 40 L tank for vacuum suction applications.
Description
Integrated vacuum pumping system with oil-sealed 1-phase/3-phase single stage rotary vane vacuum pump, smart pressure controller and 40 L tank for vacuum suction applications.
Features of the Vacuum Pumping System:
- Smart pressure controller for 1-phase motor
- Customized 40-liter rust-proofed tank
- Robust handle and oversized big wheels for easy transportation

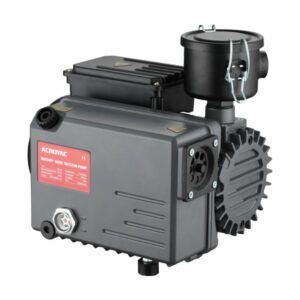

- High quality dust filter installed to protect the vacuum pump
- 24/7 continuous operation
High Efficient Dust Filter:
- Filter element made of high quality polyester fiber material
- High filtering efficiency and low resistance
- Large dust holding capacity
Smart Pressure Controller:
- Smart control of vacuum pressure measuring, monitoring and displaying
- Automatic adjustment of working parameters and automatic ON/OFF control
- Anti-vibration and high control precision
Technical Data:
Model | ASV-20S1 | ASV-40S1 | ASV-63S1 | ASV-100S1 | ASV-200S1 |
Power Supply | 220V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
Displacement (m3/h) | 20 | 40 | 63 | 100 | 200 |
Ultimate Pressure (mbar) | 2 | 0.5 | 0.5 | 0.5 | 0.5 |
Pressure Setting of Controller (Kpa) | -101-0 | -101-0 | -101-0 | -101-0 | -101-0 |
Tank Capacity (L) | 40 | 80 | 120 | 120 | 220 |
Intake | G3/4, G1/2 | G1 1/4 | G1 1/4 | G1 1/4 | G2 |
Motor Power (kW) | 0.75 | 1.5 | 2.2 | 3.0 | 5.5 |
Nominal Speed (rpm) | 3000 | 1440 | 1440 | 1440 | 1455 |
Oil Capacity (L) | 0.45 | 1.5 | 2 | 2 | 6 |
Weight (KG) | 36 |
