A vacuum solenoid valve is an electrically operated device that controls the flow of gas within a vacuum system. Your vacuum system should have one for crucial functions like automated on/off control, rapid system isolation during power failures, precise pressure regulation, and enhancing overall safety and efficiency in automated processes.

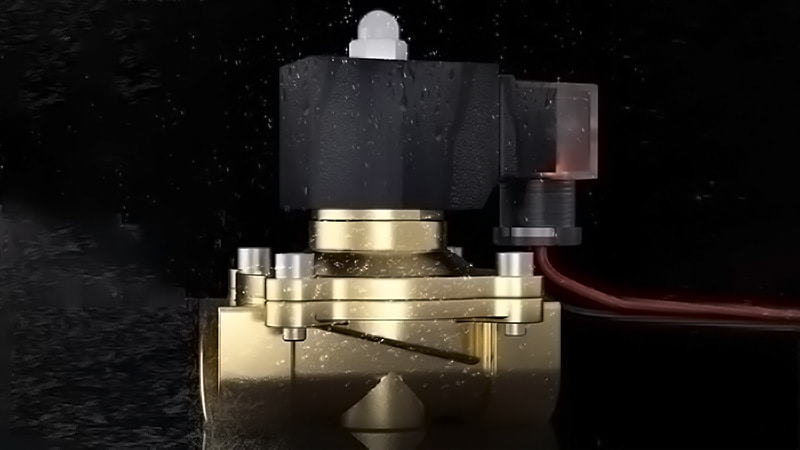

How does a vacuum solenoid valve fundamentally work?

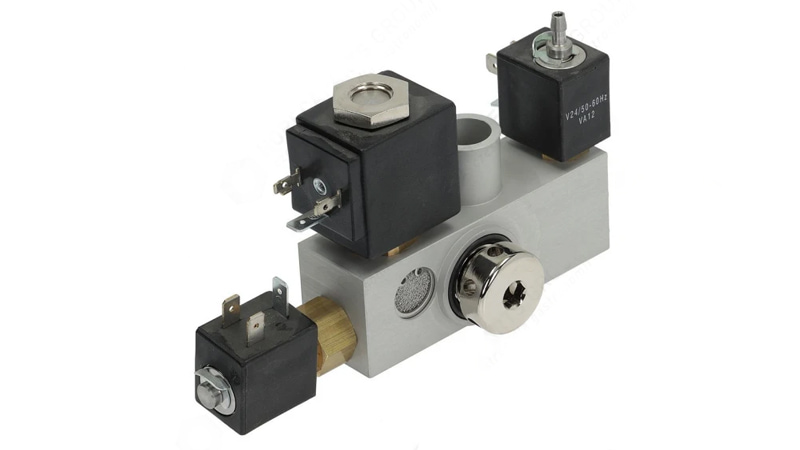

A vacuum solenoid valve operates through an electromagnetic coil that, when energized, creates a magnetic field to move a plunger or armature. This movement directly opens or closes an orifice, controlling the flow path for gas within a vacuum line. This simple electrical actuation allows for remote and automated vacuum system control.
Vacuum Solenoid Valve Operation Breakdown
| Component | Function | Role in Vacuum Control |
|---|---|---|
| Electromagnetic Coil | Generates magnetic field when energized | Converts electrical signal to mechanical force |
| Plunger/Armature | Movable ferrous core inside coil | Physically opens/closes valve orifice |
| Valve Orifice/Seal | Pathway for gas flow, sealed by plunger | Directly controls gas flow within vacuum line |
| Spring (Optional) | Returns plunger to default position when de-energized | Determines normally open/closed state |

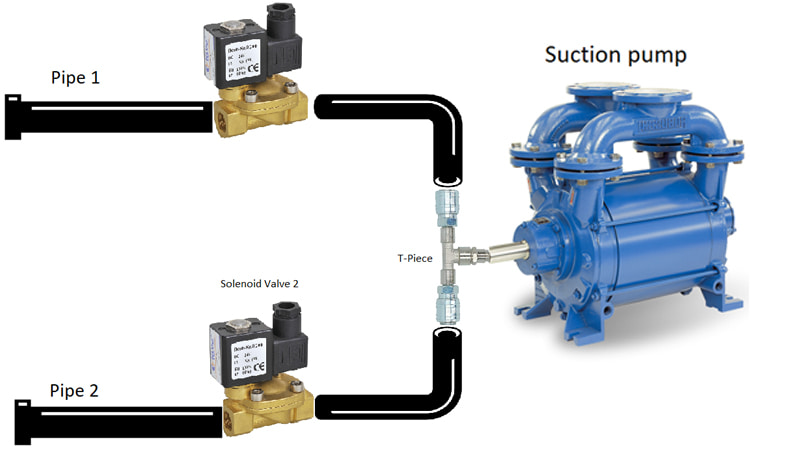

Why is a solenoid valve essential for your vacuum system?
A solenoid valve is essential for your vacuum system because it enables precise automated control, rapid isolation for safety (e.g., during power failures), protects your vacuum pump from backstreaming or atmospheric exposure, facilitates accurate pressure regulation, and is critical for integrating your vacuum process into automated control systems.
From my perspective as an expert in sourcing vacuum pumps, the benefits of incorporating a solenoid valve into your vacuum system are immense and go far beyond simple on/off control. One of the most critical reasons is automation. Solenoid valves can be connected to vacuum controllers, PLCs (Programmable Logic Controllers), or even simple timers. This allows you to precisely control pump cycles, chamber isolation, and gas introduction without constant human supervision, greatly enhancing efficiency in processes like thin film deposition, freeze-drying, or industrial packaging.
Another crucial role is safety and pump protection. Many vacuum pumps, especially oil-sealed rotary vane pumps, are vulnerable to oil backstreaming if they shut down unexpectedly (e.g., during a power outage) while connected to a vacuum chamber. A normally closed solenoid valve, installed between the pump and the chamber, can be wired to automatically close upon power loss. This instantly isolates the chamber from the pump, preventing atmospheric pressure from rushing into the pump and forcing oil back into your delicate vacuum system or process. It also protects your pump from sudden exposure to atmospheric pressure if the vacuum chamber is accidentally vented. This automatic isolation capability significantly reduces the risk of pump damage, contamination of your process, and costly downtime, making it a truly essential component for safeguarding your equipment and operations.
Essential Roles of Solenoid Valves in Vacuum Systems
| Function | Description | Benefit to System |
|---|---|---|
| Automated Control | On/off control, sequencing, pressure regulation | Increased efficiency, reduced labor, repeatable processes |
| Rapid Isolation | Quickly seals off chamber/system from pump | Protects pump from backstreaming, maintains vacuum integrity |
| System Safety | Emergency shutdown, power failure protection | Prevents costly damage, enhances operational safety |
| Pressure Control | Works with controllers to achieve specific pressure setpoints | Precision in sensitive vacuum processes |

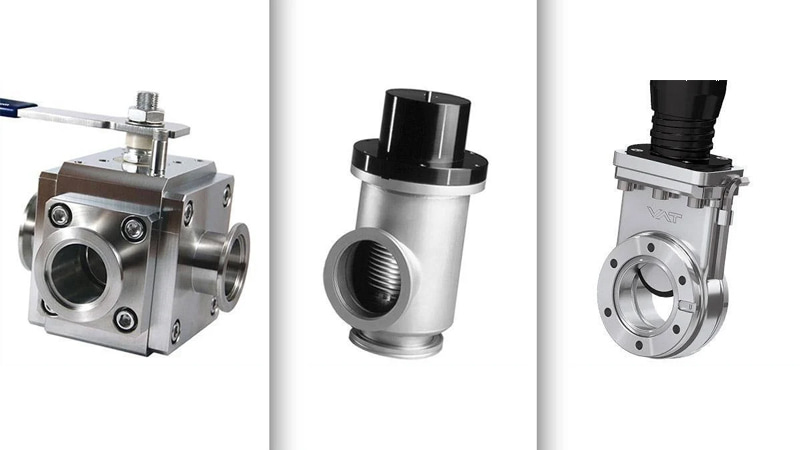

Beyond Solenoids: What are the Broader Functions of Vacuum Valves?
Beyond electrically actuated solenoids, vacuum valves broadly serve to isolate sections of a vacuum system, regulate gas flow, or vent chambers. This category includes manual valves (ball, gate, butterfly, diaphragm), check valves, and relief valves, each designed to manage gas flow and prevent leaks across different vacuum levels and applications.
Manual valves, for example, require human interaction to open or close. Ball valves offer quick on/off control with minimal flow restriction in rough vacuum. Gate valves provide a full-bore opening and are excellent for isolating large chambers, especially in high vacuum, where minimizing flow obstruction is key. Butterfly valves offer good flow control in rough to medium vacuum applications. Diaphragm valves are designed for high cleanliness applications, as their diaphragm isolates the working mechanism from the vacuum path, preventing contamination.
Beyond basic flow control, check valves allow gas flow in only one direction, preventing back-flow. Relief valves automatically open to vent pressure if it exceeds a safe limit, protecting equipment from accidental overpressure. Each type is specifically engineered to address challenges unique to vacuum environments, such as preventing leakage, minimizing outgassing from internal materials, and handling various pressure differentials. Selecting the right type of valve is as critical as choosing the right pump for your vacuum system’s success.
Vacuum Valve Types and Their Functions
| Valve Type | Mechanism | Primary Function | Typical Vacuum Level |
|---|---|---|---|
| Solenoid Valve | Electromagnetic coil, plunger | Automated on/off control, isolation | Rough to High |
| Ball Valve | Rotating ball with bore | Quick manual on/off isolation | Rough to Medium |
| Gate Valve | Sliding gate | Full-bore isolation | Rough to High |
| Check Valve | One-way flap/poppet | Prevents back-flow of gas | All vacuum levels |

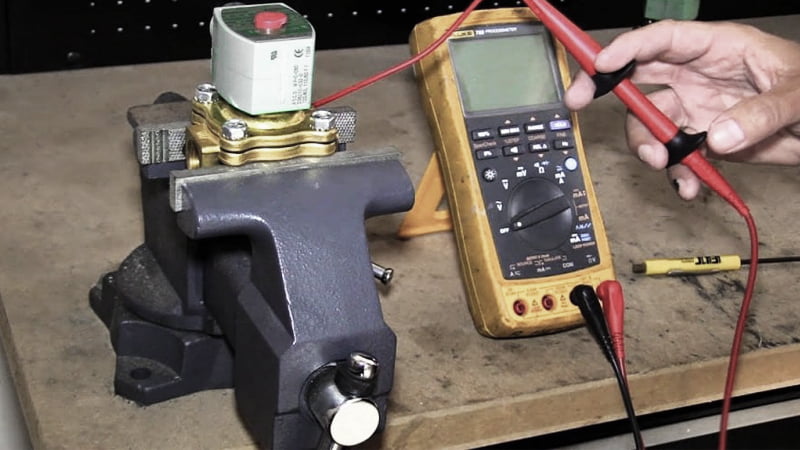

What are the common symptoms of a failing vacuum solenoid valve?
Common symptoms of a failing vacuum solenoid valve include audible buzzing or clicking without actuation, the valve remaining stuck open or closed, visible leaks around the valve body, or the valve overheating. These issues typically lead to inconsistent vacuum levels, impaired system control, and potential process failure.
Another clear symptom is the valve being stuck in either the open or closed position, regardless of whether power is applied. This can be caused by contamination inside the valve, a broken spring, or electrical coil failure. A stuck-open valve might prevent your system from reaching the desired vacuum, while a stuck-closed valve would prevent gas flow entirely. You might also notice visible leaks around the valve body, particularly around the connections or the plunger shaft. Leaks will compromise your ultimate vacuum and make it impossible to hold pressure.
Finally, an overheating solenoid coil can indicate internal short circuits or the valve drawing too much current, signaling imminent failure. If you observe any of these symptoms, inspecting or replacing the solenoid valve is usually necessary to restore your vacuum system’s reliability and performance.
Symptoms and Causes of a Failing Solenoid Valve
| Symptom | Likely Cause | Impact on Vacuum System |
|---|---|---|
| Buzzing/Clicking, No Actuation | Weak coil, low voltage, stuck plunger | Valve fails to open/close as commanded, unreliable control |
| Stuck Open/Closed | Contamination, broken spring, electrical failure | Inconsistent vacuum levels, inability to isolate/vent |
| Visible Leaks | Damaged seals/gaskets, loose connections | Compromised ultimate vacuum, increased pump load |
| Overheating Coil | Internal short, continuous duty beyond rating | Imminent coil failure, loss of control |
