You finished the job and packed up your gear. But leaving the valves on your expensive recovery machine open feels wrong, like leaving a door unlocked.
You should store your recovery machine with the valves open to prevent dangerous pressure buildup from thermal expansion and to allow residual moisture to evaporate, protecting internal components from damage and corrosion.
After a decade in the vacuum and refrigeration industry, I've learned that some of the best maintenance practices seem counter-intuitive at first. This is one of them. It feels natural to want to seal everything up tightly after a job. But with a recovery machine, doing so traps a hidden enemy inside. That small amount of refrigerant and moisture left over after purging can cause serious damage if it's sealed in. Let's break down exactly why an "open door" policy is the best way to protect your investment.
What happens if I store my machine with the valves closed?
It seems like a tidy and safe way to store your equipment. But closing the valves after a job can turn your recovery machine into a ticking time bomb.
Closing the valves traps residual refrigerant. As temperature increases, this trapped refrigerant expands, creating extreme pressure that can burst hoses, damage gauges, and even harm the internal compressor seals, leading to costly repairs.
I once got a call from a technician whose recovery machine hoses had burst while sitting in his work van on a hot day. He had closed the valves tightly after his last job. The small amount of liquid refrigerant trapped in the lines and the machine warmed up, expanded, and the pressure skyrocketed until the hoses became the weak point. This isn't a rare occurrence; it's a predictable result of physics.
The Danger of Thermal Expansion
Refrigerants, especially in their liquid state, expand significantly when they get warmer. A machine stored in a cool garage and then left in a sun-baked van can experience a temperature swing of over 50°F (28°C). This change is more than enough to increase the internal pressure to dangerous levels, well beyond the normal operating limits.

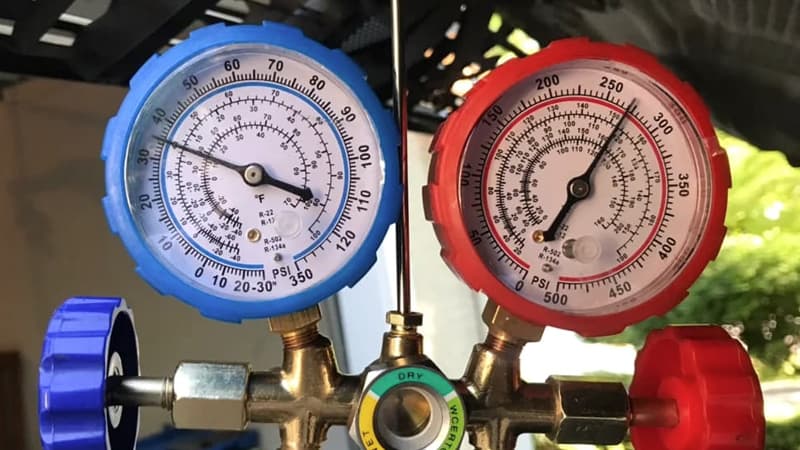

- Gauge Damage: The delicate bourbon tube inside your pressure gauges can be permanently stretched or ruptured, leading to inaccurate readings or complete failure.
- Hose Rupture: Hoses are designed to be flexible, but they have a burst pressure limit. A pressure spike can cause a sudden, dangerous rupture.
- Internal Stress: The high pressure puts unnecessary stress on the machine's internal compressor seals and check valves, potentially causing premature wear and leaks.
By leaving the valves open to the atmosphere, you give this pressure a safe place to go. The machine can "breathe," equalizing with the surrounding air pressure and completely avoiding this damaging cycle.
How does leaving valves open protect the machine from moisture?
You know pressure is a problem, but what about a more silent killer? The invisible moisture that gets pulled into your machine during every recovery job can cause slow, hidden damage.
Leaving the valves open allows any residual moisture inside the machine's passages to evaporate and escape into the atmosphere. This prevents the moisture from corroding metal parts or mixing with refrigerant oil to form damaging sludge and acid.
Every time you connect your hoses to a system, you introduce a tiny amount of atmospheric moisture. During recovery, more moisture is pulled from the system itself. If you seal the machine after the job, you are trapping this moisture inside. This is where the real long-term damage begins.
Preventing Internal Corrosion and Sludge
Moisture is the arch-enemy of refrigeration systems and the tools that service them. When trapped inside your recovery machine, it does two terrible things:
- Corrosion: The moisture can lead to rust and corrosion on the metal surfaces inside the compressor and valves. These tiny rust particles can then flake off and cause blockages or abrasive damage.
- Oil Contamination: Moisture will mix with the residual refrigerant oil in the machine. This mixture, especially under heat, can break down the oil and form a thick, waxy sludge. Worse, it can react with trace amounts of refrigerant to form corrosive acids, just like inside an AC system.
By leaving the valves open, you allow the machine to "air out." The trapped water molecules will naturally evaporate and dissipate, leaving the inside of your machine dry and protected. It’s a simple, free way to prevent the buildup of these system-killing contaminants and extend the life of your equipment.
How can I speed up the refrigerant recovery process?
You're on a job, and the recovery process is taking forever. Watching the gauges creep down slowly is frustrating, especially on a hot day when time is money.
To speed up recovery, use the shortest possible hoses with the largest possible diameter. Cool the recovery tank in an ice bath and connect to both the high and low-side ports to maximize the flow rate.
Slow recovery is a common headache, but it's usually caused by restrictions and pressure, not a faulty machine. I've helped countless technicians optimize their setup, and making a few small changes can cut recovery time in half. The goal is to create the path of least resistance for the refrigerant to follow.
Tips for Faster Recovery
Here are the most effective methods to get refrigerant out of a system and into the tank faster.
| Technique | Why It Works | How to Do It |
|---|---|---|
| Use Short, Wide Hoses | Reduces flow friction. A ½" hose has four times the flow rate of a ¼" hose. | Use ½" hoses whenever possible, and keep them as short as the job allows. |
| Remove Schrader Cores | The Schrader valve core is a major bottleneck in the service port. | Use a dedicated Schrader core removal tool to open up the full diameter of the port. |
| Cool the Recovery Tank | Lowers the pressure in the tank, increasing the pressure difference between the system and tank, which drives flow. | Place the recovery tank in a bucket of ice and water. The colder, the better. |
| Use Push-Pull (Large Systems) | Uses the recovery machine to pull vapor from the tank while pushing liquid from the system. | Connect the machine's outlet to the tank's vapor port and the inlet to the system's liquid port. Requires a liquid line port. |
What is the correct procedure for shutting down and storing my recovery machine?
The job is done and the system is empty. Now what? Improperly packing up your gear can create problems that you'll only discover at the start of your next job.
After every job, run the machine's purge cycle to clear out most of the refrigerant. Then, disconnect all hoses, drain any collected oil from the separator, and store the machine with both the inlet and outlet valves fully open.
A consistent shutdown routine is the key to a long-lasting and reliable recovery machine. It ensures you're not trapping contaminants and that the machine is protected from the pressure and moisture issues we've discussed. Think of it as putting your tools to bed properly so they are ready to perform tomorrow.
Step-by-Step Storage Checklist
- Run the Purge/Clear Cycle: This is the most critical step. Follow your machine's instructions to use its own motor to push as much remaining refrigerant as possible out of the condenser and into the recovery tank. This minimizes the amount trapped inside.
- Disconnect All Hoses: Once purged, disconnect the hoses from the system, the tank, and the machine itself.

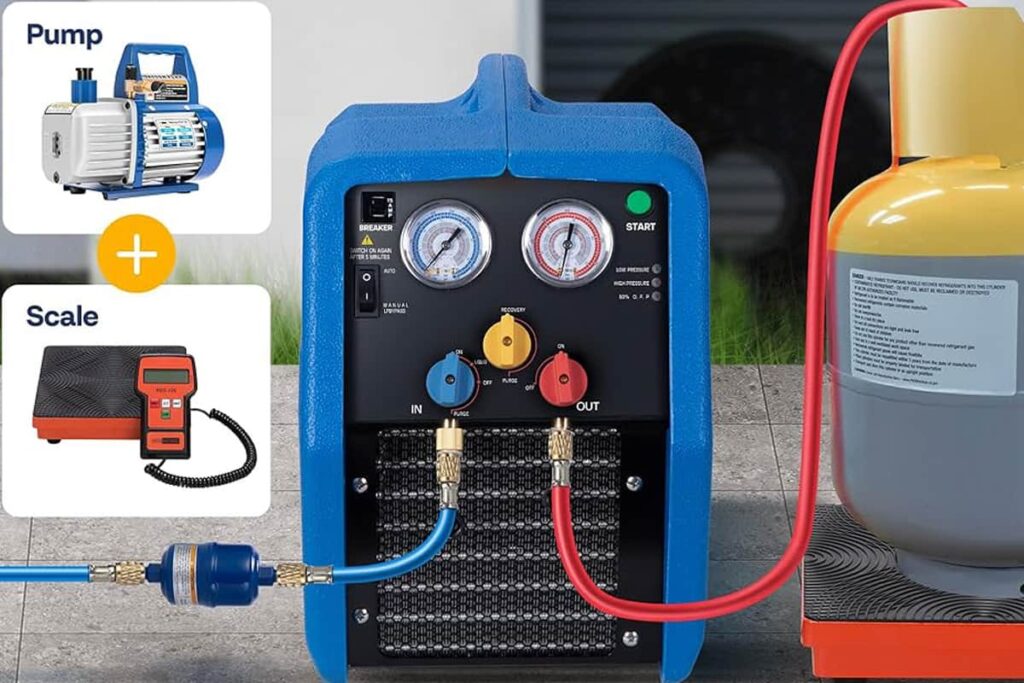

- Open Both Valves: Turn the handles for both the IN (blue) and OUT (red) ports to the fully open position. This is the main lesson of this article. It allows the machine to breathe.
- Check and Drain Oil: If your machine has an oil separator, check the sight glass and drain any accumulated oil. This removes contaminants and prevents them from being drawn back into the compressor.
- Store in a Safe Place: Keep the machine in a clean, dry location where it won't be exposed to extreme temperatures, either hot or cold.
Final Thoughts
Storing your recovery machine with open valves protects it from pressure and moisture damage. This simple habit ensures your expensive tool is safe, accurate, and ready for the next job.
