Ingenious Engineering: The Secrets of O-Ring Seals


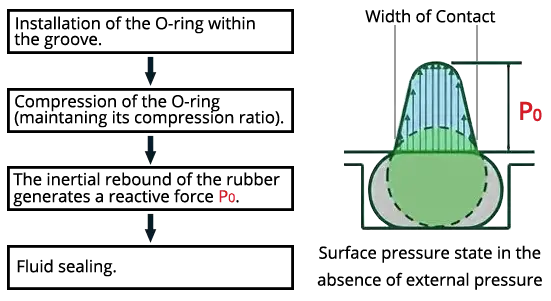

The sealing principle of O-rings

O-rings rely on a simple yet efficient mechanism involving compression, secure closure, and resilient expansion to achieve a reliable sealing effect. This fundamental principle makes them remarkably versatile, finding widespread use across various machinery and industrial domains.

O-Ring 2

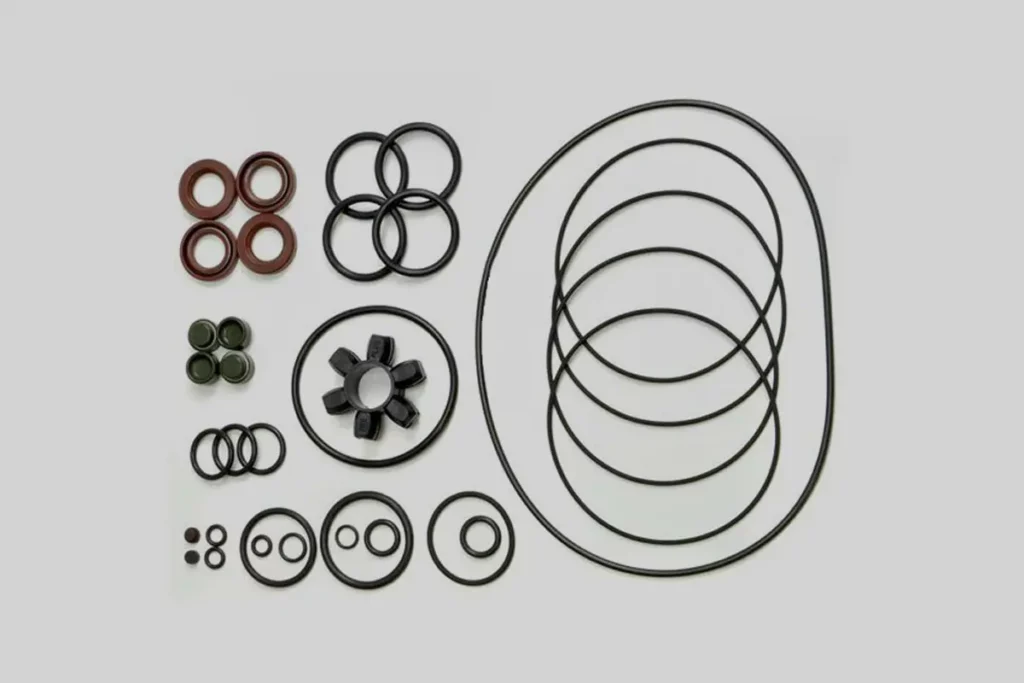

Common Types and Characteristics of O-ring Shapes

O-rings come in various shapes and configurations, each designed for specific applications. Some common types include:

  1. Round O-rings: The most prevalent type, suitable for general sealing purposes due to their versatile nature and easy installation.
  2. Quad-Ring Seals: Designed with two sealing surfaces, offering improved stability and reduced twisting compared to traditional O-rings.
  3. X-Ring and D-Ring Seals: Similar to O-rings but featuring an X or D shape, respectively, providing enhanced sealing efficiency for dynamic applications.
  4. Square O-rings: Used in specialized applications where traditional round O-rings may not be suitable, offering increased stability and sealing efficiency in specific scenarios.

O-ring Materials

The choice of materials for O-rings is critical and depends on various factors such as temperature range, chemical compatibility, pressure resistance, and environmental conditions. Some common materials used for O-rings include:

  1. Nitrile (NBR/Buna-N): Renowned for its resistance to oils, fuels, and other fluids, making it a popular choice across a wide array of applications.
  2. Viton (FKM/Fluoroelastomer): Exhibits exceptional resistance to high temperatures, aggressive chemicals, and environmental extremes, making it ideal for demanding industrial environments and aerospace applications.
  3. PTFE (Polytetrafluoroethylene): Recognized for its non-stick properties, chemical resistance, and ability to withstand extreme temperatures, offering superb sealing performance in challenging conditions.
  4. ACM (Polyacrylate): Known for its resistance to heat, ozone, and lubricants, commonly used in automotive applications.
  5. HNBR (Hydrogenated Nitrile Butadiene Rubber): Features enhanced temperature and chemical resistance compared to standard NBR, suitable for applications requiring greater durability.
  6. Silicone: Offers flexibility across a broad temperature range, excellent sealing properties, and compatibility with food-grade applications due to its purity.
  7. VMQ (Vinyl Methyl Silicone): Exhibits good resistance to extreme temperatures, weathering, and ozone, making it suitable for various sealing applications.

Essential Installation Guidelines

Efficient installation of O-rings involves following essential guidelines:

  1. Use tools without sharp edges: Employ tools that won’t cause damage to the O-ring during installation.
  2. Ensure distortion-free placement: Use aids for precise positioning, minimizing distortion during installation.
  3. Prioritize installation assistance: Utilize tools or aids designed to assist during the installation process.
  4. Avoid overstretching: Prevent damage by not overstretching the O-ring during installation.
  5. Refinement for sealed joints: When dealing with sealed joint O-rings, avoid excessive stretching at connecting points.

Installing O-Rings Across Threads and Splines

When elongating an O-ring over threads, splines, or keyways, employing an installation mandrel is crucial. Crafted from softer metals or plastics, this mandrel must be smooth without any burrs or sharp edges.

Among all common materials, NBR and FKM emerge as the primary preferences for O-ring materials within rotary vane vacuum pumps.

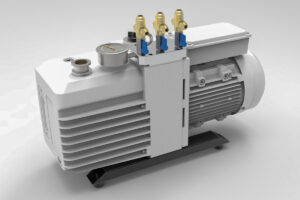

Looking For Quality & Affordable Vacuum Pumps?
