Have you ever struggled to get your vacuum pump to its deepest vacuum, especially with vapors around? The gas ballast valve is key to solving this, but using it right can be tricky. Ignoring it can ruin your pump’s performance and lifespan.

The gas ballast valve in a vacuum pump introduces a controlled amount of dry gas into the pump’s compression chamber, preventing condensable vapors from liquidizing and contaminating pump oil. Opening it is crucial for vapor removal, extending pump life, and maintaining efficiency in humid or vapor-laden environments, though it slightly reduces ultimate vacuum.

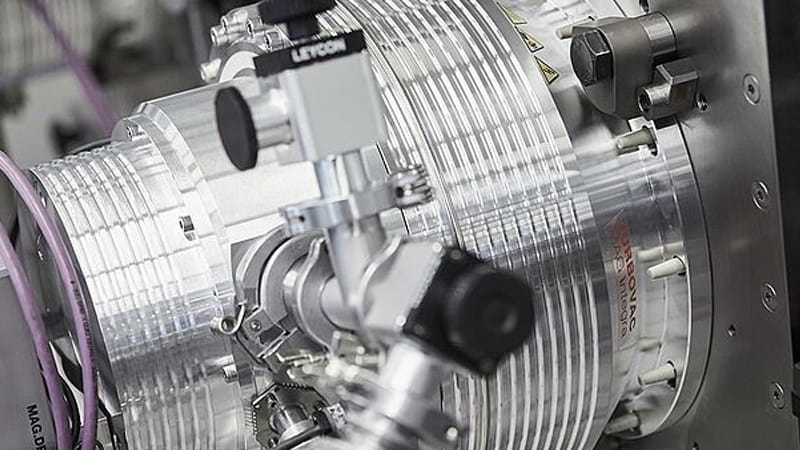

Function of Gas Ballast Valve
From my decade in the vacuum pump industry, I have seen how common it is for pumps to struggle in vaporous conditions. The gas ballast valve is a critical feature in high-performance rotary vane vacuum pumps, especially in challenging environments where vapors and condensable gases are present. This article explains how to use the gas ballast valve effectively, its underlying principles, and its vital role in maintaining pump performance and longevity.

How does the gas ballast valve fundamentally work in a vacuum pump?

Ever wondered how your vacuum pump handles moisture without choking? The gas ballast valve is the ingenious mechanism behind it. Understanding its core operation is key to solving vapor problems.

The gas ballast valve works by injecting a controlled amount of non-condensable dry gas (usually air) into the pump’s compression chamber, specifically before the condensable vapors are compressed to their saturation point. This dilutes the vapor, preventing it from condensing into liquid within the pump and allowing it to be expelled as a gas.

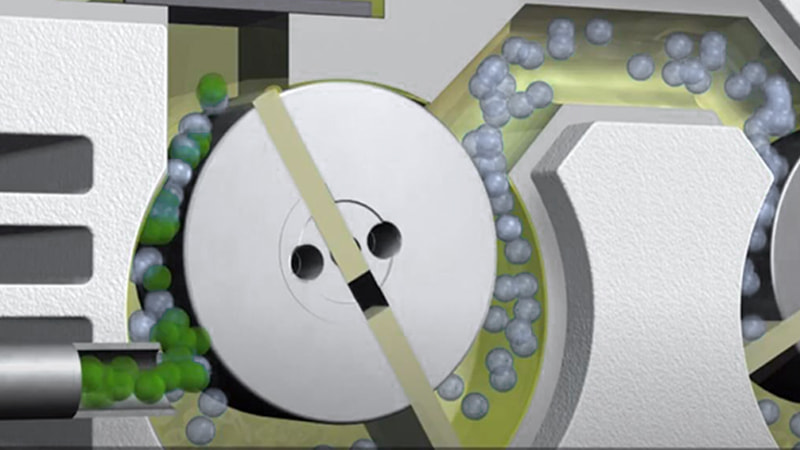

Diagram of Gas Ballast Principle

In my experience, many people misunderstand the gas ballast valve as just a simple vent. But it is much more clever than that. The principle, introduced by Wolfgang Gaede in 1935, was a revolution for rotary vane pumps. When a vacuum pump operates, it pulls in not just air, but also any vapors present in the system, like water vapor or solvent fumes. As these vapors are compressed inside the pump, their partial pressure increases. Without gas ballast, they would reach their saturation pressure and condense into a liquid within the pump’s oil-lubricated stages.

This condensation is a serious problem for oil-lubricated pumps, as it emulsifies the pump oil, turning it into a sludge that compromises lubrication, cooling, and sealing. This leads to reduced ultimate vacuum, increased wear, and eventually pump failure.

Here is how the gas ballast valve prevents this: When the valve is open, a controlled amount of ambient air (or another dry gas like nitrogen if available) is allowed to enter the pump’s compression chamber at a specific point in its cycle. This happens after the inlet port is closed but before the vapors can be compressed enough to condense. This incoming ballast gas effectively “dilutes” the condensable vapors. It increases the total pressure in the chamber just enough so that the vapor’s partial pressure does not reach its saturation point before it is exhausted out of the pump. This allows the vapors to remain in their gaseous state and be expelled along with the ballast gas.

This ingenious method ensures the vapors are discharged from the pump as gases, keeping the pump oil clean and maintaining lubrication and sealing integrity.

Gas Ballast Principle Explained

Component/Action Description Impact on Vapors in Pump
Vapor Compression Pump compresses ingested vapors Leads to condensation if partial pressure exceeds saturation
Gas Ballast Inlet Introduces dry air/gas into compression chamber Dilutes condensable vapors, increases total pressure
Vapor Partial Pressure Remains below saturation point during compression Prevents condensation into liquid
Vapor Expulsion Vapors exit pump as gas along with ballast gas Keeps pump oil clean, maintains performance

When should the gas ballast valve be open versus closed for optimal performance?

Is your gas ballast valve always open, or always closed? Using it incorrectly can hurt your vacuum pump’s performance. Knowing precisely when to operate it is crucial for efficiency.

The gas ballast valve should be open when pumping condensable vapors (e.g., water, solvents) to prevent oil contamination and maintain pump longevity. Conversely, it must be closed when the highest possible ultimate vacuum is required and vapor content is minimal, as operating with it open slightly reduces maximum achievable vacuum.

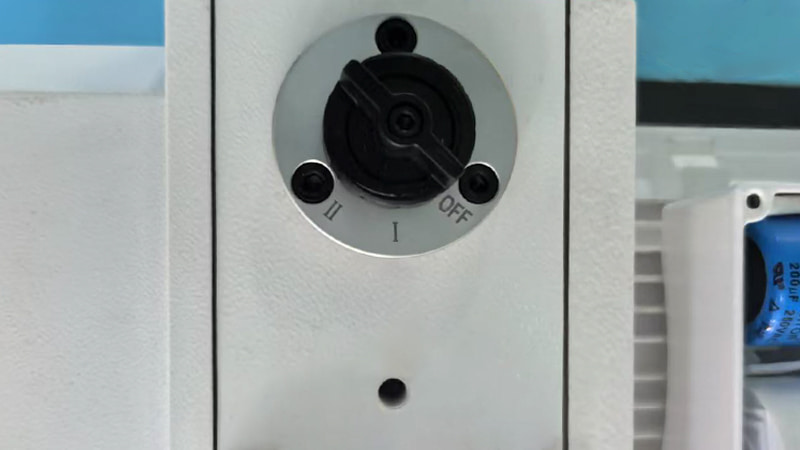

When to Open or Close Gas Ballast
From my professional experience, deciding when to open or close the gas ballast valve is a critical balancing act for any vacuum pump operator. It depends entirely on your application and environment.

When to Open the Gas Ballast Valve:

You should keep the gas ballast valve open in any environment with high vapor content. This includes common laboratory applications like freeze drying, gel drying, rotary evaporation, or distillation processes where significant amounts of water vapor or solvent fumes are present.

I have seen how quickly pump oil can degrade in these conditions if the ballast is not used. Keeping it open ensures that condensable gases are effectively swept out of the pump as vapor, protecting your pump oil from emulsification and extending its life. This is also important if the pump is operating in a very humid environment, even if not directly connected to a high-vapor process.

Remember, while the ultimate vacuum will be slightly higher with the valve closed, this minor trade-off is absolutely necessary to prevent severe oil contamination and pump damage in vaporous conditions.

When to Close the Gas Ballast Valve:

Close the gas ballast valve when you need to achieve the deepest possible ultimate vacuum pressure. This is ideal for processes where the vapor content is minimal, such as evacuating a dry system or during the final stages of a very dry vacuum process.

In such scenarios, the risk of condensation within the pump is low, and introducing extra gas would only hinder the pump’s ability to reach its lowest pressure. So, for applications demanding the absolute best vacuum performance, ensure the gas ballast valve is fully closed.

Always consider the nature of the gas you are pumping and the cleanliness requirements of your system before deciding.

Gas Ballast Valve Position Guide

Application Scenario Gas Ballast Valve Position Rationale Impact on Vacuum Level (Ultimate)
High Vapor Content Open Prevents condensation, protects pump oil Slightly higher (less deep)
Pumping Solvents/Water Vapor Open Ensures vapors remain gaseous for expulsion Slightly higher (less deep)
Achieving Deepest Vacuum Closed Avoids diluting vacuum, reaches lowest pressure Lower (deeper)
Dry System Evacuation Closed No vapor risk, maximizes ultimate vacuum Lower (deeper)

Why is proper gas ballast usage critical for vacuum pump longevity and efficiency?

Is your vacuum pump prematurely failing or losing suction? The reason might be simpler than you think. Proper gas ballast usage is not just a feature; it is essential for the long-term health and performance of your pump.

Proper gas ballast usage is critical for vacuum pump longevity and efficiency because it prevents vapor condensation within the pump, which would otherwise contaminate and emulsify the pump oil. Contaminated oil compromises lubrication, cooling, and sealing, leading to increased wear, reduced ultimate vacuum, higher operating temperatures, and ultimately, premature pump failure.

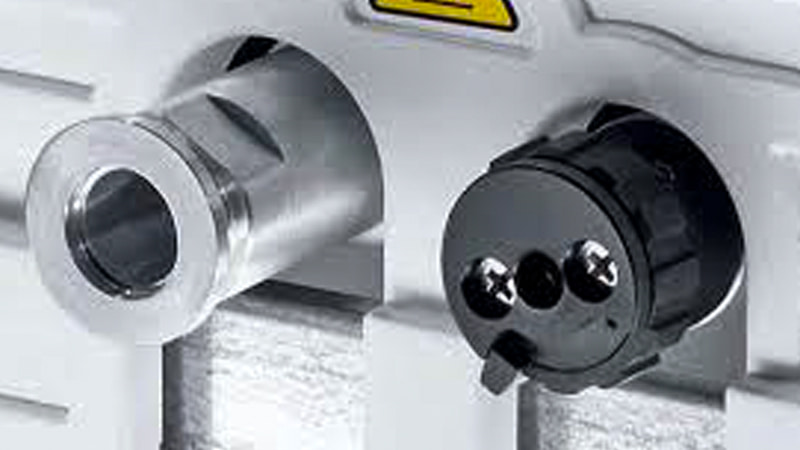

Gas Ballast for Pump Longevity
From my perspective, working with industrial vacuum pumps for a decade, the challenge of vaporous environments is one of the most common threats to pump health. Vacuum pumps often operate in demanding conditions, such as vaporous workshops or humid environments, or they pull directly from processes like freeze-drying that generate a lot of water vapor. In these settings, if the gas ballast valve is not used, vapors will inevitably condense inside the pump as they are compressed. For oil-lubricated rotary vane pumps, this condensation mixes with the pump oil, leading to a serious issue known as oil emulsification.

When oil emulsifies, it loses its critical properties. It can no longer effectively lubricate the pump’s moving parts, causing increased friction and wear on vanes, bearings, and other components. Its ability to cool the pump is also diminished, leading to higher operating temperatures.

Most importantly, emulsified oil loses its sealing capability. The oil film within the pump becomes thick and ineffective, allowing gas to leak back, which prevents the pump from reaching its ultimate vacuum pressure and drastically reduces its pumping speed. This vicious cycle of poor lubrication, overheating, and ineffective sealing accelerates pump wear and eventually leads to costly repairs or complete pump failure.

By using the gas ballast valve correctly, you actively prevent this contamination, ensuring the pump oil remains clean and effective, which directly translates to extended pump life, consistent high performance, and maximized efficiency by avoiding internal friction and maintaining optimal sealing. This preventive measure saves significant time and money in the long run.

Impact of Gas Ballast on Pump Health

Aspect Consequence Without Gas Ballast Benefit with Proper Gas Ballast Usage
Pump Oil Condition Emulsification, contamination Clean oil, optimal lubrication, sealing, cooling
Component Wear Increased friction, premature wear Reduced wear, extended component lifespan
Ultimate Vacuum Significantly reduced Maintained at optimal level (for vaporous apps)
Pump Temperature Higher operating temperatures Controlled temperature, prevents overheating
Pump Lifespan Shortened, frequent breakdowns Extended, reliable operation

What are the key benefits of effectively managing the gas ballast valve?

Are you looking to get the most out of your high-performance vacuum pump? Effectively managing the gas ballast valve offers tangible benefits that directly impact your operational success.

Effectively managing the gas ballast valve yields significant benefits, including extended pump longevity by preventing oil contamination, consistent vacuum performance in vapor-laden conditions, reduced maintenance costs from less frequent oil changes and part replacements, and enhanced operational reliability, ensuring your high-performance vacuum pump runs smoothly.

From my perspective as an expert in sourcing vacuum pumps, the careful management of the gas ballast valve translates directly into superior operational outcomes. First and foremost, it significantly extends pump longevity. By preventing water and solvent vapors from condensing and mixing with the pump oil, you eliminate the primary cause of oil degradation and internal component wear. This means your pump’s critical parts, like vanes and bearings, remain properly lubricated and sealed, reducing the need for costly replacements and overhauls.

Second, it ensures consistent vacuum performance, even in challenging environments. A pump struggling with emulsified oil cannot pull a stable or deep vacuum. With the gas ballast properly applied, your pump can effectively handle high vapor loads without compromising its basic vacuum capabilities, delivering reliable results for your processes. This consistency is vital for applications like freeze drying where precise vacuum levels are needed.

Third, you will see reduced maintenance costs. Clean oil means less frequent oil changes, fewer filter replacements, and a decreased likelihood of major mechanical failures. This saves both on parts and labor. Finally, it leads to enhanced operational reliability. When your pump is protected from vapor damage, it is less prone to unexpected breakdowns, ensuring your production or research continues uninterrupted. This proactive maintenance using the gas ballast valve keeps your high-performance vacuum pump running smoothly and efficiently for years.

Benefits of Effective Gas Ballast Management

Benefit Direct Impact Long-Term Outcome
Extended Pump Longevity Prevents oil emulsification & component wear Reduced need for pump replacement, lower capital expenditure
Consistent Vacuum Performance Maintains pump’s ability to pull stable vacuum in vaporous conditions Reliable process results, fewer product defects
Reduced Maintenance Costs Fewer oil changes, less component replacement Lower operational expenses, minimized downtime
Enhanced Operational Reliability Prevents unexpected breakdowns, stable system operation Uninterrupted production/research, increased productivity

Final Thoughts

The gas ballast valve is essential for maintaining high-performance vacuum pumps, especially with vapors. Using it correctly extends pump life, ensures efficient operation by preventing oil contamination, and ultimately saves on maintenance and replacement costs.
