What is a dry rotary vane vacuum pump?

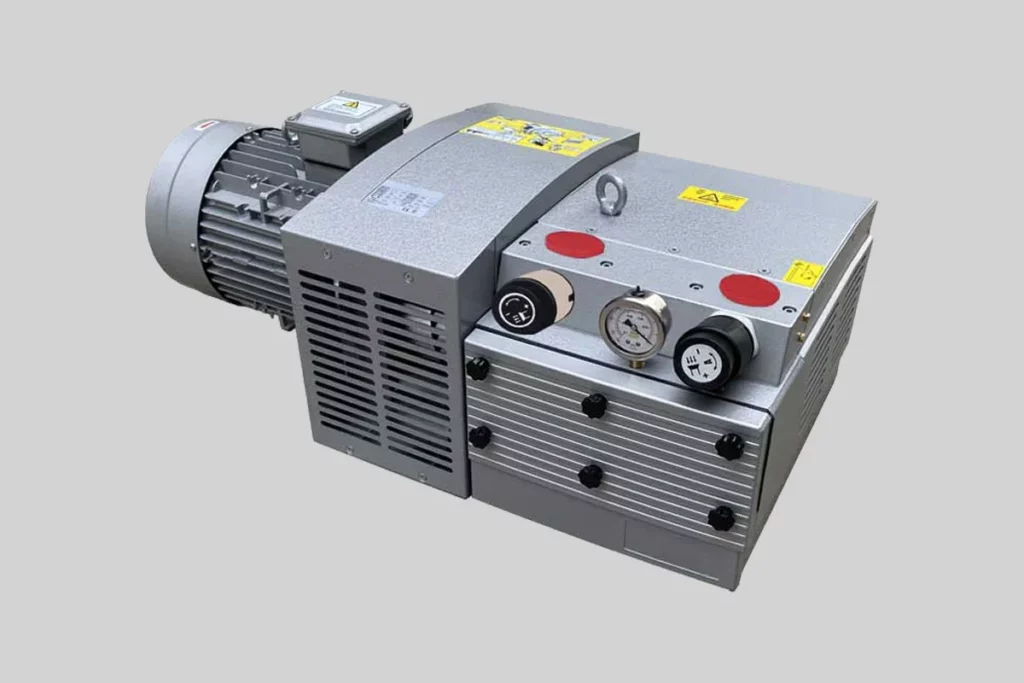

dry vacuum pump China

Working Principle

Keyword: Dry vacuum pump China

The dry rotary vane vacuum pump operates on a simple yet effective principle, exactly the same as that of oil-sealed rotary vane vacuum pump.

The pump consists of a cylindrical rotor with multiple vanes (typically made of carbon), which rotate within an eccentric housing. The pump’s operation begins when the vanes make contact with the housing walls. As the rotor rotates, the vanes create chambers between themselves and the housing. These chambers gradually increase in volume, drawing gas or air from the inlet port. Subsequently, the expanding chambers trap the gas and transport it towards the outlet port. The action of the vanes against the housing creates airtight seals, enabling the pump to maintain a vacuum within the system.

Applications of Dry Vacuum Pump

Dry rotary vane vacuum pumps find extensive application across a wide range of industries and sectors due to its oil-free advantage and reliability. Some notable applications include:

  • Vacuum engraving machines for woodworking
  • Capsule filling, capsule printing, conveying, vacuum drying and packing in pharmaceutical machines
  • Vacuum suction, bag opening, and material loading on automatic packaging lines
  • Vacuum suction in printing machines
  • High-speed vacuum filling of various liquid injection bottles
  • Vacuum molding of various plastic products
  • Vacuum suction and sticking of carton and bottle labels
  • Vacuum transportation of glass and other thin sheet parts
  • Vacuum fixation for photolithography
  • Vacuum clamping fixtures on various automated production lines
  • Food processing machines
  • Balance testing of various centrifugal machines operating at high speeds in a vacuum state
  • Vacuum suction in hospital operating rooms
  • Vacuum milking in dairy farms

Advantages and Benefits

  1. Oil-Free and Contamination-Free Operation: One of the most significant advantages of dry rotary vane vacuum pumps is their oil-free operation. By eliminating the need for oil lubrication, these pumps ensure a clean and contamination-free vacuum environment. This feature is particularly crucial in sensitive applications such as semiconductor manufacturing, pharmaceutical production, and food processing, where even trace amounts of oil can lead to product degradation or equipment malfunction.
  2. Reduced Maintenance and Operational Costs: Dry rotary vane pumps offer a lower total cost of ownership compared to oil-lubricated pumps. With no oil changes and disposal concerns, maintenance efforts are significantly reduced.
  3. Environmental Friendliness: Dry rotary vane pumps contribute to environmental sustainability by eliminating the use of oil and reducing waste generation. They eliminate the need for oil recycling or treatment processes, reducing the overall carbon footprint. Compared to liquid ring vacuum pumps, dry pumps eliminate the need for water and prevent serious water wastage.
  4. Versatility and Adaptability: Dry rotary vane pumps offer versatility in handling various gases, including corrosive and flammable ones. With the ability to select materials compatible with specific applications, these pumps can be tailored to meet the unique requirements of different industries. This adaptability makes them suitable for diverse applications such as chemical processing, laboratory research, and environmental monitoring.
  5. Robust and Durable Construction: Dry rotary vane vacuum pumps are built with robust materials and construction, ensuring durability and long service life. Their sturdy design and absence of oil-related wear extend their operational lifespan, providing reliable performance over an extended period. This reliability translates into cost savings and increased operational efficiency for businesses.
  6. Ease of Installation and Operation: Dry rotary vane pumps are relatively easy to install and operate. They typically come as self-contained units, requiring minimal assembly and setup. The user-friendly interfaces and controls simplify operation for technicians and operators, minimizing the learning curve and ensuring efficient usage.

While dry rotary vane vacuum pumps offer advantages such as a clean production environment and reduced maintenance needs, it’s also important to consider their limitations. These include lower vacuum levels compared to oil-sealed vacuum pumps and a tendency to generate more noise during operation. Evaluating these factors is crucial when choosing the right vacuum pump for specific applications.
