Motor overheating can quickly destroy your vacuum pump. Protect your investment and prevent costly downtime. A PTC thermistor is a crucial, yet often overlooked, safeguard.
A vacuum pump motor should have a PTC thermistor because it provides reliable, direct thermal protection by detecting excessive winding temperatures. This proactive monitoring helps prevent motor damage, extends equipment lifespan, and ensures safe operation by shutting down the motor before critical overheating occurs.
From my decade in the vacuum pump industry, I have seen motors fail countless times due to overheating. It is a common, expensive problem. Understanding the vital role of a PTC thermistor goes beyond just preventing breakdowns. It is about smart, proactive motor management that impacts your entire operation.

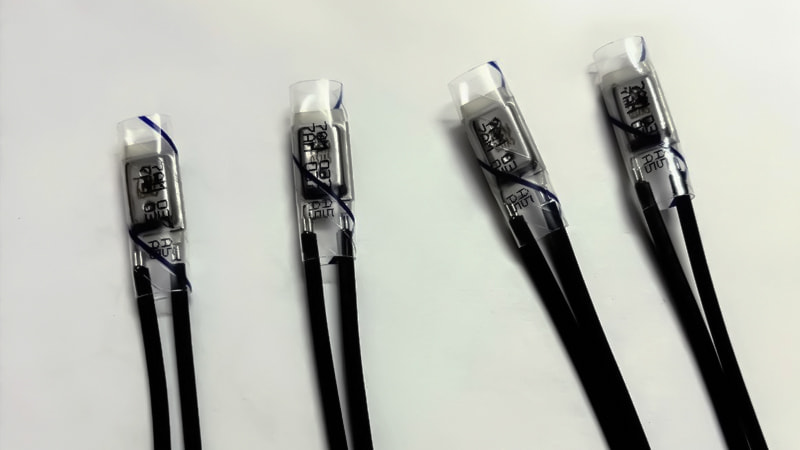

What is a PTC thermistor and how does it protect a motor?
Ever wondered how some motors magically shut down before burning out? The secret often lies within. A PTC thermistor is a small, mighty sensor making a big difference.
A PTC (Positive Temperature Coefficient) thermistor in a motor is a temperature-sensitive resistor whose electrical resistance dramatically increases at a specific threshold temperature. When embedded directly into motor windings, this rapid resistance change signals to a control circuit that the motor is overheating, triggering a shutdown for immediate protection.
In my experience, understanding the simplicity and effectiveness of a PTC thermistor is key to appreciating its value. PTC stands for Positive Temperature Coefficient, meaning its resistance increases as its temperature increases. Unlike linear resistors, a PTC thermistor exhibits a sharp, non-linear jump in resistance once it reaches a certain predetermined temperature, known as its reference temperature or switching point. This specific property makes it ideal for protective applications.
When a PTC thermistor is embedded directly into the copper windings of a vacuum pump motor, it is positioned to detect the hottest spots. If the motor begins to overheat due to overload, insufficient cooling, or other issues, the temperature of the windings rises. As this temperature reaches the thermistor's critical switching point, its resistance rapidly soars from a few hundred ohms to thousands or even millions of ohms. This dramatic increase in resistance is then detected by a small, dedicated electronic control unit connected in series with the thermistor.
The control unit interprets this sudden resistance change as an overheating event and immediately trips a relay or contactor, cutting power to the motor and preventing thermal damage. This direct, fast response provides a crucial layer of protection, preventing the motor's insulation from breaking down, which would lead to costly repairs or replacement.
PTC Thermistor in Motor Protection: Key Aspects
| Aspect | Description | Benefit to Motor Protection |
|---|---|---|
| Location | Embedded directly in motor windings (hottest points) | Direct, accurate measurement of core temperature |
| Resistance Change | Sharp, non-linear increase at threshold temperature | Acts like a precise thermal switch, rapid signal |
| Response Time | Very fast due to small size and direct contact | Enables quick shutdown, prevents critical damage |
| Integration | Connects to a dedicated control relay/unit | Automated, reliable protection without human intervention |
Why is a PTC thermistor the preferred sensor for motor protection?
With various temperature sensors available, why is one particular type chosen for motor protection? The specific needs of motors demand a unique response for effective safeguarding.
For robust motor protection, a Positive Temperature Coefficient (PTC) thermistor is predominantly used because of its unique, sharp, non-linear increase in resistance once a predetermined temperature limit is reached. This distinct characteristic makes it highly effective for directly triggering immediate thermal shutdown circuits, precisely safeguarding motor windings against damaging overheating.

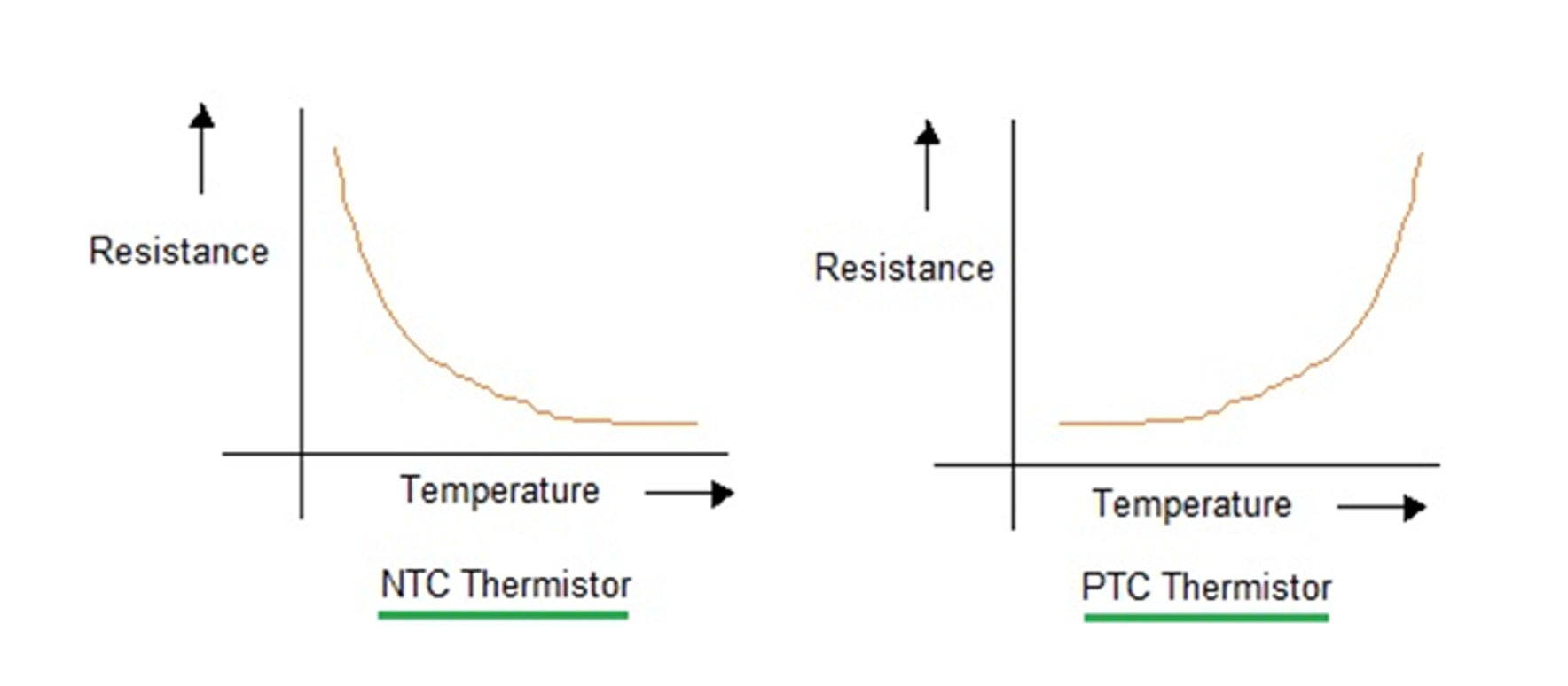

My expertise confirms that not all temperature sensors are created equal for motor protection. While NTC (Negative Temperature Coefficient) thermistors and RTDs (Resistance Temperature Detectors) are also sensitive to temperature, their characteristics make them less ideal for simple, reliable thermal cutoff.
An NTC thermistor's resistance decreases as temperature increases, and this change is also non-linear but continuous. While NTCs are excellent for continuous temperature monitoring and control, their gradual change makes them less suitable for triggering a precise, hard shutdown at a specific critical temperature without more complex circuitry. RTDs, such as Pt100 or Pt1000 sensors, are highly accurate and provide a nearly linear resistance change with temperature. They are often used for precise temperature measurement and control in more sophisticated motor management systems.
However, RTDs are typically more expensive, physically larger, and have a slower thermal response time compared to PTC thermistors, making them less suited for rapid, direct protection at the winding level in most standard motor applications. The "switch-like" behavior of a PTC thermistor is its main advantage. It acts like a digital signal, essentially turning "on" (high resistance) when the danger temperature is reached, allowing for a simple and reliable tripping mechanism that directly protects the motor's insulation, which has a specific maximum temperature tolerance (e.g., Class F insulation tolerates higher temperatures than Class B).
Sensor Comparison for Motor Protection
| Sensor Type | Principle | Resistance-Temp Curve | Motor Protection Suitability | Primary Application |
|---|---|---|---|---|
| PTC Thermistor | Resistance sharply increases at specific temp | Sharp "knee" point | Excellent: precise, fast, direct shutdown | Over-temperature protection |
| NTC Thermistor | Resistance decreases with increasing temp | Continuous, non-linear | Less ideal: better for measurement/control | Temperature measurement, control |
| RTD (e.g., Pt100) | Resistance increases linearly with temp | Linear | Good for precision, but slower & costlier | Accurate temperature monitoring |
How do you choose the right PTC thermistor for your vacuum pump motor?
Picking the right PTC thermistor for your vacuum pump motor might seem complex. The wrong choice could compromise protection, leading to costly damage. I will simplify the selection process for you.
Choosing a PTC thermistor for a vacuum pump motor involves matching its nominal switching temperature (Rref) to the motor's insulation class and its maximum permissible winding temperature. Additionally, selecting based on resistance tolerance, ensuring it meets environmental and voltage requirements, and considering the number of thermistors needed for comprehensive coverage are crucial for reliable thermal cutoff.
From my experience in sourcing components for vacuum pumps, proper selection of a PTC thermistor is non-negotiable for effective motor protection. The most critical parameter is the Nominal Switching Temperature (T_ref), also sometimes referred to as the reference temperature or activation temperature. This temperature must be chosen to correspond with the motor's insulation class. For instance, a Class B motor's insulation typically tolerates up to 130°C, while a Class F motor can go up to 155°C, and Class H up to 180°C. You would select a PTC thermistor with a switching temperature just below the insulation's maximum permissible temperature to ensure protection before damage occurs.
Beyond the switching temperature, consider the resistance at room temperature (e.g., 25°C), which impacts the design of the monitoring circuit. The thermistor's maximum operating voltage and current must also be compatible with your motor's control system. Physically, the size and form factor of the thermistor are important, as it needs to fit snugly within the motor windings for accurate temperature sensing. For three-phase motors, it is common practice to embed three PTC thermistors, one in each phase winding, ensuring comprehensive thermal protection across the entire motor. Always consult your vacuum pump or motor manufacturer's specifications for recommended thermistor types and placement to ensure optimal protection.
PTC Thermistor Selection Criteria
| Criterion | Description | Importance for Motor Protection |
|---|---|---|
| Nominal Switching Temp. | Temperature at which resistance sharply increases (T_ref) | Matches motor's insulation class for critical cutoff |
| Motor Insulation Class | Maximum permissible temperature for motor windings (e.g., B, F, H) | Determines the correct T_ref value |
| Resistance (at 25°C) | Baseline resistance for proper monitoring circuit design | Ensures compatibility with control unit |
| Voltage/Current Rating | Maximum voltage and current the thermistor can safely handle | Prevents damage to thermistor and circuit |
| Physical Size/Shape | Dimensions for embedding within tight winding spaces | Ensures proper installation and accurate sensing |
| Number of Thermistors | Typically three for 3-phase motors (one per winding) | Provides comprehensive coverage for each phase |
What are the versatile applications of PTC thermistors beyond motor protection?
While crucial for vacuum pump motor safety, PTC thermistors offer versatile applications far beyond. Their unique properties solve various problems across industries.
Beyond their critical role in motor protection, PTC thermistors are widely applied as self-regulating heaters, overcurrent protection devices (acting as resettable fuses), fluid level sensors, and for temperature compensation in electronic circuits. Their unique positive temperature coefficient allows for stable control and inherent safety features in diverse systems.
My work in industry has shown me that the distinctive behavior of PTC thermistors makes them incredibly useful in many areas beyond just motor safeguarding. One common application is self-regulating heaters. PTC thermistors can be designed to heat up rapidly to a specific temperature. Once that temperature is reached, their resistance sharply increases, which inherently limits the current and thus the heat output. This self-regulating property eliminates the need for complex thermostats or external control circuits, making them ideal for small heaters in automotive applications, hair dryers, or even defogging elements.
Another significant application is overcurrent protection, where PTC thermistors function as resettable fuses. If excessive current flows through them, they heat up due to the current, their resistance rises dramatically, and they limit the current flow, acting as an open circuit. Once the fault is cleared and they cool down, their resistance drops, and they reset, allowing current to flow again, unlike traditional fuses that must be replaced. They are also used in fluid level sensing.
When immersed in liquid, a PTC thermistor cools down and has low resistance. When the liquid level drops and the thermistor is exposed to air, it heats up, and its resistance increases sharply, signaling the fluid level change. I have even seen them used in time delay circuits and for temperature compensation in electronics, demonstrating their broad utility in a wide range of passive and active control systems due to their reliable and predictable temperature-sensitive resistance.
Diverse Applications of PTC Thermistors
| Application | Principle of Operation | Example Use Cases |
|---|---|---|
| Self-Regulating Heaters | Resistance increases with temp, limiting current | Hair dryers, car seat heaters, defoggers |
| Overcurrent Protection | Current heats thermistor, resistance limits current | Resettable fuses in power supplies, battery packs |
| Fluid Level Sensing | Resistance changes based on heat dissipation in air vs. liquid | Washer fluid levels, coolant levels, fuel tanks |
| Temperature Compensation | Compensates for temperature drift in other components | Electronic circuits for consistent performance |
| Time Delay Circuits | Thermal response time provides a delay | Starter circuits, flashing lights |
Final Thoughts
A PTC thermistor is vital for vacuum pump motor longevity and safety. By providing direct thermal protection, it safeguards equipment, prevents costly downtime, and ensures reliable operation, making it an essential component for any serious industrial setup.
