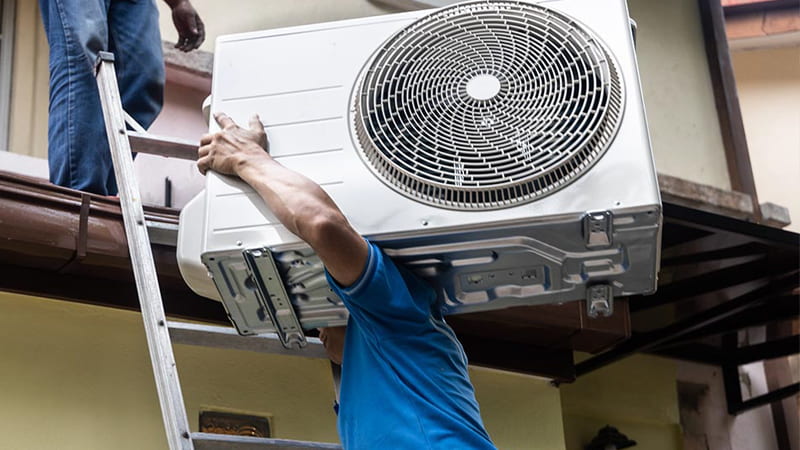

Is your new air conditioner not cooling as expected? Skipping crucial installation steps, like vacuuming, can lead to poor performance and costly damage down the road. I've seen this happen too many times.
Vacuuming your new AC system is absolutely essential. It removes harmful air and moisture. This ensures the refrigerant works correctly, prevents damage, and maximizes your system's efficiency and lifespan, saving you money in the long run.
I've seen many AC systems struggle simply because this vital step was overlooked during installation. It might seem like a small detail to some, but the consequences of not properly evacuating a system can be significant and costly. Let's delve into why this process is so critical for your air conditioner's health and what exactly happens if you decide to skip it or if it's not done thoroughly. Ensuring your system is properly prepared from the very start is key to enjoying years of trouble-free cooling and avoiding unnecessary repairs.
What happens if I don't vacuum my AC system?
Thinking about cutting corners on your AC installation by skipping the vacuuming step? This apparent time-saver can lead to a cascade of problems, resulting in poor cooling, higher energy bills, and ultimately, a much shorter life for your air conditioning unit.
If you don't vacuum an AC system, trapped air and moisture will remain inside the refrigerant lines. This leads to significantly reduced cooling efficiency, potential freezing issues, internal corrosion of vital components, and often, premature system failure.

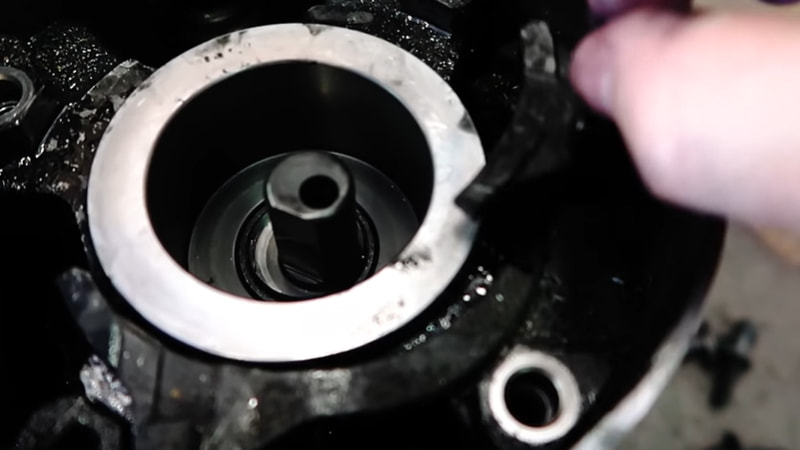

In my years in the HVAC industry, I've seen countless air conditioning units fail much earlier than they should have. Often, when I investigate, the root cause traces back to an improper installation where the vacuuming process was either rushed or, even worse, skipped entirely. When air, which is a non-condensable gas, remains in the refrigerant lines, it really messes with the system's ability to transfer heat efficiently. Imagine your AC trying to cool your house on a scorching day, but it's essentially fighting against itself because of this trapped air. The pressure in the condenser side of the system goes up, forcing the compressor to work much harder than it's designed to. This extra strain not only reduces cooling output but also means your energy bills will be higher.
Even more damaging than air is moisture. Water vapor left inside the system can freeze at the expansion valve or within the small passages of the evaporator coil, creating ice blockages. This restricts the flow of refrigerant and can cause the system to perform erratically or even shut down. Over time, this moisture will mix with the refrigerant and the lubricating oil, forming corrosive acids. These acids are silent killers, slowly eating away at the internal copper tubing and other metal components. I've frequently seen a type of corrosion called "ant nest corrosion" – characterized by tiny, branching pinhole leaks in copper pipes – which can often be directly attributed to moisture left in the system due to inadequate vacuuming.
Key Problems from Not Vacuuming:
- Reduced Cooling Capacity: Air in the system acts like an insulator within the condenser coil. This makes it much harder for the refrigerant to release heat to the outside, so your rooms don't get as cool as they should. The system runs longer but achieves less.
- Increased Energy Consumption: Because the air conditioner has to work harder to overcome the inefficiencies caused by trapped air and moisture, it consumes significantly more electricity. This translates directly to higher utility bills for you.
- System Component Damage and Freezing: Moisture can freeze inside critical parts like the evaporator coils or the metering device (such as a TXV or capillary tube). This can lead to blockages, restricted refrigerant flow, and even physical damage to these components.
- Corrosion and Acid Formation: This is a major one. When moisture reacts with common refrigerants and the specialized oils used in AC systems (like PVE or POE oil), it creates highly corrosive acids. These acids can attack and degrade copper pipes, aluminum coils, and even the delicate windings inside the compressor motor, leading to leaks and eventual compressor failure, which is often the most expensive part to replace.
- Shorter System Lifespan: All these combined issues – increased strain, higher operating temperatures, internal corrosion, and blockages – put immense stress on the entire AC system. This significantly reduces its operational life. You might find yourself needing to replace expensive equipment much sooner than expected if the initial vacuuming isn't done right.
| Consequence | Impact on AC System | Long-Term Effect |
|---|---|---|
| Reduced Efficiency | System struggles to cool; runs longer. | Higher energy bills; increased component wear. |
| Ice Formation | Blocked refrigerant flow; poor cooling output. | Potential damage to evaporator coil; system shutdowns. |
| Corrosion | Acid formation eats away at copper tubing and compressor parts. | Refrigerant leaks; premature compressor failure. |
| Component Stress | Compressor works harder; operates at higher temperatures. | Reduced lifespan of key system components. |
Why does an AC system need to be vacuumed so thoroughly?
Do you think your new AC system is fine even if the vacuuming wasn't very deep or long? Unfortunately, hidden moisture and air act as silent saboteurs of efficiency and longevity. Discover why meticulous evacuation is absolutely critical.
An AC system needs thorough vacuuming to remove virtually every trace of air and, more importantly, moisture. These contaminants disrupt the delicate balance of the refrigeration cycle, significantly reduce cooling power, and can cause serious internal damage like corrosion, ensuring long-term problems and higher operating costs.
The main reason we vacuum an AC system so thoroughly, aiming for very low micron levels, is to create an almost perfectly pure environment for the refrigerant to do its work. Refrigerants are amazing chemicals, specifically engineered to change from a liquid to a gas (absorbing heat) and back to a liquid (releasing heat) at very precise temperatures and pressures. If air or moisture is present, these ideal conditions are severely disrupted. Air, being a non-condensable gas, takes up valuable space within the condenser. This reduces the surface area available for the refrigerant to release heat to the outside air, effectively insulating the condenser. This, in turn, raises the system's head pressure and temperature, forcing the compressor to work harder, consume more electricity, and ultimately wear out faster.
Moisture is an even more destructive contaminant. Modern air conditioning systems frequently use Polyolester (POE) oil or Polyvinyl Ether (PVE) oil for lubrication. These oils are highly hygroscopic, which means they readily absorb water from their surroundings. When water mixes with these specialized oils and the refrigerant, it can form a cocktail of harmful acids. I've seen firsthand how these acids can etch away at copper pipes and even damage the delicate insulation on the windings inside the compressor motor. This can lead to electrical shorts and a catastrophic compressor burnout, which is often one of the most expensive repairs. Vacuuming removes air and moisture, ensuring the refrigerant operates as intended and maintaining optimal efficiency. A deep, thorough vacuum ensures we boil off and remove even the smallest, most stubborn traces of water vapor, safeguarding the system from these hidden and insidious dangers.
Critical Reasons for Deep Vacuuming:
- Complete Removal of Non-Condensable Gases: This primarily refers to atmospheric air, which contains nitrogen and oxygen. These gases cannot condense along with the refrigerant in the condenser. Their presence reduces the system's heat exchange efficiency and significantly increases operating pressures and temperatures.
- Thorough Dehydration of the System: Removing all water vapor is arguably the most critical aspect. Moisture can freeze at the refrigerant metering device (like a TXV or capillary tube), causing flow blockages. More critically, it reacts chemically with refrigerant and lubricating oil to form highly corrosive acids.
- Ensuring Refrigerant Purity and Performance: A properly and thoroughly evacuated system ensures that only the specified refrigerant and its compatible lubricating oil are present within the closed loop. This allows the system to operate precisely according to its design parameters for temperature and pressure.
- Preventing Chemical Degradation and Sludge Formation: By eliminating the primary ingredients for harmful chemical reactions (air and moisture), thorough vacuuming helps prevent the breakdown of both the refrigerant and the lubricating oil, preserving their essential properties and preventing the formation of sludge that can clog small passages.
| Contaminant | Effect if Not Removed Thoroughly | Benefit of Thorough Vacuuming |
|---|---|---|
| Air | Increased head pressure, reduced cooling, system strain | Optimal operating pressures, efficient heat transfer. |
| Moisture | Freezing, acid formation, corrosion, oil breakdown | No ice blockages, no internal corrosion, stable oil. |
| Other Non-condensables | Inefficient operation, potential system damage | Clean system for optimal refrigerant performance. |
What is the specific purpose of evacuating an AC system?
Are you wondering what "evacuating" or "vacuuming" an air conditioning system actually accomplishes beyond just "sucking air out"? It's a fundamental and precise procedure for a very good reason.

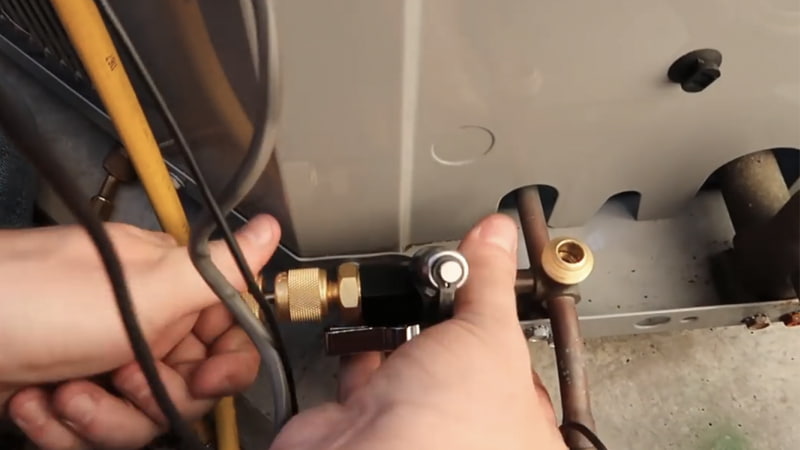

The specific purpose of evacuating an AC system is to create a near-perfect vacuum within the refrigerant piping and components. This process removes all air, moisture, and any other non-condensable contaminants before charging the system with refrigerant, ensuring a clean, dry environment for efficient and long-lasting operation.
When I explain the purpose of evacuation to new technicians, I often compare it to preparing a pristine canvas before an artist begins to paint. You need a clean, pure surface to achieve the best results. Similarly, the internal pathways of an air conditioning system—the copper lines, the evaporator coil, and the condenser coil—must be as clean and, crucially, as dry as possible before the refrigerant is introduced. "Evacuation" involves using a specialized vacuum pump to drastically lower the pressure inside the entire sealed refrigerant circuit. This reduction in pressure causes any water present within the system to boil and turn into vapor, even at normal outdoor temperatures. This water vapor, along with any trapped air or other undesirable gases (like nitrogen if it was used for pressure testing), is then effectively pumped out and expelled by the vacuum pump.
This meticulous process achieves several critical objectives. Firstly, it guarantees that the only substances circulating within the system, apart from the necessary compressor oil, will be the refrigerant itself. This allows the refrigerant to change state (evaporate and condense) efficiently, absorbing heat from your indoor space and releasing it outdoors, just as it's designed to do. Secondly, by diligently removing all traces of moisture, we prevent the formation of ice particles that can block tiny, critical orifices, such as those found in Thermostatic Expansion Valves (TXVs) or capillary tubes, which regulate refrigerant flow. Thirdly, and perhaps most importantly for long-term reliability, it eliminates the water that could otherwise react with the refrigerant and the system's lubricating oil to form highly corrosive acids. These acids are a primary culprit in internal system degradation, leading to leaks and eventual compressor failure. Vacuuming removes air and moisture, ensuring the refrigerant operates as intended and maintaining optimal efficiency.
Core Objectives of Evacuation:
- Dehydration: This is the primary objective. By lowering the system pressure significantly (to below the boiling point of water at ambient temperature), any liquid water or water vapor trapped inside the system will boil off and be removed by the vacuum pump.
- Degassing: This involves removing all air (which is mostly nitrogen and oxygen) and any other non-condensable gases that may have entered the system during installation, repair, or from previous contamination. These gases hinder heat transfer and raise system pressures.
- Leak Confirmation (as a Preliminary Check): While not a substitute for a proper nitrogen pressure test, a system that fails to pull down to a deep vacuum, or cannot hold a vacuum once achieved, very likely has one or more leaks that must be addressed before charging.
- System Integrity and Preparation for Charging: Evacuation ensures the system is completely free of contaminants before the precise, factory-specified amount of refrigerant is weighed in. This is crucial for achieving the correct operating pressures and temperatures.
| Objective | Technical Reason | Desired Outcome |
|---|---|---|
| Boil Off Water | Water's boiling point decreases significantly as pressure drops to deep vacuum levels. | Complete removal of all liquid and vaporous moisture. |
| Remove Air | Air is non-condensable; its presence reduces condenser efficiency and raises operating pressures. | Optimal refrigerant condensation and correct system pressures. |
| Clean System | Removes any residual manufacturing debris, flux from brazing, or other fine particulates from opened lines. | Prevents blockages in small orifices or damage to moving parts. |
| Ensure Integrity | Allows for a proper "standing vacuum test" (decay test) to verify the system is hermetically sealed. | High confidence that the system is tight and free from leaks. |
How long should you really vacuum an AC system?
Are you unsure about the right amount of time to let your vacuum pump run when evacuating an AC system? It's a common question, and the answer is more nuanced than just setting a timer. Getting this wrong, either too short or unnecessarily long, can impact your system.

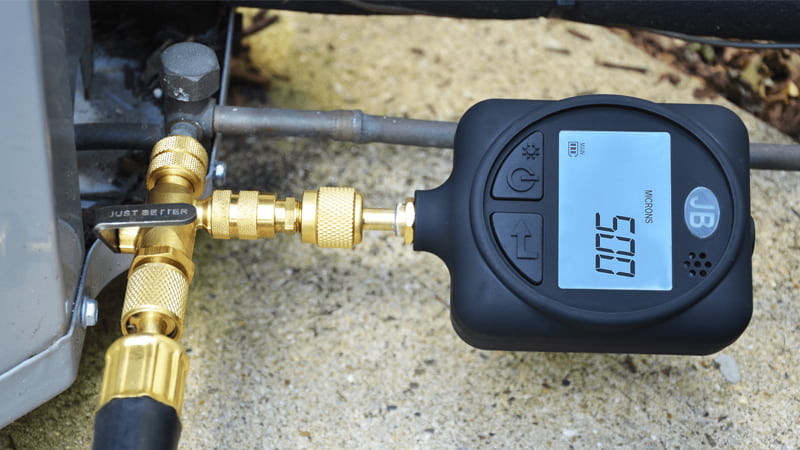

You should vacuum an AC system until it consistently reaches a deep vacuum level, typically 500 microns (0.5 Torr) or lower, and crucially, holds that vacuum after the pump is isolated. The actual time this takes can vary significantly based on system size, pump capacity, hose configuration, and ambient conditions; it's about achieving the target micron reading, not just the clock.
This is a question I get asked very frequently, and the truth is, there's no universal "one-size-fits-all" answer in terms of minutes or hours. The correct duration for vacuuming an AC system is determined by achieving a specific, measurable target: a deep vacuum level, typically 500 microns of mercury or lower. I always emphasize the importance of using a good quality electronic micron gauge for this critical measurement. The analog compound gauge on your manifold set is simply not accurate enough for verifying a deep vacuum. Once you achieve that 500-micron target (and some afor even lower for best practice, say down to 250-300 microns for extra assurance), the job isn't quite finished. The next crucial step is to perform a standing vacuum test, also known as a decay test. This involves isolating the system from the vacuum pump by closing the valve on the pump or manifold, and then carefully watching the micron gauge reading for a period, usually around 15 to 30 minutes.
If the vacuum level holds steady or rises only very slightly (for instance, less than 100-200 microns from your achieved target) during this standing test, it's a good indication that the system is both tight (leak-free) and dry (moisture has been removed). However, if the pressure rises quickly and significantly, it signals either a leak somewhere in the system or that there's still moisture present that is continuing to boil off. The actual time it takes to reach the target vacuum level and pass the decay test can vary widely. A small residential split system might be successfully evacuated in 30 minutes to an hour with an appropriately sized pump and good, clean hoses. Conversely, a larger commercial refrigeration system could take many hours, or even overnight in some cases. Factors that heavily influence this duration include the total internal volume of the system, the CFM (Cubic Feet per Minute) rating of your vacuum pump, the diameter and length of your vacuum hoses (shorter, wider diameter hoses are vastly superior!), and even the ambient temperature (warmer conditions generally help moisture to vaporize more readily). It's a process that demands patience and precision, not just rushing to meet a time on a clock.
Factors Determining Vacuum Duration:
- Target Vacuum Level: The industry standard is generally 500 microns, but many professionals aim for even lower levels (e.g., 250-300 microns) to ensure maximum moisture removal.
- System Size (Internal Volume): Larger systems inherently contain more air and have a greater internal surface area where moisture can adhere, thus requiring longer pump run times.
- Vacuum Pump Capacity (CFM): A pump with a higher CFM rating will displace air and vapor more quickly. For most residential AC systems, a pump rated between 4 to 8 CFM is typically adequate. Larger commercial systems may necessitate pumps with significantly higher CFM ratings.
- Hose Size, Length, and Condition: Using large-diameter (e.g., 3/8-inch or 1/2-inch), short, dedicated vacuum-rated hoses with valve core removal tools can dramatically reduce evacuation times. Leaks in hoses or connections will prevent achieving a deep vacuum or make it appear as if the system is still wet.
- Ambient Temperature and Initial Moisture Content: Warmer ambient temperatures help moisture within the system to vaporize more easily. A system that is known to have been exposed to significant moisture (e.g., a line set left open) will naturally take much longer to dehydrate.
| Factor | Influence on Time | Recommendation for Efficiency |
|---|---|---|
| Micron Gauge Reading | This dictates when to stop. | Always use an accurate electronic micron gauge, not manifold gauges. |
| Standing Vacuum Test | Confirms system dryness & integrity. | Isolate pump and monitor for at least 15-30 minutes. |
| System Size/Volume | Larger system = longer time. | Be patient; do not rush the process on larger installations. |
| Pump & Hose Setup | Efficient setup = shorter time. | Invest in good quality, appropriately sized vacuum pump and large-diameter, short hoses. Use core removal tools. |
| Initial Contamination | High moisture/air = longer. | For very wet systems, consider a triple evacuation or nitrogen sweep. |
Conclusion
Properly vacuuming your AC is not just a best practice; it is absolutely essential for its future performance. It guarantees efficiency, prevents costly internal damage, and ensures your air conditioner serves you well for its full intended lifespan.
