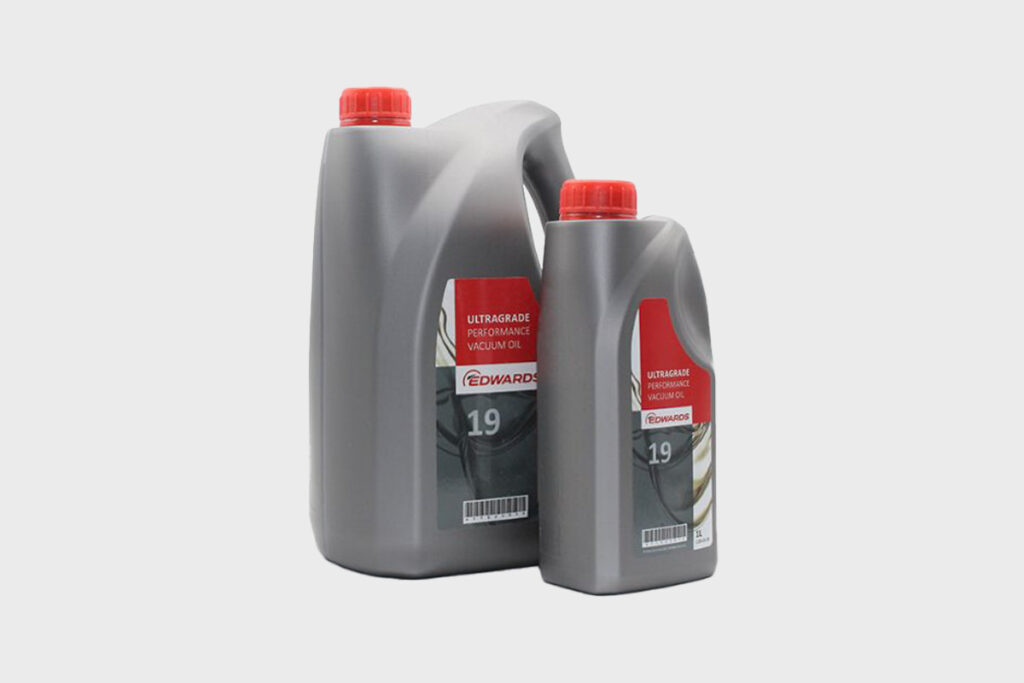

Is your vacuum system underperforming or failing prematurely? The often-overlooked properties of your vacuum pump oil could be the silent culprit, directly affecting efficiency and longevity. I've seen this costly oversight many times.

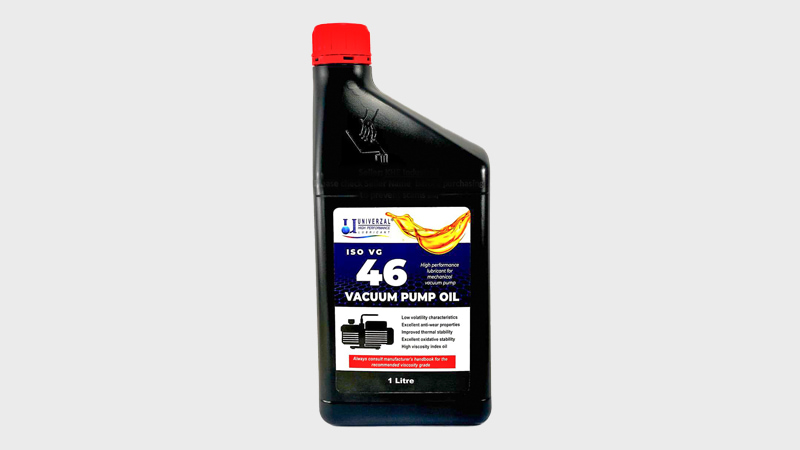

Vacuum pump oil properties, especially viscosity, vapor pressure, and chemical stability, directly dictate sealing effectiveness, lubrication, heat transfer, and ultimately, the depth and stability of the vacuum achieved, as well as the pump's lifespan.
The optimization of vacuum performance truly hinges on a meticulous evaluation of vacuum pump oil characteristics. It's not just "oil"; it's a critical component engineered to perform under demanding conditions. Many users don't realize how significantly the right oil—or the wrong oil—can influence everything from energy consumption to the ultimate vacuum level. I often emphasize to my clients that understanding these oil parameters is a key step towards maintaining and enhancing their vacuum systems with precision and confidence. Let's explore exactly how these properties work and why they matter so much.
What does the oil in a vacuum pump do?
Ever wondered what role the oil actually plays inside that hardworking vacuum pump? It's far more than just a simple lubricant; it's a multi-talented fluid essential for the pump's core functions.
In an oil-sealed vacuum pump, the oil performs several critical functions: it creates seals between moving parts for vacuum integrity, lubricates these parts to reduce wear, helps dissipate heat generated during compression, and protects internal components from corrosion.
When I explain the function of vacuum pump oil, I like to break it down into its primary roles because each one is vital for the pump to achieve and maintain vacuum. First and foremost, the oil creates crucial seals. In a rotary vane pump, for instance, the oil forms a thin film between the tips of the vanes and the cylinder wall, as well as between the rotor and endplates. These seals are what prevent gas from leaking back from the high-pressure side (exhaust) to the low-pressure side (inlet), which is fundamental to pulling a vacuum. Without effective sealing, the pump simply can't reach its specified vacuum level.
Secondly, lubrication is essential. There are many precision-machined parts moving at high speeds inside a vacuum pump. The oil provides a protective film that minimizes friction and wear between these components, such as vanes, rotors, bearings, and shafts. This not only extends the life of the pump but also reduces the energy required to run it. Thirdly, the oil acts as a coolant. The process of compressing gas generates a significant amount of heat. The circulating oil absorbs this heat from the pump mechanism and transfers it to the pump casing, where it can be dissipated to the surrounding environment. Finally, the oil provides a protective barrier against corrosion for the internal metal surfaces, especially if the pump is handling gases that might contain moisture or mildly corrosive elements.
Key Roles of Vacuum Pump Oil:
- Sealing: Creates a dynamic seal between the moving parts (e.g., vanes and cylinder, rotor and endplates) to prevent internal leakage and enable the pump to achieve and maintain its target vacuum level. This is perhaps its most critical vacuum-specific role.
- Lubrication: Reduces friction and wear between all moving components within the pump, such as bearings, vanes, rotors, and shafts. This extends the operational lifespan of the pump and minimizes energy consumption due to friction.
- Heat Dissipation (Cooling): Absorbs the heat generated by the compression of gas and the friction of moving parts. The oil then transfers this heat to the pump housing, which dissipates it to the atmosphere, helping to maintain stable operating temperatures.
- Corrosion Protection: Forms a protective film on internal metal surfaces, safeguarding them against rust and corrosion, especially when pumping gases that may contain moisture or other slightly corrosive contaminants.
- Flushing Contaminants: Helps to collect and flush away small wear particles or contaminants that might enter the pump, keeping critical clearances clean. This function is aided by oil filtration systems in some pumps.
| Oil Function | Importance to Pump Performance | Consequence if Function Fails |
|---|---|---|
| Sealing | Essential for achieving and holding deep vacuum levels. | Poor ultimate vacuum, slow pump-down, inability to reach target. |
| Lubrication | Prevents premature wear, reduces friction and energy use. | Increased wear, pump seizure, higher power consumption, noise. |
| Heat Dissipation | Maintains stable operating temperature, protects oil and components. | Overheating, oil degradation, reduced pump life, potential seizure. |
| Corrosion Protection | Preserves integrity of internal metal parts. | Rust, component damage, leaks, shortened pump lifespan. |

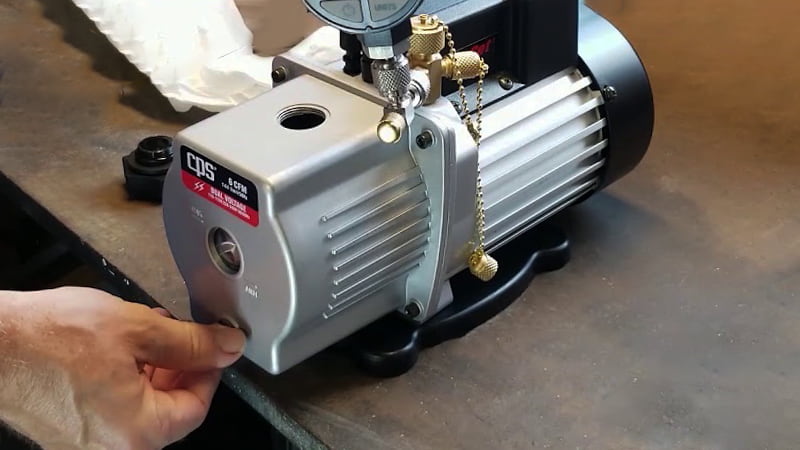

Why is it important to change vacuum pump oil?
Many users know they should change their vacuum pump oil, but do you truly understand why this maintenance step is so absolutely critical for performance and pump longevity? Neglecting it is a costly mistake.

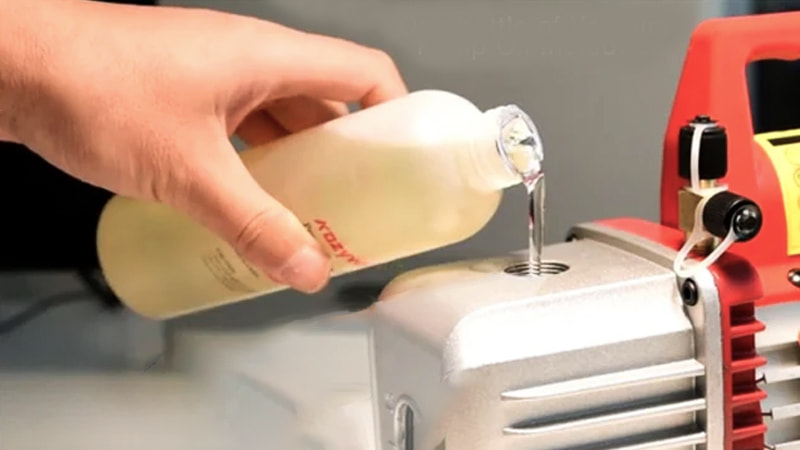

Changing vacuum pump oil is vital because, over time, the oil becomes contaminated with moisture, process byproducts, and particulates, and it also thermally degrades. This degradation reduces its ability to seal, lubricate, and cool effectively, leading to poor vacuum performance and premature pump failure.
I've seen far too many vacuum pumps suffer premature death due to neglected oil changes. It's one of the simplest yet most impactful maintenance tasks. Think of the oil as the lifeblood of your oil-sealed pump. As it circulates, it's constantly exposed to the gases being pumped, which can include water vapor, solvents, dust, and other process-related contaminants. Water vapor is a common enemy; it emulsifies with the oil, turning it milky and significantly raising its vapor pressure. A high vapor pressure oil cannot achieve a deep vacuum. Particulates act like an abrasive, accelerating wear on precision components. Chemical contaminants can break down the oil's molecular structure, reducing its viscosity and lubricity.
Furthermore, the heat generated during compression causes thermal degradation of the oil over time. It oxidizes and forms sludge and varnish deposits. My insights specifically highlight that neglecting regular oil changes can lead to severe issues like emulsification (oil mixing with water) and carbonization (oil breaking down into hard carbon deposits). These problems can result in severe consequences such as pump cylinder wear, blockage of oil passages and filters, and a significant decline in vacuum levels. If the oil mist separator becomes obstructed by degraded oil byproducts, trapped gases within the pump can disrupt its performance, causing elevated internal pressure, reduced pumping speed, and compromised vacuum. Therefore, timely and thorough vacuum pump oil replacement isn't just recommended; it's imperative as part of routine maintenance to prevent these serious issues and ensure your pump continues to operate at its optimal performance.
Consequences of Not Changing Oil:
- Loss of Sealing Capability: Contaminated oil, especially with water, has a higher vapor pressure. This directly limits the ultimate vacuum the pump can achieve because the oil itself starts to "boil off" at lower pressures.
- Reduced Lubrication: Particulates and sludge in the oil act as abrasives, accelerating wear on vanes, bearings, and the cylinder wall. Degraded oil also loses its film strength, leading to metal-to-metal contact.
- Overheating: Sludgy, dirty oil is less effective at transferring heat. Poor lubrication also generates more frictional heat. This can lead to pump overheating, further accelerating oil degradation and potentially damaging components.
- Corrosion: Moisture and acidic byproducts in old oil can corrode internal metal surfaces, leading to leaks, sticking parts, and reduced pump life.
- Pump Failure: Ultimately, the combination of poor sealing, increased wear, overheating, and corrosion will lead to a catastrophic pump failure, often requiring expensive repairs or complete replacement. Clogged oil lines or filters from sludge can starve parts of lubrication, leading to seizure.
| Problem with Old Oil | Effect on Pump | Visible Sign |
|---|---|---|
| Water Contamination | Poor vacuum, rust, oil emulsification (milky oil). | Oil appears milky or cloudy. |
| Particulate Contamination | Increased wear, scoring of parts, clogged filters. | Oil appears gritty or very dark and opaque. |
| Thermal Degradation | Sludge/varnish formation, increased viscosity (or thinning). | Oil is very dark, tar-like, or has a burnt smell. |
| Chemical Contamination | Corrosion, seal damage, breakdown of oil properties. | Oil may change color, consistency, or smell unusually. |

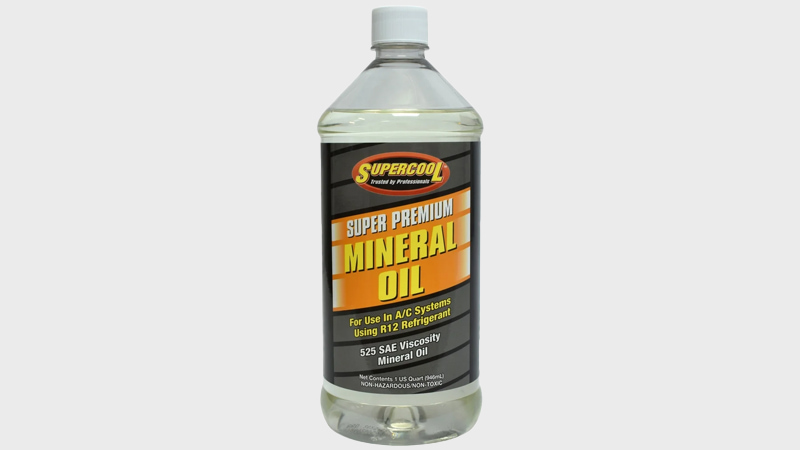

Why is vacuum pump oil used in a vacuum pump instead of refrigerant oil?
You might have different types of oil in your workshop, including refrigerant oil. But is it ever okay to use refrigerant oil in your vacuum pump, or vice versa? The answer is a firm no, and for very good reasons.
Vacuum pump oil is specifically formulated with low vapor pressure, appropriate viscosity, and chemical stability for vacuum applications. Refrigerant oil is designed for compatibility with specific refrigerants and system materials under varying temperatures and pressures within a sealed refrigeration cycle, making it unsuitable for vacuum pump operation.
This is a critical distinction that I always emphasize. While both are "oils," their jobs and the environments they operate in are vastly different, and so are their formulations. The single most important property of vacuum pump oil is its low vapor pressure. Vapor pressure is the tendency of a liquid to evaporate. In a vacuum pump, if the oil has a high vapor pressure, it will evaporate easily as the pressure in the pump drops. This oil vapor then contributes to the gas load the pump is trying to remove, effectively limiting how deep a vacuum the pump can achieve. Good vacuum pump oils are highly refined mineral oils or synthetic oils specifically engineered to have extremely low vapor pressures at typical pump operating temperatures.
Refrigerant oils (like POE, PVE, or mineral oil for older systems) are designed with different priorities. Their primary concerns are miscibility (ability to mix) and compatibility with specific refrigerants, lubrication of compressor parts across a wide temperature range (from very cold evaporators to hot compressors), and chemical stability in the presence of refrigerant. They are not optimized for low vapor pressure in a vacuum environment. Using refrigerant oil in a vacuum pump would likely result in very poor vacuum performance because the refrigerant oil would outgas significantly. Conversely, using vacuum pump oil in a refrigeration system could lead to compatibility issues with the refrigerant, poor lubrication at system extremes, or issues with oil return to the compressor. They are simply not interchangeable, and using the wrong one can lead to rapid failure of the equipment.
Key Differences in Formulation & Purpose:
- Vapor Pressure:
- Vacuum Pump Oil: Must have extremely low vapor pressure to prevent it from evaporating under vacuum and limiting the ultimate pressure. This is its most critical distinguishing feature.
- Refrigerant Oil: Vapor pressure is less critical than its interaction with refrigerants and its performance across wide temperature ranges within a sealed, pressurized system.
- Viscosity & Additives:
- Vacuum Pump Oil: Viscosity is carefully selected for optimal sealing and lubrication at vacuum pump operating temperatures. Additives focus on oxidation resistance and anti-wear properties in an air/gas environment.
- Refrigerant Oil: Viscosity and additives are chosen for compatibility with specific refrigerants, lubrication under refrigerant dilution, and good oil return characteristics in a closed-loop system.
- Chemical Stability:
- Vacuum Pump Oil: Must be stable when exposed to air and various process gases being pumped.
- Refrigerant Oil: Must be stable in the presence of the specific refrigerant it's designed for, often under high pressure and temperature cycling.
- Hygroscopicity (Moisture Absorption):
- Some refrigerant oils (like POE) are highly hygroscopic. While vacuum pump oil should also resist moisture, the design considerations are different.
| Property | Vacuum Pump Oil Focus | Refrigerant Oil Focus |
|---|---|---|
| Vapor Pressure | Extremely Low (essential for deep vacuum) | Moderate (less critical than other properties) |
| Viscosity Index | Stable viscosity across pump operating temps. | Stable viscosity across wide refrigeration cycle temps. |
| Additives | Anti-oxidation, anti-wear, demulsibility. | Refrigerant miscibility, anti-wear with refrigerant, thermal stability. |
| Primary Function | Sealing vacuum, lubricating pump in air/gas. | Lubricating compressor in refrigerant environment, oil return. |
| Environment | Evacuating various gases, often exposed to air. | Sealed system, primarily interacting with refrigerant. |

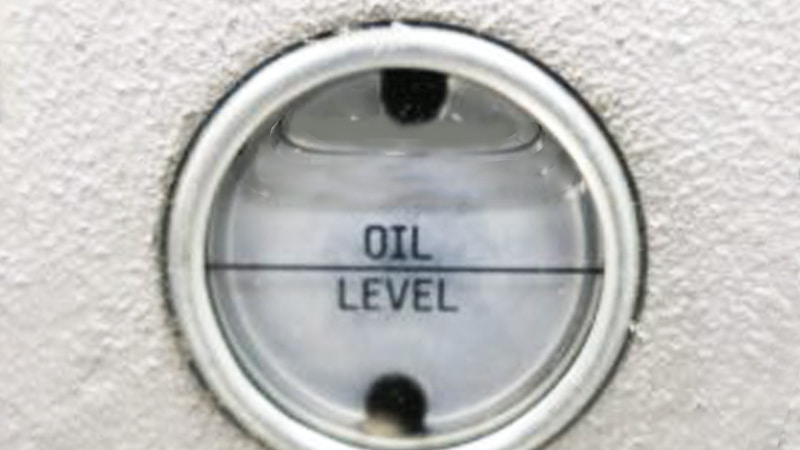

What happens if a vacuum pump has too much oil?
Knowing the correct oil level is crucial, but what are the actual consequences if you accidentally overfill your vacuum pump? It might seem harmless, but too much oil can lead to a host of problems.
If a vacuum pump has too much oil, it can lead to excessive oil misting from the exhaust, increased operating temperature, potential motor overload, oil being forced past seals, and even hydraulic lock or damage to internal components if the overfill is severe.
Overfilling the oil reservoir in a vacuum pump is a common mistake, often made with the good intention of "making sure it has enough." However, vacuum pumps are designed to operate with a specific oil level, usually indicated by a sight glass with minimum and maximum marks. Exceeding the maximum level can cause several issues. One of the most immediate effects I've seen is increased oil misting from the exhaust. The extra oil reduces the internal volume available for air-oil separation, causing more oil to be entrained in the exhaust flow and potentially overwhelming the oil mist eliminator. This not only makes a mess but also wastes oil and can contaminate the work environment.
Furthermore, too much oil can cause the pump to run hotter. The excess oil increases viscous drag on the rotating components, making the motor work harder and generating more heat. This increased load can even lead to motor overload in some cases, potentially tripping thermal protectors or, over time, shortening motor life. If the pump is suddenly stopped and restarted, or if it ingests a slug of liquid from the process while overfilled, the excess oil can create a hydraulic lock situation because liquids are largely incompressible. This can put immense stress on internal components like vanes, rotors, and even the pump housing, potentially causing them to bend, break, or crack. I've also seen cases where extreme overfilling forces oil past shaft seals, leading to external leaks. It's always best to carefully fill to the recommended level on the sight glass when the pump is off and the oil has settled.
Specific Problems Caused by Overfilling:
- Excessive Oil Mist/Carryover: The primary oil separation mechanisms within the pump are designed for a specific oil volume. Too much oil reduces the free space above the oil, leading to more oil droplets being carried out with the exhaust gas, overwhelming the exhaust filter.
- Increased Pump Temperature: The churning of excess oil creates more internal friction and drag, leading to higher operating temperatures. This can accelerate oil degradation and stress pump components.
- Motor Overload and Increased Power Consumption: The motor has to work harder to move the oversized volume of oil, drawing more current and potentially leading to overheating or tripping of overload protection.
- Oil Forced Past Seals: Excessive internal pressure from too much oil can sometimes compromise shaft seals or gaskets, leading to external oil leaks.
- Potential for Hydraulic Lock/Damage: If a significant amount of incompressible oil fills the compression chambers, it can cause severe mechanical stress or breakage of vanes, rotors, or even the pump housing upon startup or during operation.
- Reduced Pumping Efficiency: While counterintuitive, too much oil can sometimes hinder the efficient formation of the necessary sealing films or interfere with gas flow paths, slightly reducing overall pumping efficiency in some designs.
| Consequence of Overfilling | Specific Impact | How to Avoid |
|---|---|---|
| Excessive Oil Misting | Messy environment, oil loss, clogged exhaust filter. | Fill only to the "MAX" line on the sight glass. |
| Pump Overheating | Accelerated oil degradation, component stress. | Adhere to recommended oil level. |
| Motor Strain/Overload | Higher energy use, potential motor damage. | Do not exceed the specified oil capacity. |
| Seal Damage/Leaks | External oil leaks, loss of pump integrity. | Maintain correct oil level. |
| Internal Mechanical Damage | Broken vanes, damaged rotor, cracked housing. | Avoid severe overfilling; check level when pump is off. |

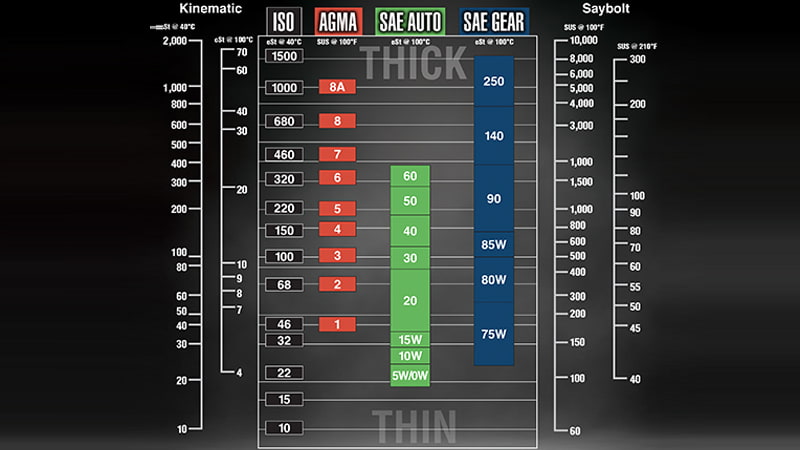

How Does Viscosity Impact Vacuum Pump Performance?
We've mentioned oil properties, but let's focus on one of the most critical: viscosity. How does this "thickness" of the oil really affect your vacuum pump's ability to perform its job effectively?
Oil viscosity, its resistance to flow, critically impacts a vacuum pump's sealing ability, lubrication, and power consumption. Too high, and it increases friction and heat; too low, and it compromises sealing, leading to reduced vacuum performance and increased wear.
Viscosity is a fundamental characteristic of any lubricating oil, and for vacuum pumps, it's a delicate balancing act. As your insights clearly state, higher viscosity increases resistance to the motion of components. This means more energy is lost to internal friction, leading to a higher temperature rise within the pump and increased power consumption by the motor. If the oil is too "thick" for the pump's design and operating speed, it can also struggle to flow quickly into the tight clearances where it's needed for sealing and lubrication, particularly on a cold start.
Conversely, if the oil viscosity is too low (too "thin"), it may not be able to maintain an adequate sealing film between the moving parts, especially as the pump heats up and the oil thins further. This can lead to internal gas leakage from the high-pressure side back to the low-pressure side, directly reducing the pump's ability to achieve its ultimate vacuum and lowering its overall volumetric efficiency. Insufficient film strength from low viscosity oil also means less protection against wear for critical components. The selection of the correct viscosity grade, as recommended by the pump manufacturer, is therefore crucial. These recommendations are based on meticulous engineering considerations, including pump speed, machining precision of components, operating temperatures, and the ultimate vacuum target. For example, higher pump rotational speeds generally necessitate lower viscosity oil to minimize frictional drag, while pumps with less precise machining or larger clearances might benefit from a slightly higher viscosity to ensure adequate sealing.
Principles of Viscosity Selection and Performance Implications:
- Pump Speed and Viscosity: Higher pump rotational speeds generally require lower viscosity oil. This is because a lower viscosity oil creates less internal frictional resistance (drag) at high speeds, leading to lower energy consumption and less heat generation.
- Rotor Linear Velocities and Viscosity: Similar to rotational speed, greater linear velocities of the pump's moving parts (like vane tips) also call for lower viscosity oils to mitigate internal friction and the associated power losses.
- Machining Precision and Viscosity: Pumps manufactured with very high precision and minimal clearances between moving friction components can effectively use lower viscosity oils. Tighter tolerances mean a thinner oil film can still provide adequate sealing and lubrication, while also reducing frictional losses. Conversely, pumps with larger clearances might require a slightly higher viscosity oil to maintain effective seals.
- Temperature Effects on Viscosity: This is a crucial consideration. Oil viscosity decreases (thins) as temperature increases. Therefore, high-temperature operating conditions, or pumps that tend to run hot, generally require an oil with a higher initial (at room temperature) viscosity grade. This ensures that the oil still maintains sufficient film strength and sealing capability when it reaches its normal operating temperature.
- Cooling Water Systems and Viscosity: Vacuum pumps equipped with efficient cooling water circulation systems tend to operate at more stable and often lower temperatures. These conditions can allow for, or even benefit from, the use of lower viscosity oil due to the reduced risk of the oil thinning out excessively.
- Specific Requirements and Viscosity: Ultimately, selecting the appropriate oil viscosity must be based on the vacuum pump manufacturer's specific recommendations for that model. These recommendations consider the pump’s design speed, machining precision, expected operating temperature range, ultimate vacuum target, and any unique operational needs of the intended application.
Your insights provide excellent specific viscosity grade recommendations for different pump types, which I've summarized below for clarity:
| Vacuum Pump Type | Recommended ISO Viscosity Grades (VG) | Typical Rationale |
|---|---|---|
| Piston-type vacuum pumps | 100, 150 | Often larger clearances, slower speeds, may require robust film strength. |
| Rotary vane vacuum pumps (2-Stage) | 68, 100 | Balances sealing for deep vacuum with lubrication needs. |
| Direct-drive rotary vane pumps (2-Stage) | 46, 68 | Often higher speeds than belt-driven, benefit from slightly lower viscosity. |
| Slide valve vacuum pumps (H-type) | 68, 100 | Similar to rotary vane, requiring good sealing and lubrication. |
| Roots vacuum pumps (mechanical boosters) | 32, 46 (for gear housing) | Lubricates gears and bearings, not in the vacuum path; lower viscosity for gears. |
Closing Summary
Vacuum pump oil properties, especially viscosity and purity, are paramount. Correct oil selection and timely changes directly ensure optimal vacuum performance, protect your pump, and extend its operational life effectively.
