You're looking at your old, reliable R-22 gauges and an R-410A system. It's tempting to think you can make it work, but this is one of the most dangerous and costly mistakes a technician can make.

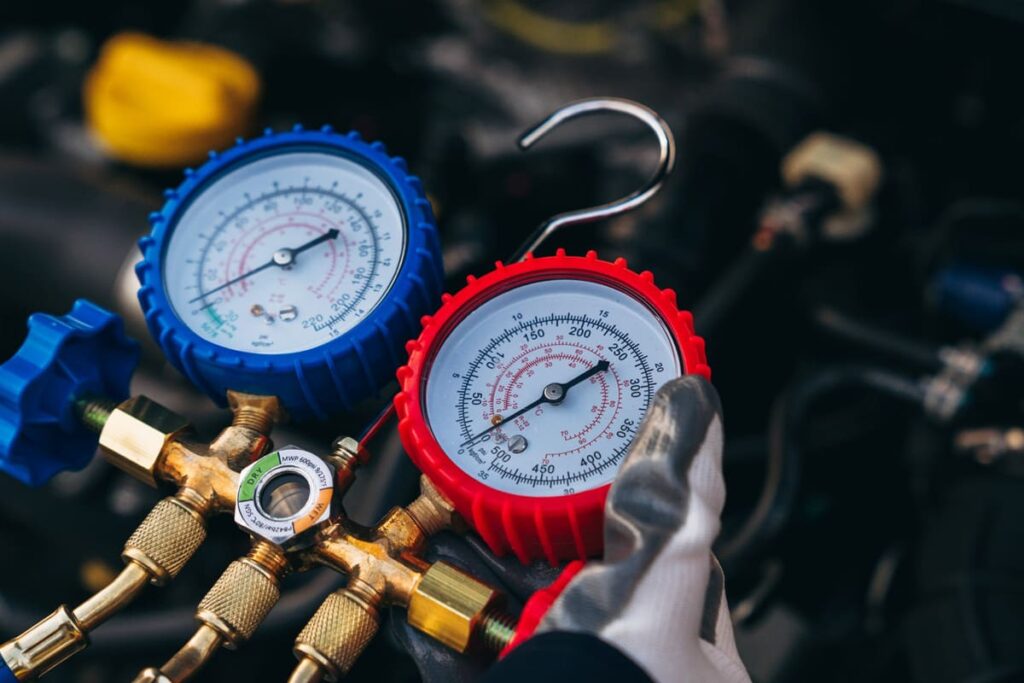

You need different gauges because R-410A operates at pressures 50-60% higher than R-22. Using a low-pressure R-22 gauge on a high-pressure R-410A system can cause a catastrophic failure, rupturing the gauge and spraying refrigerant and oil.
The transition from R-22 to R-410A was a major turning point for tool safety in our industry. It forced the entire trade to upgrade its equipment for one simple reason: pressure. The old tools were simply not built to handle the significantly higher operating pressures of the new refrigerant. Thinking you can "get by" with the old set is not just bad practice; it's a gamble with your equipment, your safety, and your client's expensive system. Let's break down exactly why this is non-negotiable.
Is there a difference between R-410A and R-410a?
You see "R-410A" and "R-410a" used online and worry they are different chemicals. Using the wrong one could damage your system, but the answer is simple.
No, there is no difference in the chemical itself. "R-410A" with a capital 'A' is the official industry designation from ASHRAE. "R-410a" is a common but incorrect typo. Both terms refer to the exact same high-pressure refrigerant.
As an industry expert, I stress the importance of precision. The standards for refrigerant nomenclature are set by ASHRAE (American Society of Heating, Refrigerating and Air-Conditioning Engineers) to prevent any confusion. The numbering system is very specific. The "400 series" indicates a zeotropic blend of multiple refrigerants. The letter suffix—always a capital by convention—differentiates between blends with the same components but different percentages (e.g., R-404A).
So, while you might see "R-410a" written casually online or in forums, it is technically incorrect. A professional will always write and refer to it by its official designation, R-410A. This ensures they are using the correct pressure-temperature charts and service procedures. For all practical purposes, however, if you see the lowercase 'a', you can be confident the person is referring to the same substance. The key is the number "410."
Do you need different gauges for different refrigerants?
You see manifold gauges with scales for both R-22 and R-410A. This makes it confusing—are they truly universal, or is there a hidden catch you're missing?
The critical factor is the gauge's pressure rating, not just its temperature scales. An R-410A rated "combo" gauge can handle the pressure of both, but the biggest risk is cross-contamination of oils, which is why dedicated gauges are the professional standard.

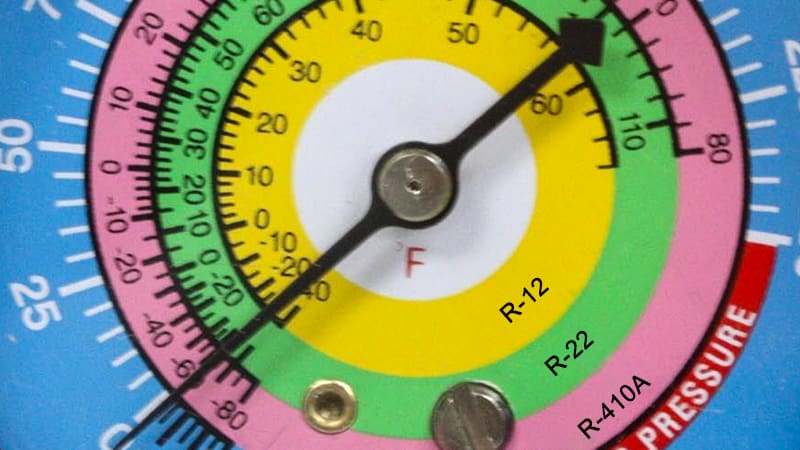

A "combo" or "universal" gauge is simply an R-410A rated gauge (built for high pressure) that also has the corresponding pressure-temperature scales for R-22 and other refrigerants printed on its face. While it seems convenient to carry one tool instead of two, from my years of experience, the risk it introduces is rarely worth the convenience.
| Feature | Pros of a Combo Gauge | Cons of a Combo Gauge (The Expert's View) |
|---|---|---|
| Cost | Cheaper to buy one set instead of two. | A single contaminated system costs far more than a second set of gauges. |
| Convenience | Less weight and space in your tool bag. | HIGH RISK of oil cross-contamination. |
| Functionality | Can physically read pressures on both systems. | The cluttered face can lead to reading errors. |
The main reason I strongly advise technicians to use separate, dedicated gauges is to prevent the transfer of oil between systems.
Why are R-410A gauges built so much stronger?
You look at an R-410A gauge set and it feels heavier and more robust. This isn't your imagination; it's a deliberate engineering choice driven by the need for safety.

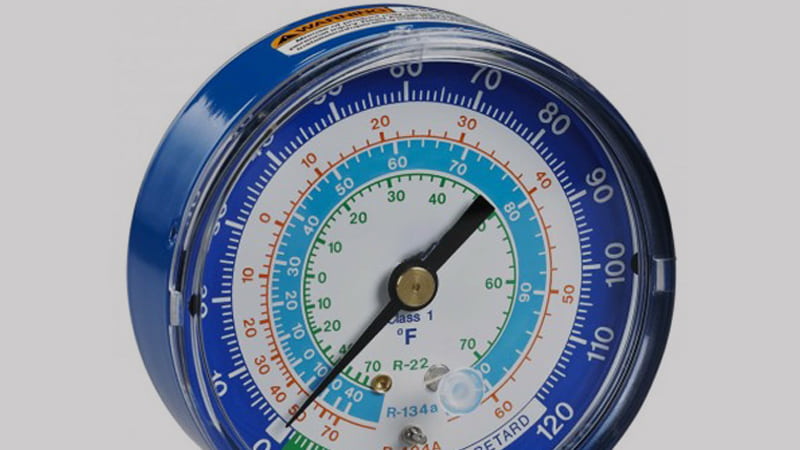

R-410A gauges are built stronger to safely contain the much higher system pressures. They use thicker internal components, stronger housing materials, and are typically rated for pressures up to 800 PSI, whereas R-22 gauges may only be rated to 500 PSI.

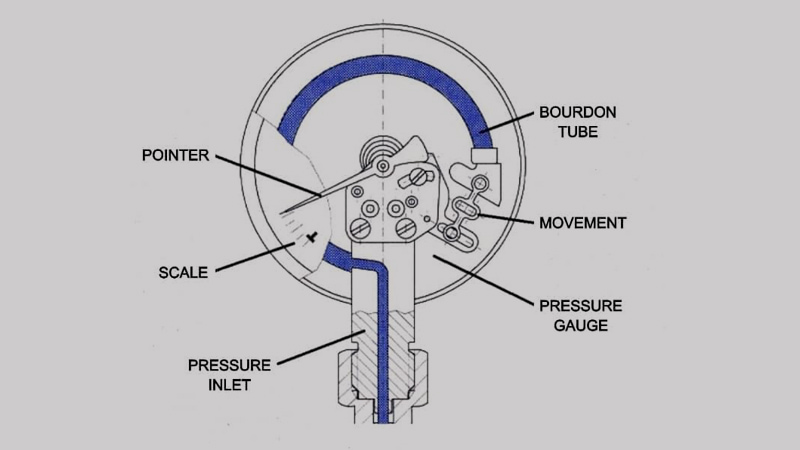

The needle on your analog gauge is moved by a C-shaped, sealed metal tube inside called a "bourdon tube." As pressure increases, the tube tries to straighten out, and this movement is translated to the needle through a series of gears. In an R-410A gauge, this bourdon tube, along with the gauge body and crystal, is significantly thicker and stronger to prevent it from rupturing. I've seen photos of cheap R-22 gauges that have exploded when connected to R-410A systems—it's a dangerous failure.
Are the service port fittings for R-22 and R-410A the same?
You go to connect your hoses to an R-410A unit and find your old R-22 hose won't fit. This isn't a defect; it's an intentional safety feature you must understand.

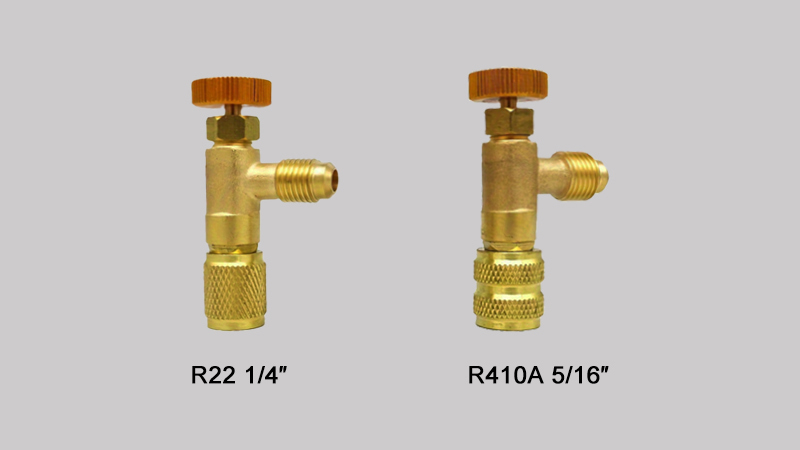

No, they are different by design to prevent catastrophic mistakes. R-22 systems use a standard 1/4" service port fitting. R-410A systems use a larger 5/16" fitting to physically stop you from connecting the wrong equipment.
This physical difference is one of the smartest things the industry did during the transition. It was put in place as a "Poka-Yoke," a Japanese term for "mistake-proofing." Because charging an R-22 system with R-410A refrigerant would cause it to fail from over-pressurization, this size difference creates a hard stop. It forces the technician to acknowledge they are working on a different type of system and need the correct hoses and gauges.
Why can't I use my old R-22 hoses on an R-410A system?
Even if you use an adapter, you might think your old hoses are fine. This is a hidden danger that many overlook, and it's not just about the fittings.

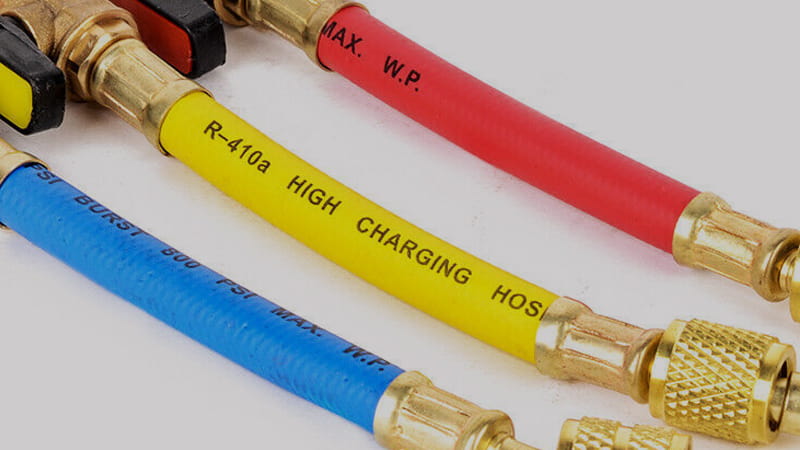

You must use R-410A rated hoses because they have a much higher burst pressure rating. Standard R-22 hoses may only be rated to 1500 PSI, while R-410A hoses are rated to 4000 PSI or more to safely handle the higher system pressures.
This is a critical point that goes beyond the gauges. The hose itself is a pressure vessel. Connecting a low-pressure hose to a high-pressure system is asking for a rupture. Furthermore, the material of an R-410A hose is less permeable to prevent refrigerant from seeping through the hose material over time. Always use a complete, dedicated set of gauges and hoses for R-410A service.
What is the risk of oil cross-contamination?
This is the hidden danger of using a single "combo" gauge set for everything. You know the refrigerants are different, but the oil inside the system is just as important.
The risk is catastrophic compressor failure. R-22 uses mineral oil, while R-410A uses synthetic POE oil. These oils are not compatible. Using the same gauge set on both systems will transfer residual oil, contaminating the system and destroying its ability to lubricate the compressor.

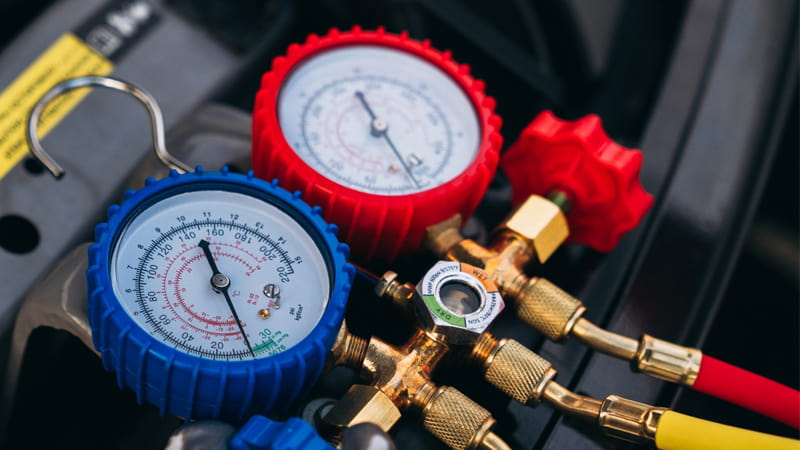

When I was first training technicians, I would stress this point relentlessly: dedicate one manifold set to R-410A and another to R-22. When you connect your gauges, a small amount of oil from the system inevitably gets into your hoses and manifold. If you then use that same gauge set on a different type of system, you are injecting the wrong oil into it. Keeping your tools separate is the hallmark of a true professional and the easiest way to prevent this costly contamination.
Final Thoughts
Your manifold gauge is not just a tool for measurement; it's a critical piece of safety and system-protection equipment. Always match your entire service setup—gauges, hoses, and procedures—to the specific refrigerant you are working with.
