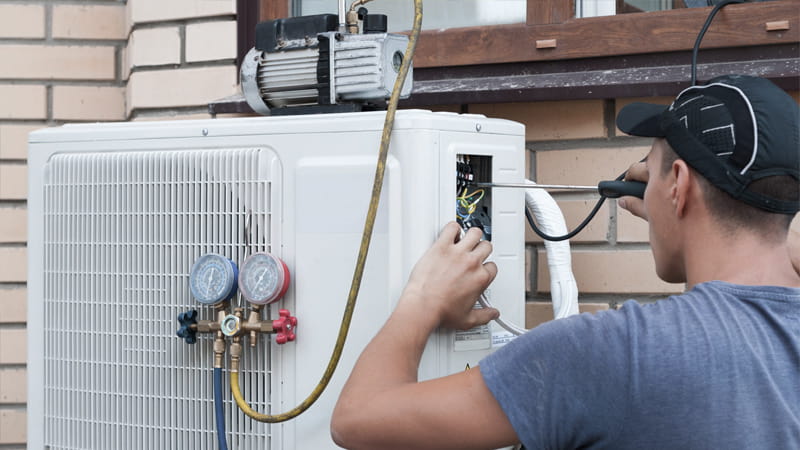

The perfect HVAC vacuum pump depends on system size, desired vacuum level (typically 500 microns or less), and job site conditions. Key factors include CFM rating, two-stage vs. single-stage design, and portability features like battery power, ensuring thorough moisture removal and optimal AC performance.
What is the proper vacuum level required for an HVAC system?
The proper vacuum level for an HVAC system is typically 500 microns of mercury (0.5 Torr) or lower. This deep vacuum ensures that virtually all moisture and non-condensable gases have been removed from the system, preventing common issues like acid formation, component damage, and ensuring optimal cooling efficiency.
This remaining moisture is a major threat. It can freeze at the expansion device, causing blockages that starve the evaporator. More dangerously, it can mix with refrigerant and oil to form corrosive acids. These acids attack internal components like compressor windings and copper tubing, leading to costly and premature system failure. Some manufacturers and best practices even recommend going lower, perhaps to 250-300 microns, especially for systems using POE oils which are highly hygroscopic (water-absorbing).
It is crucial to not only reach this deep vacuum but also to perform a standing vacuum test (decay test) to ensure the system is tight and truly dry. This involves isolating the system from the pump after reaching the target vacuum and observing if the pressure rises. A significant rise indicates leaks or remaining moisture. Achieving and verifying this proper vacuum level is a hallmark of quality HVAC work and directly impacts the system’s long-term reliability.
Why 500 Microns (or Lower) is Key
| Micron Level | Significance for HVAC Systems | Implication if Not Achieved |
|---|---|---|
| >1000 Microns | Insufficient moisture and non-condensable removal. | High risk of icing, corrosion, inefficiency, premature system failure. |
| 500 Microns | Industry standard for good dehydration and non-condensable removal. | Ensures reliable operation and longevity. |
| <500 Microns | Excellent dehydration, often recommended for POE oil systems. | Provides an extra margin of safety and system dryness, superior performance. |
| Holding Vacuum | Confirms system is leak-tight and truly dry after evacuation. | If vacuum rises quickly, indicates leaks or residual moisture. |
How do pump CFM ratings impact evacuation speed for HVAC systems?
Vacuum pump capacity, measured in CFM (Cubic Feet per Minute), directly impacts evacuation speed for HVAC systems, with higher CFM pumps evacuating larger systems faster. Matching CFM to system tonnage and line set volume is crucial for efficient moisture removal and minimizing job time.
For instance, while a 2 CFM pump might technically be adequate for smaller residential systems, many technicians prefer a 4, 6, or even 8 CFM pump to get the job done faster. This reduced evacuation time directly saves labor hours. However, going too large can also have downsides. A very high CFM pump on a very small system (like a mini-split) can sometimes pull a vacuum *too* quickly, potentially not allowing enough time for all the moisture to boil off effectively, especially if good evacuation practices like using large diameter hoses and Schrader core removal tools are not followed. It can also be overkill in terms of initial cost and portability.
My advice is to consider the majority of your work. If you primarily service residential systems (1.5 to 5 tons), a pump in the 4 to 8 CFM range is often a sweet spot. If you frequently work on larger commercial systems, then higher CFM pumps (10-12 CFM or more) become necessary. Always pair your pump with good quality, large-diameter vacuum hoses and a reliable micron gauge to actually see the progress and ensure complete moisture removal.
General CFM Guidelines for HVAC Systems:
| System Size (Tonnage) | Minimum Recommended CFM | Commonly Used CFM for Speed | Notes |
|---|---|---|---|
| Up to 3 tons | 2 CFM | 4-6 CFM | Faster evacuation, good for multiple small jobs. |
| 3 to 7.5 tons | 4 CFM | 6-8 CFM | Good balance for most residential and light commercial. |
| 7.5 to 15 tons | 6 CFM | 8-10 CFM | Necessary for reasonable evacuation times on larger systems. |
| Over 15 tons | 8-10+ CFM | 10-12+ CFM or boosters | Depends heavily on system volume and line set length. |

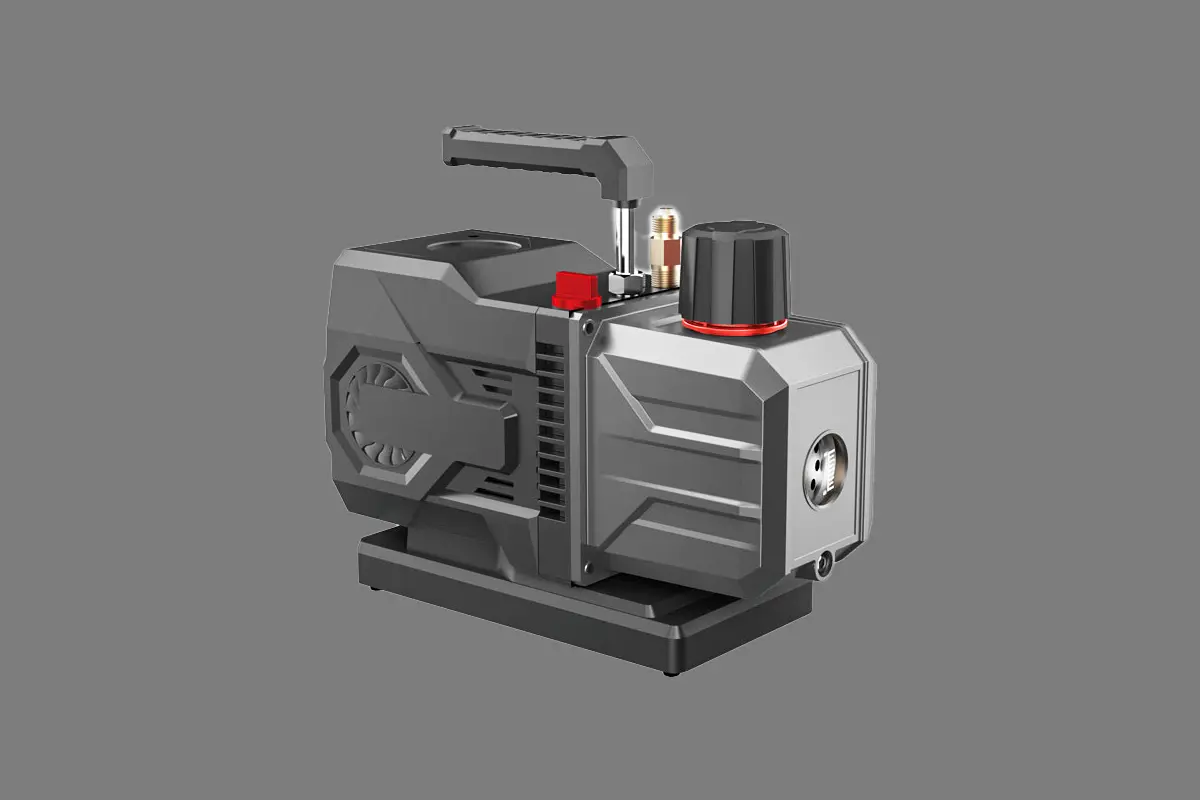

Beyond CFM: Key features and types of HVAC vacuum pumps to consider?
Choosing the best HVAC vacuum pump involves prioritizing a two-stage design for deep vacuum, evaluating motor types (AC vs. battery-powered DC) for portability, and checking for essential features like gas ballast valves, anti-suck-back mechanisms, and clear oil sight glasses to ensure optimal system performance and pump longevity.
When I help customers choose a vacuum pump, I always go beyond just the CFM rating. The first major decision is often single-stage vs. two-stage. For serious HVAC work, a two-stage pump is almost always the preferred choice. It achieves a deeper ultimate vacuum (lower micron level) more quickly and efficiently than a single-stage pump, which is crucial for proper moisture removal. Single-stage pumps might be cheaper but are generally not suitable for achieving the deep vacuum levels required for modern AC systems.
Other important features include a gas ballast valve, which helps purge moisture from the pump oil, extending oil life and improving performance when dealing with wet systems. An anti-suckback valve prevents oil from being drawn into the AC system if the pump loses power, protecting your valuable refrigerant lines. Look at the oil capacity and sight glass – a larger oil reservoir might mean longer intervals between changes, and a clear sight glass makes it easy to monitor oil level and condition. Finally, consider weight and overall build quality. If you are carrying your pump up ladders frequently, a lighter, robust model will be appreciated.
Key Considerations When Choosing an HVAC Vacuum Pump:
| Feature | Importance for HVAC | Tip for Choosing |
|---|---|---|
| Two-Stage Design | Critical for deep vacuum & moisture removal. | Always choose two-stage for professional HVAC work. |
| CFM Rating | Determines evacuation speed. | Balance speed needs with system sizes; 4-8 CFM is a common versatile range. |

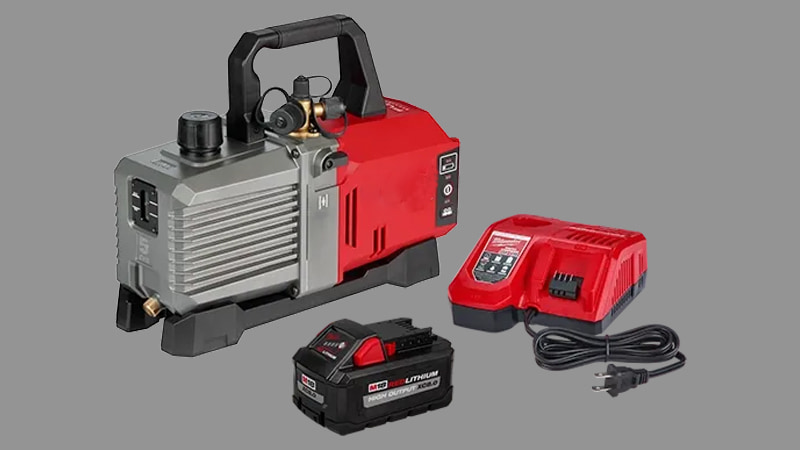

| Battery Power Option | Game-changer for portability & no-power sites. | Consider if you often work on rooftops or remote locations; budget for higher cost. |
| Gas Ballast Valve | Extends oil life when dealing with wet systems. | Very useful feature, especially in humid climates or on repair jobs. |
| Anti-Suckback Valve | Protects AC system from oil contamination. | Important safety feature to prevent costly mistakes. |
| Weight/Ergonomics | Affects ease of transport and setup. | Consider if you frequently carry your pump long distances or up ladders. |
Matching your HVAC vacuum pump to your typical workload?
You have learned about vacuum levels, CFM, and key features. Now, how do you combine all this to pick the right size pump that best fits your daily HVAC workload and maximizes your efficiency?
Matching your HVAC vacuum pump involves selecting a CFM and stage configuration appropriate for the majority of systems you service, from small residential units to larger commercial installations. Consider portability needs for varying job sites, prioritizing a two-stage design for thorough evacuation across all professional applications.
When technicians ask me what size pump they need for HVAC, I usually steer them towards the 4 to 8 CFM two-stage models as a versatile sweet spot. Here is why: a pump in this range, like a 5 or 6 CFM unit, can evacuate a typical 3-5 ton residential system down to 500 microns in a very reasonable timeframe, often 30-60 minutes, assuming good practices like using short, large-diameter hoses and removing Schrader cores. This efficiency means less waiting around on the job. Going much smaller, like a 1.5 or 2 CFM pump, while cheaper, will significantly increase your evacuation times, especially on slightly larger systems or those with long line sets. This can turn a quick job into a lengthy one.
On the other hand, a 10 or 12 CFM pump might be overkill for most residential work and will be heavier and more expensive. Those larger pumps are better suited if you consistently work on commercial systems of 10 tons or more. For many technicians, the ultimate choice often comes down to a 4-6 CFM two-stage pump, ideally with battery power if the budget allows. This combination offers the deep vacuum necessary for complete moisture removal, efficient pumping speed for common systems, and the flexibility of cordless operation for varied job sites. So, for everyday HVAC service, a robust two-stage pump in this mid-range capacity, potentially battery-powered if your work sites often lack convenient power, is often the perfect workhorse for maximum productivity.
Matching Pump Size to Workload
| Pump Size (CFM, Two-Stage) | Typical HVAC Application | Key Advantage | Potential Downside |
|---|---|---|---|
| 2-3 CFM | Small residential, mini-splits, very light duty. | Lower cost, more compact. | Slow evacuation on average systems. |
| 4-6 CFM | Most residential, light commercial up to ~7.5 tons. | Good balance of speed, cost, and portability. | Might be slow for larger light commercial. |
| 7-8 CFM | Larger residential, light commercial up to ~10-15 tons. | Faster evacuations, versatile. | Heavier, more expensive than smaller units. |
| 10-12+ CFM | Primarily commercial and larger systems. | Necessary for large volume evacuation. | Overkill and bulky for residential. |
Final Thoughts
