You’re installing a new AC system, and you know there’s one step you can’t skip. Rushing it can ruin the job, leading to poor performance and angry customers.
An HVAC vacuum pump, also recognized as a refrigeration vacuum pump or refrigerant vacuum pump, is a tool used to remove air, moisture, and other non-condensable gases from an air conditioning or refrigeration system before charging it with refrigerant. This process, called evacuation, is essential for system efficiency and longevity.
For any serious HVAC technician, a vacuum pump isn’t just another tool in the truck; it’s a non-negotiable part of doing the job right. In my 10 years in the vacuum industry, I’ve seen the direct link between a proper evacuation and a long-lasting, efficient refrigeration system. This process is the foundation of a good installation or repair. It’s the step that ensures the refrigerant can do its job without interference from the two things that will absolutely destroy a system from the inside: moisture and air. Let’s break down what this pump is, why it’s so important, and how to choose a good one.
What is an HVAC vacuum pump and how does it work?
You see the pump and you know you need it for the job. But what’s actually happening inside that sturdy aluminum box to create a deep vacuum in the lineset?
It uses an oil-sealed rotary vane mechanism. An offset rotor with spring-loaded vanes spins inside a chamber, trapping, compressing, and then expelling air molecules out of the exhaust to create a vacuum within the connected HVAC system.
The genius of an HVAC vacuum pump is in its simple, robust design. It’s built to be a workhorse in the field, so understanding its core function helps you appreciate why quality matters. I’ve sourced countless pumps for clients, and the best ones all rely on this time-tested mechanism.
The Rotary Vane Mechanism
At the heart of the pump is a cylindrical chamber, often called a stator. Inside, a circular rotor spins, but it’s mounted off-center. This rotor has slots containing vanes (usually two or three) that are pushed outwards by springs or centrifugal force, so their tips are always in contact with the inner wall of the chamber. As the rotor turns, the space between the vanes, the rotor, and the chamber wall continuously expands and contracts.
- Intake: As the space expands, it creates low pressure, drawing air and moisture from the connected HVAC system into the pump.
- Compression: As the rotor continues to turn, the space gets smaller, compressing the trapped gas.
- Exhaust: Finally, the compressed gas is forced out through an exhaust valve.
The oil inside is crucial. It lubricates all these moving parts and, most importantly, creates an airtight seal between the vane tips and the chamber wall, allowing the pump to reach the deep vacuum levels required.

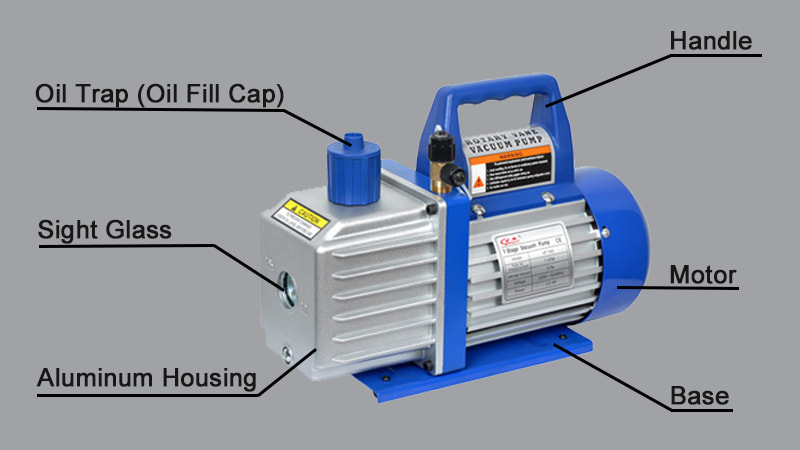

Built for the Field
These pumps are typically built with a sturdy aluminum body. This isn’t just for looks; aluminum is great at dissipating the heat generated during operation, which helps the pump run more efficiently and protects the oil from breaking down too quickly. This focus on a durable build and a reliable mechanism ensures the pump can deliver consistent performance, job after job.
Why is using a vacuum pump so critical for HVAC systems?
It’s easy to think of evacuation as just another step to get through. But skipping this or rushing it can cause hidden, slow-moving damage that leads to major system failure down the road.
It’s critical because it removes moisture and non-condensable gases. If left in, moisture mixes with refrigerant to form corrosive acids that destroy the compressor, and air reduces the system’s cooling capacity and efficiency.
I always tell people that a vacuum pump doesn’t just empty a system; it cleanses it of its two worst enemies. You can’t see them, but their impact is devastating. Failing to remove them properly is the difference between a system that runs for 15 years and one that needs a new compressor in 15 months.
The Problem with Moisture
When even a small amount of water vapor (H₂O) is left in a system, it reacts with refrigerants under the heat and pressure of normal operation. This chemical reaction creates highly corrosive hydrochloric and hydrofluoric acids. These acids are incredibly destructive. They eat away at the thin wire insulation in the compressor motor windings, causing electrical shorts. They also corrode metal parts, creating a sludge that clogs up the small capillary tubes and TXV valves that are essential for the refrigeration cycle.
The Problem with Air
Air is about 78% nitrogen and 21% oxygen. Unlike refrigerant, these are “non-condensable” gases, meaning they won’t turn into a liquid at the pressures and temperatures inside the condenser. They just take up valuable space. This has two major effects:
- Increased Head Pressure: The trapped air raises the overall pressure in the system, forcing the compressor to work much harder and use more electricity.
- Reduced Cooling: Because air is taking up space in the condenser coils, there is less surface area available for the refrigerant to condense and release its heat. The system simply can’t cool as effectively.
| Contaminant | Consequence of Not Removing | Result |
|---|---|---|
| Moisture | Forms corrosive acids with refrigerant | Compressor failure, clogged system |
| Air | Raises head pressure, takes up space | Higher energy bills, poor cooling |
Why choose a Coolink pump for your HVAC needs?
You need a reliable pump that won’t fail you on a hot roof in the middle of a job. With so many options out there, choosing a trusted brand is your best bet for quality and peace of mind.
Coolink is a top-three global manufacturer of quality HVAC vacuum pumps from China. Their pumps, like the classic VP series and upgraded VB series, are known for reliability, performance, and are trusted by millions of users worldwide.
When I’m sourcing equipment for clients, reputation means everything. A brand doesn’t become a top global manufacturer by accident. It happens through years of consistent quality and earning the trust of the people who use the tools every day. That’s the story I see with Coolink. Their products have become a benchmark in the industry for accessible quality.
A Legacy of Trust: The VP Series
You can’t talk about HVAC pumps without mentioning Coolink’s classic VP series. For years, these pumps have been the definition of a dependable workhorse. I’ve seen them on job sites all over the world. In fact, many of the top-selling HVAC pumps you see on platforms like Amazon are actually OEM versions of this very series. That’s a powerful testament to its proven design and rock-solid reliability. Millions of customers have trusted this pump to get the job done right, making it a true industry standard.

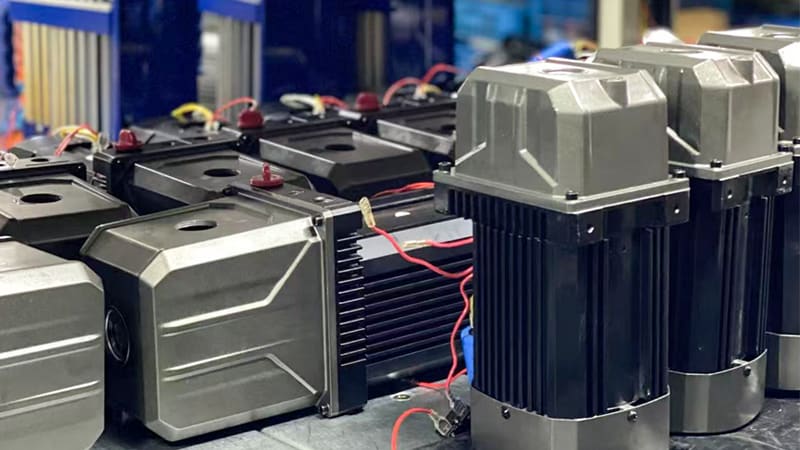

The Next Generation: The VB Series
Building on that legacy of trust, Coolink has introduced the upgraded VB series. This isn’t just a new coat of paint; it represents an evolution in design and performance. Enhancements often focus on things that matter to technicians in the field: improved gas ballast features for handling more moisture, lighter-weight materials for easier portability, and even more robust motors for longer life. This commitment to continuous improvement is why I confidently recommend them. If you want to elevate the performance and reliability of your HVAC service, you can explore the upgraded VB series by clicking HERE.
Final Thoughts
An HVAC vacuum pump is not an optional tool. It’s a critical device that protects the system’s health, and choosing a quality brand like Coolink ensures you get the job done right.
