Feeling unsure about AC evacuation times? Rushing this step can leave moisture and air in your system, leading to inefficiency and costly damage. I will clarify the crucial time needed for proper vacuuming.
The duration for vacuuming an AC system varies, typically from 30 minutes to several hours, depending on system size, ambient temperature, humidity, and the vacuum pump's capacity. The critical factor is achieving and holding a deep vacuum, usually below 500 microns, not just time.
After a decade in the vacuum pump industry, I have seen many people underestimate the importance of proper AC system evacuation. It is not just about pulling a vacuum; it is about pulling the right vacuum for the right amount of time. Let me guide you through the details.

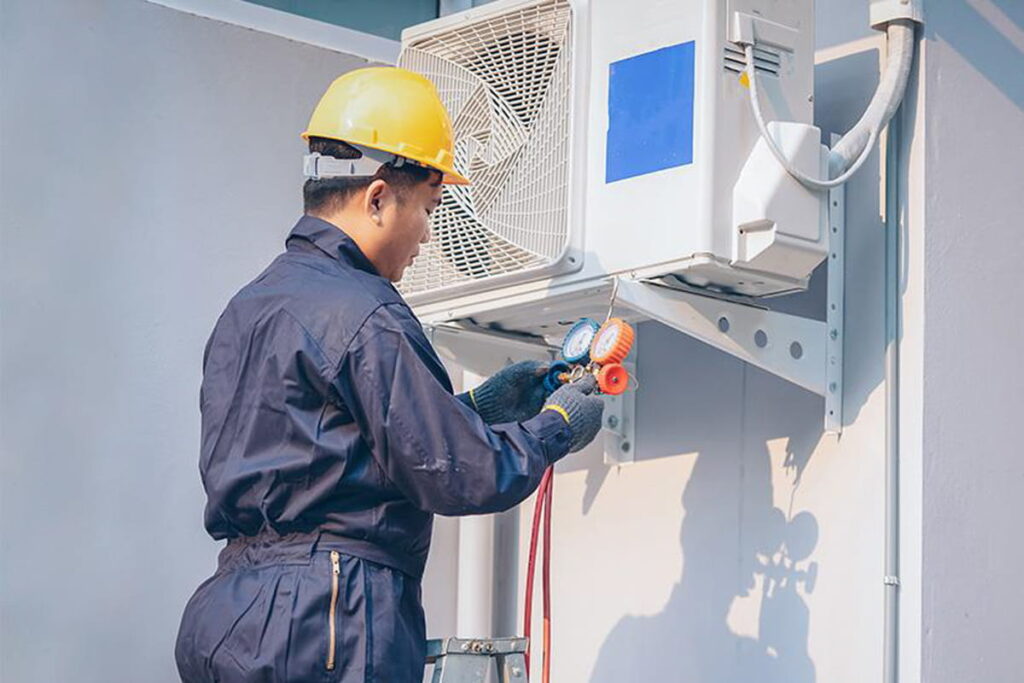

How long do you need to vacuum an AC system?
Unsure if your AC evacuation is thorough enough? An insufficient vacuum leads to hidden moisture and air, causing efficiency loss and premature component failure. I will clarify the exact requirements.
Vacuuming an AC system properly requires enough time to achieve a deep vacuum, typically 250-500 microns, and for the system to hold that vacuum. This duration is influenced by factors like system volume, ambient conditions, and pump size, ensuring all contaminants are fully removed.
The time needed to vacuum an AC system is less about a fixed number of minutes and more about achieving and maintaining a specific vacuum level. From my experience, people often rush this, leading to problems later. The goal is to reach a deep vacuum, typically below 500 microns (0.5 Torr or 67 Pa), and ideally even lower, around 250 microns, for optimal performance. This low pressure is crucial because it lowers the boiling point of water, allowing any moisture inside the system to vaporize and be pulled out by the vacuum pump.
Several factors influence how long this takes:
- System Size and Volume: Larger AC systems (like those in commercial buildings or multi-zone residential units) have more volume and longer lines, requiring significantly more time to evacuate than a small car AC system. More surface area means more potential for adsorbed moisture.
- Ambient Temperature and Humidity: In hot, humid environments, more moisture will be present in the lines and components, and it will take longer to boil off and remove. Conversely, in dry, cooler conditions, evacuation can be quicker. Higher humidity means more water vapor to remove.

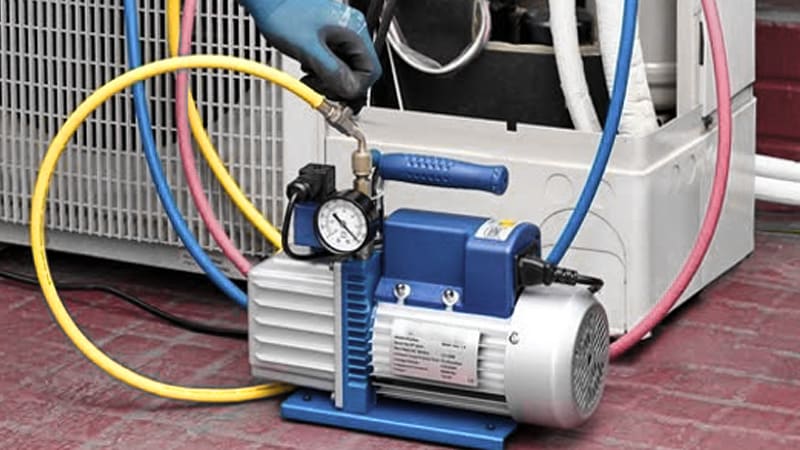

- Vacuum Pump Capacity and Condition: A powerful, well-maintained vacuum pump with a high CFM (cubic feet per minute) rating will evacuate the system faster than a smaller, older, or poorly maintained pump. The pump's ability to pull and hold a deep vacuum is paramount. It needs to be robust enough for the job.
- System Contamination Level: If the system was open to the atmosphere for a long time, or if there was a previous compressor burnout (which leaves significant contaminants and sludge), it will require a much longer, possibly multi-stage, evacuation to clean out all impurities thoroughly.
- Line Set Length and Diameter: Longer and narrower refrigerant lines add resistance and volume, increasing evacuation time. The more surface area available for moisture to cling to, the longer it takes to remove.

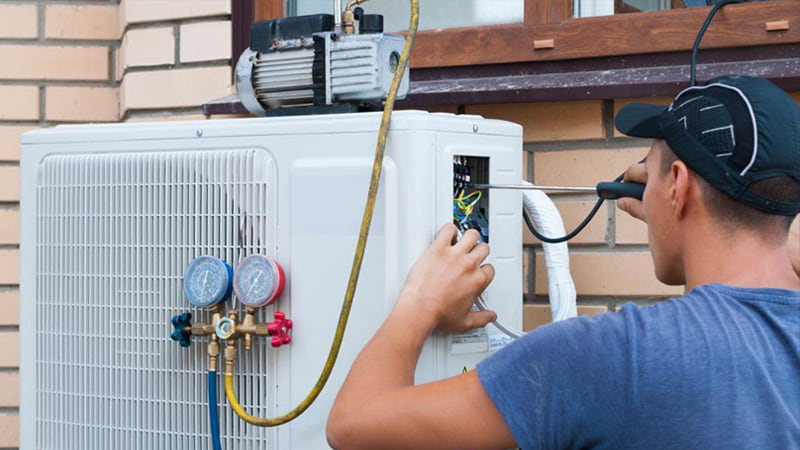

A reliable method involves running the vacuum pump until the desired micron level is reached, then closing the valves to the pump and observing the micron gauge. If the pressure rises significantly, it indicates either a leak or remaining moisture still boiling off. If it rises due to moisture, continue vacuuming. This is why just "running it for 30 minutes" is often insufficient.
How much vacuum is needed to evacuate an AC system effectively?
Unsure about the ideal vacuum level for AC evacuation? An insufficient vacuum leaves damaging moisture and air, ruining efficiency and compressor life. I will clarify the precise target.
To effectively evacuate an AC system, you must pull a deep vacuum of at least 500 microns (0.5 Torr), with 250 microns being ideal. This low pressure ensures that all moisture boils off and non-condensable gases are removed, preventing future system issues.
The "how much" in vacuuming an AC system refers to the ultimate vacuum level you must achieve, measured in microns. From my vantage point, this is arguably more important than the duration alone, as time is simply the means to reach this specific low-pressure state.
The industry standard for a proper AC system evacuation is to pull the system down to at least 500 microns. For optimal performance and longevity, especially in larger or more critical systems, aiming for 250 microns or even lower is highly recommended. Why such a low pressure? It all comes back to the boiling point of water. At atmospheric pressure (around 760,000 microns), water boils at 100°C (212°F). However, as the pressure drops, so does the boiling point. At 500 microns, water boils at approximately -4.5°C (24°F). This means any liquid water or trapped moisture inside the system will vaporize and be drawn out by the vacuum pump, even in cooler ambient temperatures.

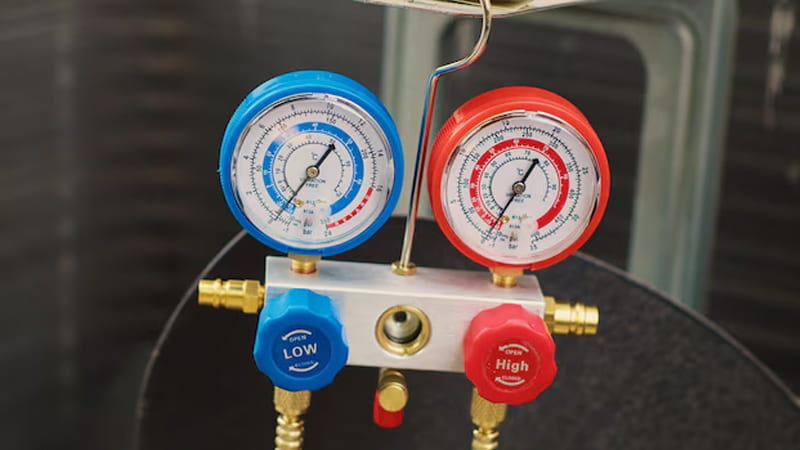

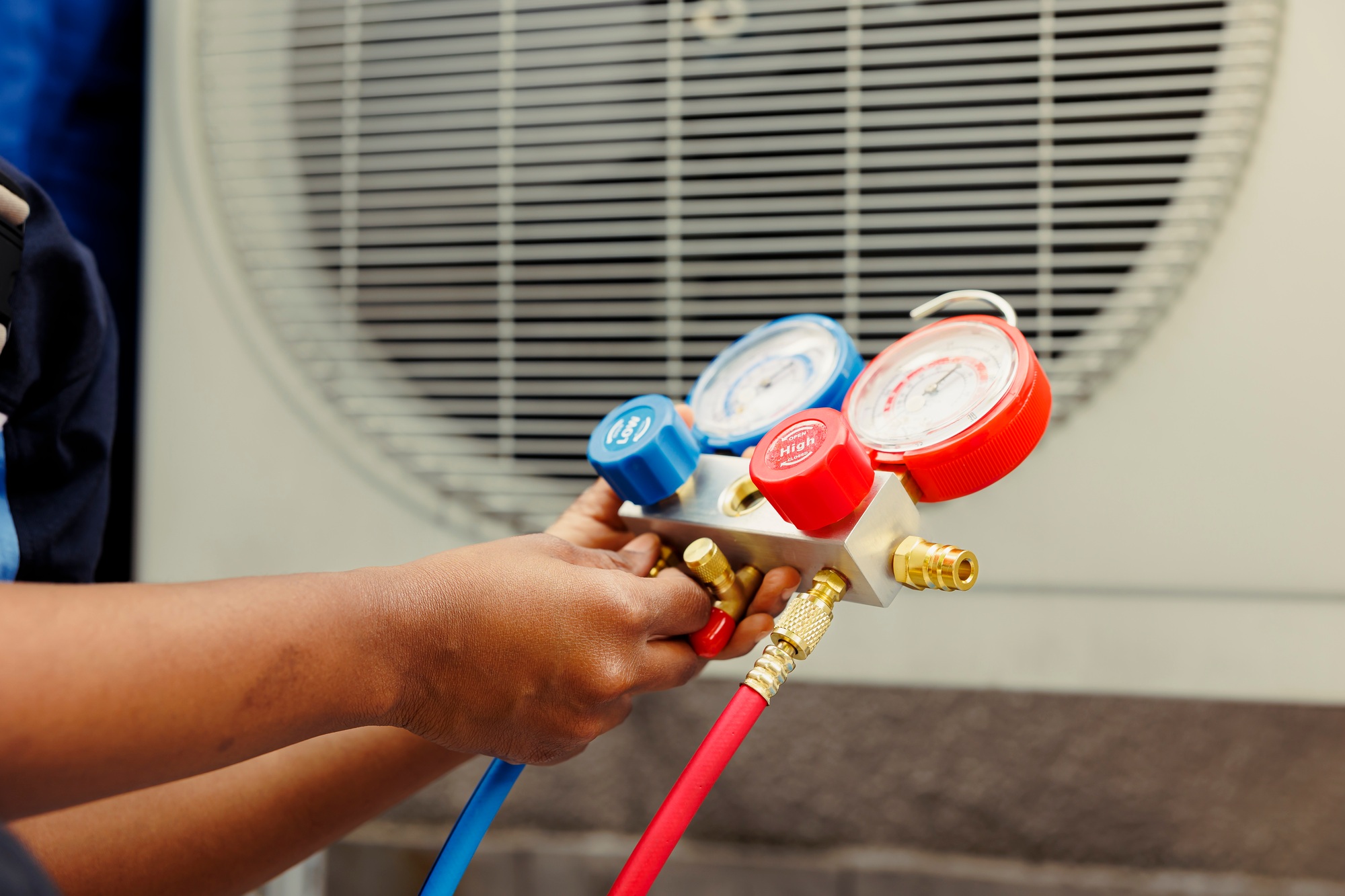

If you only pull a shallow vacuum (e.g., to 1000 microns or higher), you risk leaving significant amounts of moisture behind. This moisture, as discussed, is highly detrimental because it can form corrosive acids, cause ice blockages at the expansion valve, and degrade the refrigerant oil. These issues severely impact system efficiency and can lead to costly compressor failures down the line. Using a reliable digital micron gauge is essential to monitor this process accurately. Relying solely on analog manifold gauges is insufficient because they cannot accurately measure the deep vacuum levels required for proper evacuation. Once the target micron level is reached, the system should hold that vacuum for a minimum of 15-30 minutes to confirm no leaks and complete moisture removal. A rising micron reading after closing the pump indicates a problem that needs to be addressed before charging.
How long should you vacuum your AC drain line?
Ignoring your AC drain line during vacuuming? This critical oversight can lead to unexpected moisture issues and system problems later. I will explain why this often-missed detail matters.
The AC drain line, which carries condensate away, is typically not vacuumed as part of the main refrigerant circuit evacuation. However, ensuring it's clear and free of blockages is vital to prevent water buildup, which can cause system leaks, mold growth, and indoor air quality issues.
It is important to clarify the role of the AC drain line (condensate drain) in relation to vacuuming the refrigerant system. From my work, I have noticed some confusion between the two. The drain line is distinct from the sealed refrigerant circuit and is not typically part of the vacuum evacuation process. You should never attempt to vacuum this line with a refrigerant vacuum pump.
The AC drain line's primary function is to remove condensate (water) that forms on the evaporator coil as warm, humid air passes over it. This line is designed to be open to the atmosphere, usually leading outdoors or to a drain. It relies on gravity for drainage, often with a P-trap to prevent air from being drawn into the system's air handler and to block odors.

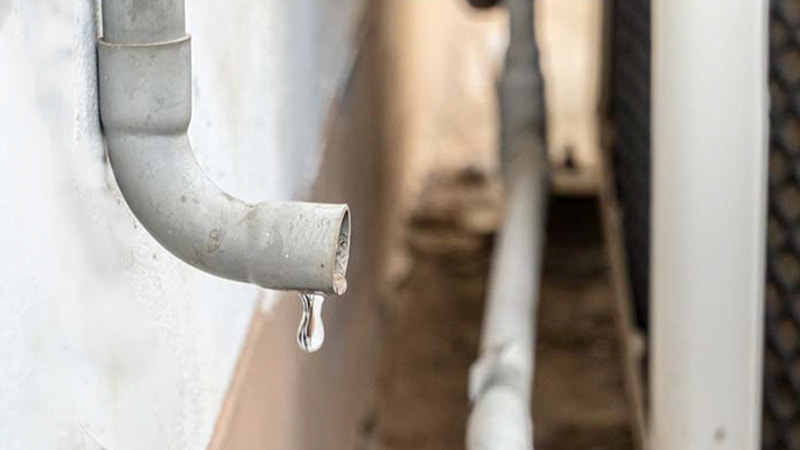

However, while you do not vacuum the drain line itself, ensuring it is in good working order is crucial for overall AC system health. If the drain line becomes clogged with algae, mold, dirt, or debris, the condensate water will back up. This can lead to:
- Water leaks: Water overflowing from the drain pan can cause significant damage to ceilings, walls, or flooring. I have seen extensive mold growth and structural damage result from persistent drain line blockages. This is a common and costly homeowner problem.
- High indoor humidity: If water remains in the drain pan, it can evaporate back into the air stream, increasing indoor humidity and reducing the system's dehumidification capability. This means your AC works harder to cool, but less effectively to dehumidify.
- Mold and mildew growth: Stagnant water in the drain pan or line is an ideal breeding ground for mold and mildew, leading to foul odors and potential indoor air quality problems. This can even impact the health of occupants and trigger allergies.
- System shutdown: Many modern AC systems have a float switch in the drain pan that will shut down the entire unit if the water level gets too high, preventing overflow but also stopping your cooling. You might come home to a warm house because of a simple clog.
Regular maintenance of the drain line, such as pouring a cup of distilled vinegar or a bleach/water solution into it periodically, is important. This helps prevent clogs and ensures proper drainage, keeping the system efficient and preventing water-related issues that are separate from refrigerant circuit contamination.
Final Thoughts
Properly vacuuming an AC system to a deep micron level is vital, not just about time. This removes damaging moisture and gases, ensuring efficiency, longevity, and preventing costly failures, a non-negotiable step for any AC service.
