If you are dealing with dissolved gas in liquids, you know the frustration: bubbles trapped in your final product, ruining quality. Understanding vacuum degassing is key, but why does your chamber keep failing?
Vacuum degassing works by lowering pressure in a chamber, causing dissolved gases and vapors to expand, rise, and escape from a liquid. Chambers often fail due to issues like overpressure from incorrect pump sizing or chemical reactions from volatile compounds, particularly with acrylic materials, leading to cracks or leaks.
From my decade in the vacuum pump industry, I have seen countless applications where vacuum degassing is critical for product quality. It is a powerful process, but it requires the right equipment and careful management. Let us dive into the mechanics and common pitfalls.
How does vacuum degassing work?
Have you ever wondered about the science behind removing gas from liquids? Vacuum degassing might seem complex, but its underlying principle is straightforward and incredibly effective.
Vacuum degassing works by reducing the ambient pressure in a sealed chamber, which lowers the boiling point of liquids and significantly increases the volume of dissolved gas bubbles. This expansion causes bubbles to rapidly rise to the liquid surface, burst, and release their trapped gases and vapors, which are then evacuated by a vacuum pump.
At its core, vacuum degassing is a technique for removing dissolved gas from a liquid to improve product quality. I have seen this applied across many industries, from the manufacturing of LED lamps and epoxy resins to plastic extrusion, silicone rubbers, and glues. It is even vital for specialized tasks like wood stabilization for knife handles and pens, ensuring a bubble-free finish.
The procedure fundamentally needs a vacuum pump to lower the pressure inside a container known as a vacuum chamber, where the liquid solution is placed. As the pressure is reduced, typically down to around 50 mbar (absolute), the solubility of gases in the liquid decreases dramatically. This causes any dissolved gases to come out of the solution and form bubbles.
The reduced pressure leads to a rapid increase in the volume of these bubbles inside the liquid solution. Their increased buoyancy causes them to rapidly float to the liquid surface and burst, releasing the trapped gas. The process significantly accelerates when the ultimate vacuum achieves even lower pressures, often around 20 mbar. After the gas, vapors, and moisture are extracted from the liquid solution, the pressure is slowly returned to normal, and the degassing process is finished. This careful return to pressure helps prevent reintroduction of air.
Key Stages of Vacuum Degassing
| Stage | Description | Pressure Range (Typical) |
|---|---|---|
| Initial Evacuation | Vacuum pump lowers chamber pressure | Atmospheric to 50 mbar |
| Bubble Formation/Expansion | Dissolved gases form bubbles, rapidly expand in volume | 50 mbar to 20 mbar |
| Bubble Rise & Burst | Buoyancy causes bubbles to float to surface and burst | Continues down to 20 mbar |
| Gas/Vapor Extraction | Vacuum pump continuously removes released gases/vapors | Maintained at desired vacuum |
| Return to Normal | Pressure slowly equalized to atmosphere | 20 mbar to Atmospheric |
Can a vacuum chamber implode, and what keeps it safe?
The idea of a vacuum chamber imploding might sound like science fiction, but it is a real engineering concern. Understanding the forces involved is crucial for safe operation.
Yes, a vacuum chamber can implode if it is not designed to withstand the immense external atmospheric pressure. When a vacuum is created inside, the much higher external pressure can cause the chamber walls to buckle inward. Safety relies on robust materials, proper wall thickness, and engineering for external compressive forces.
From my technical background, the concept of implosion is a critical aspect of vacuum chamber design. It is not about internal forces pulling something in, but rather the overwhelming force of the external atmospheric pressure pushing in on the chamber walls. When you create a vacuum inside a chamber, you are removing the internal air pressure that normally counterbalances the external atmospheric pressure (which is about 1 bar or 14.7 psi at sea level). This creates a huge pressure differential across the chamber walls. If the chamber's material strength and design are insufficient, the external pressure can cause it to collapse inward with tremendous force.
This is why vacuum chambers are typically built from strong materials like stainless steel or thick tempered glass, designed with robust, often cylindrical or spherical shapes to distribute stress evenly. Flat panels are much weaker against external pressure and require significant reinforcement. Engineers meticulously calculate wall thickness based on the maximum vacuum intended and the chamber's dimensions. Proper welding and sealing are also vital to ensure structural integrity. While rare with properly designed and maintained equipment, an implosion is a severe hazard, emphasizing why chambers must be selected and operated within their specified pressure ratings and material limits. This includes inspecting for any physical damage or stress points regularly.
Preventing Vacuum Chamber Implosion
| Safety Measure | Description | Importance |
|---|---|---|
| Robust Material Selection | Stainless steel, tempered glass, thick acrylic (rated) | Withstands high external pressure |
| Appropriate Design Geometry | Cylindrical or spherical shapes favored | Distributes stress evenly, reduces weak points |
| Calculated Wall Thickness | Based on maximum vacuum level and chamber dimensions | Ensures structural integrity for intended use |
| Quality Fabrication/Welding | Flawless construction, strong seals | Prevents weak points where collapse could initiate |
| Adherence to Pressure Ratings | Never exceed manufacturer's specified vacuum limits | Protects chamber from excessive differential pressure |
What happens if a person is exposed to the vacuum of space or a chamber?
The thought of being exposed to a vacuum chamber is terrifying, fueled by dramatic movie scenes. But what would truly happen if a person found themselves in such an environment?
If a person were exposed to a vacuum chamber, the immediate effect would be the rapid boiling of bodily fluids, particularly water in the mouth and eyes, followed by swelling. Consciousness would likely be lost within 10-15 seconds due to lack of oxygen. Though gruesome, the body would not explode, but rather suffer severe internal damage over minutes.
As a vacuum pump expert, I have heard this hypothetical question many times, and it is crucial to separate fact from fiction. The dramatic "explosion" seen in movies is incorrect. The human body is not a balloon that would burst. However, the effects would be severe and rapid.
The first and most immediate issue is the lack of breathable air. You would lose consciousness very quickly, within 10 to 15 seconds, due to cerebral anoxia (lack of oxygen to the brain). Simultaneously, because the external pressure is so low, the boiling point of liquids in your body would drop dramatically.
This phenomenon, known as ebullism, would cause water in your mouth, eyes, and lungs to begin to boil and vaporize. This would cause significant swelling of soft tissues, potentially doubling body volume, but the skin is elastic enough to prevent an actual explosion. Your lungs would collapse. Rapid decompression can also lead to barotrauma, damaging internal organs. While the body would not freeze instantly (heat loss in a vacuum is slow due to radiation), prolonged exposure would lead to freezing. Survival beyond a few minutes is not possible, and even brief exposure would cause severe, life-threatening injuries due to a combination of oxygen deprivation, ebullism, and potentially gas embolism if lungs are not allowed to decompress.
Physiological Effects of Vacuum Exposure
| Effect | Description | Timing/Severity |
|---|---|---|
| Loss of Consciousness | Due to rapid oxygen deprivation (cerebral anoxia) | Within 10-15 seconds |
| Ebullism | Boiling/vaporization of body fluids at low pressure | Immediate, causes swelling of soft tissues |
| Lung Collapse/Damage | Due to rapid decompression and pressure differential | Rapid, potential for barotrauma |
| Swelling | Gases forming in tissues (no bursting) | Significant, body volume may double |
| Hypoxia | General lack of oxygen in tissues | Progressive, leads to organ damage |
Why do vacuum degassing chambers fail, and how can you prevent it?
A failing vacuum chamber can halt production and compromise product quality. Understanding the common causes of failure is crucial for maintaining your degassing process.
Vacuum degassing chambers primarily fail due to cracks from overpressure (wrong pump model) or chemical reactions with volatile compounds, especially in acrylic chambers. Preventative measures include correct pump sizing, using robust materials like tempered glass or stainless steel, and avoiding incompatible chemicals for prolonged contact with chamber materials.

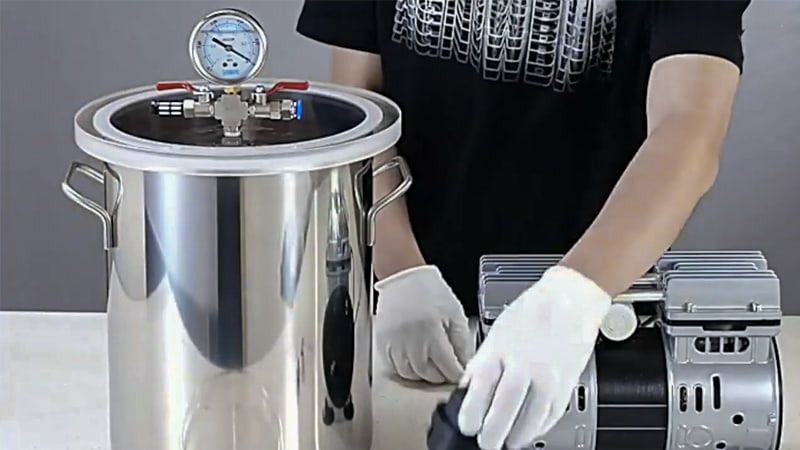

In my professional work, I have encountered various issues leading to chamber failure, and it often boils down to a mismatch between the chamber's design and its operational demands. The vacuum degassing chamber kit is very popular for both residential and industrial use. For residential or small-scale industrial applications, common vacuum chamber types include stainless steel chambers with tempered glass lids, stainless steel chambers with acrylic lids, and full acrylic vacuum chambers. The pump typically used with these kits, especially for lower vacuum levels needed for degassing, is often an HVAC vacuum pump, selected for its accessibility and adequate performance in the rough vacuum range (e.g., down to 20 mbar).

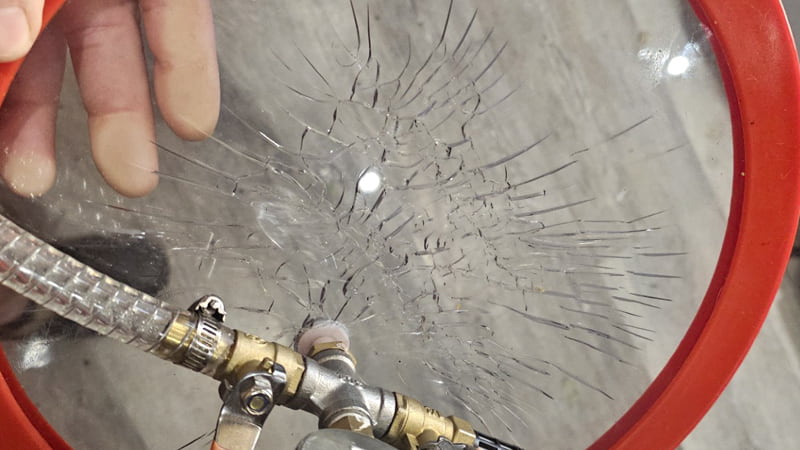

However, during operation, especially with acrylic lids or full acrylic chambers, a common problem is cracking. This often occurs due to overpressure, which can be caused by a wrongly selected vacuum pump model. If a pump is too powerful or its vacuum level is not properly controlled for the chamber's rating, it can create internal stresses that exceed the material's limits.
Another significant cause is chemical reaction with volatile compounds present in the liquids being degassed. Certain chemicals, particularly solvents or monomers in resins, can chemically attack and weaken acrylic, leading to stress cracks over time. A typical wrong application where this is seen is wood stabilization, where certain resins can degrade acrylic. To effectively solve these crack problems, I always recommend not using full acrylic chambers for demanding applications, and to replace acrylic lids with tempered glass ones when dealing with potentially volatile compounds or high-stress applications. Stainless steel chambers offer superior durability and chemical resistance for more robust use.
Common Chamber Failure Points & Prevention
| Failure Cause | Description | Prevention Strategy |
|---|---|---|
| Overpressure/Wrong Pump | Excessive vacuum (too low pressure) for chamber's rating | Match pump ultimate vacuum to chamber rating; use vacuum regulator |
| Chemical Reaction | Volatile compounds degrade chamber material (e.g., acrylic) | Use chemically resistant materials (stainless steel, tempered glass); check material compatibility with liquids |
| Material Weakness | Acrylic's inherent susceptibility to stress cracks | Prefer stainless steel or tempered glass for demanding uses; avoid full acrylic chambers |
| Improper Handling | Physical impact, incorrect clamping, overheating | Proper training, careful handling, maintain seal integrity |
Final Thoughts
Vacuum degassing is vital for quality, relying on proper pressure reduction to remove dissolved gases. Understanding how it works and safeguarding against common chamber failures—especially those related to overpressure or material incompatibility—is essential for smooth, efficient operations.
