Is your vacuum pump underperforming, running hot, or making strange noises? Before you blame the pump itself, look at its most critical line of defense. A simple clogged filter is often the root cause of catastrophic—and costly—pump failure.
Yes, a clogged filter is a leading cause of vacuum pump failure. It restricts flow, causing overheating, oil contamination, and severe motor strain. Proactive filter replacement is the most effective way to prevent this damage and ensure your pump's longevity and peak performance.
After a decade in the vacuum pump business, I have seen countless pumps condemned as "failed" when the real culprit was a dirty, neglected filter. It is an essential component that removes impurities, but it is also the most commonly overlooked. Ignoring it is like asking your pump to breathe through a straw, and eventually, it will suffocate. Let me show you why this small part has such a huge impact.
What Is the Single Biggest Cause of Vacuum Pump Failure?
Are your vacuum pumps failing unexpectedly, leading to frustrating downtime and repair bills? The most common culprit is often unseen, working silently to destroy your equipment from the inside out. I will reveal the primary cause.
The single biggest cause of premature vacuum pump failure is filter neglect. When essential filters for air intake, oil, or exhaust become clogged, they trigger a cascade of damaging events—from particulate contamination to overheating—that lead to a complete functional breakdown.
When clients come to me with a failing pump, my first question is always about their filter maintenance schedule. More often than not, this is where the problem lies. Filters are the gatekeepers for your vacuum pump, and when they are compromised, the entire system is at risk.
Think of the different filters as specialized bodyguards:
- Inlet/Dust Filter: This is the bouncer at the front door. Its job is to stop any abrasive dust or process particulates from entering the pump. When it is neglected, it is like firing the bouncer—abrasive particles get in and act like sandpaper on the precision-machined internal components, causing rapid wear.
- Oil Filter: This is the pump's kidney. It continuously cleans the oil, removing sludge and contaminants that cause wear. A clogged oil filter means dirty oil is being circulated, leading to lubrication failure.
- Exhaust/Oil Mist Filter: This filter prevents oil mist from polluting your workspace, but critically, it also allows the pump to "exhale." A clogged exhaust filter is like holding your breath while trying to run. It creates immense backpressure, straining the entire system.
Each of these, when neglected, initiates a chain reaction that inevitably leads to pump failure. It is not one single event, but a slow, preventable death caused by contamination and strain.
Here's how each neglected filter contributes to failure:
| Filter Type | Primary Function | How Neglect Causes Failure |
|---|---|---|
| Inlet Filter | Blocks airborne dust and particulates | Allows abrasive wear on vanes, rotors, and cylinders. |
| Oil Filter | Removes contaminants from pump oil | Circulates dirty oil, leading to poor lubrication and wear. |
| Exhaust Filter | Separates oil mist, allows gas to exit | Creates backpressure, causing overheating and motor strain. |

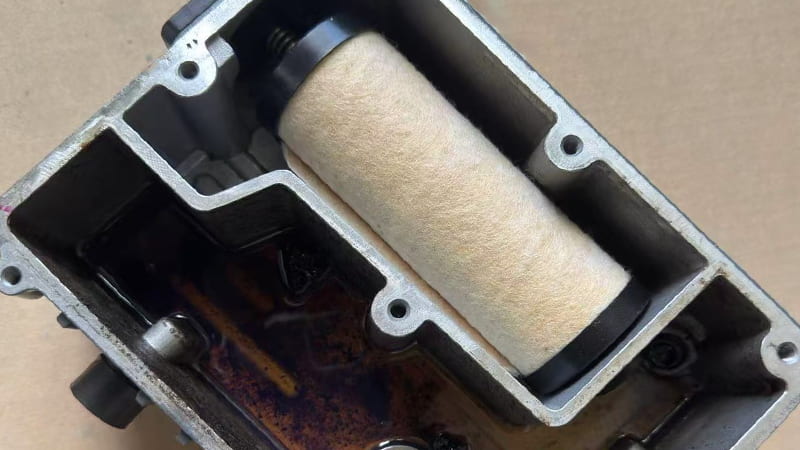

How Exactly Does a Clogged Filter Damage Your Pump?
Curious about what is really happening inside your pump when a filter is clogged? It is not just about reduced performance; it is a cascade of destructive events. I will break down the specific types of damage.
A clogged filter damages a pump in three main ways: by introducing abrasive particles that cause mechanical wear, by creating backpressure that leads to severe overheating and oil degradation, and by forcing the motor to work harder, which can lead to electrical failure.
A clogged filter is not a passive issue. It actively damages your pump through a devastating chain reaction.
1. Abrasive Mechanical Wear
If the inlet filter is clogged or fails, dirt, dust, and process particulates are sucked directly into the heart of the pump. These particles get trapped between the tight-tolerance moving parts, like the spinning vanes and the cylinder wall. This creates a grinding paste that rapidly wears down these critical surfaces. The result is a loss of compression, internal leaks, and a pump that can no longer achieve its target vacuum. I have seen the inside of neglected pumps that look like they have been sandblasted.
2. Overheating and Oil Degradation
When an exhaust filter is clogged, the pump cannot easily push the discharged gas out. This creates significant backpressure, forcing the motor and the pumping mechanism to work much harder. This extra work generates a massive amount of heat. Heat is the number one enemy of vacuum pump oil; it causes the oil to "crack" or thermally break down, turning it into thick, black sludge. This sludge loses all its lubricating properties and clogs small oil passages, leading to lubrication starvation and seizure.
3. Motor and Electrical Strain
The increased workload from backpressure puts a tremendous strain on the electric motor. The motor will draw more current and run hotter, which can lead to premature failure of its windings or bearings. In some cases, this can trip thermal overloads, causing nuisance shutdowns. If left unchecked, it can lead to a complete motor burnout, which is often one of the most expensive components to replace.
Here’s a summary of the damage cascade:
| Clogged Filter Type | Initial Effect | Resulting Damage |
|---|---|---|
| Inlet Filter | Particulate Ingress | Abrasive wear of vanes, rotor, and cylinder walls |
| Exhaust Filter | High Backpressure | Overheating, oil degradation, motor strain/burnout |
| Oil Filter | Circulation of Contaminated Oil | Poor lubrication, bearing failure, seized components |
What are the Warning Signs of a Failing Pump (and a Clogged Filter)?
Is your pump trying to tell you something is wrong? Before a total breakdown, a pump will almost always give off clear warning signs. I will teach you how to spot these red flags early.
The key warning signs of a failing pump—often caused by a clogged filter—include a gradual loss of vacuum performance, unusually high operating temperatures, new or strange noises like grinding or chattering, and visible oil leaks or excessive exhaust mist.
Your vacuum pump will not just fail silently. It will give you plenty of warning signs that trouble is brewing. Learning to recognize these symptoms is key to catching a problem before it becomes a catastrophe.
The most common indicator is a gradual loss of performance. You might notice that it is taking longer and longer to pump down your system, or that the pump can no longer reach the deep vacuum level it once could. This is a classic sign of internal wear or a clogged filter restricting flow.
Next, pay attention to temperature. Place your hand safely near the pump casing (do not touch it if it looks dangerously hot). Is it running significantly hotter than usual? Overheating is a direct symptom of the strain caused by a blocked exhaust filter or poor lubrication from contaminated oil.
Listen for new or unusual noises. A healthy pump has a consistent, smooth hum. If you suddenly hear grinding, squealing, or a loud chattering sound, it is a mechanical cry for help. Grinding often indicates bearing failure, while chattering can point to oil starvation—both are consequences of filter neglect.
Finally, use your eyes. Are you seeing oil leaks developing around the shaft seals? This can be caused by excessive internal pressure from a clogged exhaust. Is there an unusually large amount of oil mist or "smoke" coming from the exhaust? This means your oil mist eliminator is saturated and failing.
Here are the warning signs to watch for:
| Warning Sign | What It Likely Means | Associated Filter Problem |
|---|---|---|
| Poor Vacuum Level | Internal wear, restricted flow | Clogged Inlet or Oil Filter |
| Overheating | Excessive backpressure, poor lubrication | Clogged Exhaust or Oil Filter |
| Unusual Noise | Worn bearings, oil starvation | Clogged Oil or Inlet Filter |
| Oil Leaks/Mist | High internal pressure, saturated filter element | Clogged Exhaust/Oil Mist Filter |
How Can You Prevent Filter-Related Failures?
Tired of reacting to pump failures and want to prevent them from happening in the first place? The solution is simple and cost-effective. I will show you how to implement a proactive maintenance strategy.
You can prevent the vast majority of filter-related failures by implementing a strict, proactive maintenance schedule. This involves regularly inspecting and replacing all filters—inlet, oil, and exhaust—based on the manufacturer's recommendations or your specific operating conditions.
The good news is that preventing these catastrophic failures is remarkably simple and inexpensive compared to the cost of a new pump. The entire strategy can be summarized in two words: proactive maintenance.
Do not wait for the warning signs. Instead, treat your filters as the critical, consumable components they are. Create a maintenance schedule and stick to it. The frequency of replacement will depend on your specific application. A pump running in a dusty environment will need its inlet filter changed far more often than one in a clean lab. A pump handling a lot of water vapor will require more frequent oil and exhaust filter changes. Consult your pump's manual for baseline recommendations, but be prepared to adjust based on your real-world conditions.
Regular visual inspection is also key. Once a week, take 30 seconds to look at the pump. Check the oil level and clarity in the sight glass. Look at the condition of the inlet filter. Listen for any changes in sound. This simple habit can help you spot a developing issue long before it causes a breakdown.
Investing a small amount of time and money in new filters regularly is the single best investment you can make in the health and longevity of your vacuum pump. It is the difference between a pump that lasts for years and one that is a constant source of trouble.
Here's a simple preventative maintenance plan:
| Frequency | Maintenance Task | Benefit |
|---|---|---|
| Weekly | Visually inspect oil level, listen for unusual noises. | Early detection of developing issues. |
| Monthly | Inspect inlet filter condition (in dusty environments). | Prevents abrasive wear. |
| Per Schedule | Replace oil filter and exhaust/oil mist filter. | Prevents overheating and lubrication failure. |
| As Needed | Change vacuum pump oil when it appears cloudy or dark. | Maintains lubrication and sealing performance. |
Final Thoughts
A clogged filter is the most common cause of vacuum pump failure, triggering a destructive cycle of wear, overheating, and strain. By recognizing the warning signs and committing to a proactive filter replacement schedule, you can ensure your pump operates reliably for its full intended lifespan.
