How to Choose a Refrigerant Vacuum Pump?

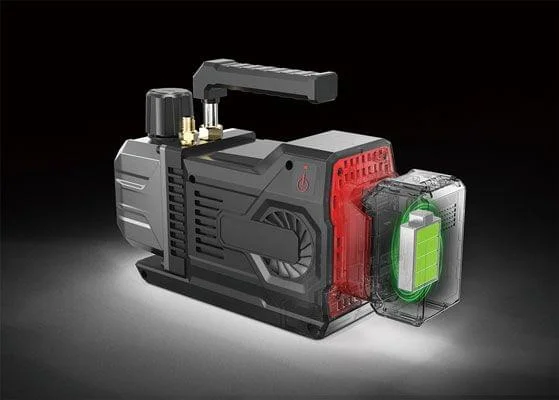

cordless hvac vacuum pump

Table of Contents

Selecting the right HVAC vacuum pump can be a challenge. An incorrect choice may lead to incomplete evacuation, potential system damage, and wasted time on the job. These are costly mistakes I have seen firsthand.

The perfect HVAC vacuum pump depends on system size, desired vacuum level (typically 500 microns or less), and job site conditions. Key factors include CFM rating, two-stage vs. single-stage design, and portability features like battery power, all crucial for thorough moisture removal and optimal AC performance.

modern HVAC vacuum pump
Choosing the right vacuum pump is one of the most critical decisions an HVAC technician makes. It is not just about pulling air out; it is about ensuring the complete removal of moisture and non-condensable gases. This is vital for the long-term health and efficiency of any air conditioning or refrigeration system. A mismatched pump can mean hours wasted on a job, or worse, a system that is doomed to fail prematurely. Through years of experience, both in the field and in supplying pumps, I have learned what truly matters when making this choice. Let us break down the essentials so you can pick your next pump with confidence.

What proper vacuum level does an HVAC system require?

Understanding the precise vacuum level your HVAC system needs is fundamental for proper system operation and longevity. This knowledge prevents common mistakes that can lead to compromised system performance.

The proper vacuum level for an HVAC system is typically 500 microns of mercury (0.5 Torr) or lower. This deep vacuum ensures that virtually all moisture has been converted to vapor and removed, preventing corrosive acid formation and ensuring optimal system efficiency and longevity.

Digital micron gauge showing a deep vacuum reading below 500 microns
Many problems I see with HVAC systems, from poor cooling to premature compressor failure, can be traced back to an improper evacuation during installation or repair. The 500-micron mark is not an arbitrary number. At this specific vacuum level, the boiling point of water is significantly lowered (around -10°F or -23°C). This allows any moisture trapped within the refrigerant lines and coils to vaporize and be effectively drawn out by the vacuum pump. If you do not pull down to this level, residual moisture can remain in the system.
Any remaining moisture is a major threat. It can freeze at the expansion device, causing blockages that starve the evaporator. More dangerously, it can mix with refrigerant and oil to form corrosive acids. These acids attack internal components like compressor windings and copper tubing, leading to costly and premature system failure.
Some manufacturers and best practices even recommend going lower, perhaps to 250-300 microns, especially for systems using POE oils which are highly hygroscopic (water-absorbing). This extra margin of dryness ensures superior system integrity. It is crucial to not only reach this deep vacuum but also to perform a standing vacuum test (decay test) to ensure the system is leak-tight and truly dry. This involves isolating the system from the pump after reaching the target vacuum and observing if the pressure rises. A significant rise indicates leaks or remaining moisture. Achieving and verifying this proper vacuum level is a hallmark of quality HVAC work. A one-stage pump can produce a rough vacuum, like 150 microns, but this is usually insufficient for proper HVAC dehydration. A two-stage pump, however, is designed to achieve a much deeper vacuum (often 15 microns or lower), making it the essential choice for thorough moisture removal in HVAC applications.

Vacuum Level and Pump Stage Suitability:

Vacuum Level Goal Significance for HVAC Recommended Pump Stage
>1000 Microns Insufficient moisture and non-condensable removal; high risk of issues. (Not recommended for HVAC)
500 Microns Industry standard for good dehydration and non-condensable removal. Two-Stage
<500 Microns Excellent dehydration, often recommended for POE oil systems. Two-Stage
150 Microns (example of rough vac) Only suitable for very basic vacuum tasks, not HVAC evacuation. One-Stage (but not for HVAC)
15 Microns (example of deep vac) Achieves excellent dryness, often a target for thorough HVAC work. Two-Stage

What CFM rating is suitable for your HVAC vacuum pump?

Determining the right CFM rating for your HVAC vacuum pump is crucial. An incorrect capacity can mean excessively long evacuation times or, conversely, overspending on an oversized pump for your typical jobs.

Vacuum pump capacity, measured in CFM (Cubic Feet per Minute), directly impacts evacuation speed for HVAC systems, with higher CFM pumps evacuating larger systems faster. Matching CFM to system tonnage and line set volume is crucial for efficient moisture removal and minimizing job time.

8CFM Vacuum Pump
Deciding on the right CFM rating for your vacuum pump is a balance between speed, cost, and the typical size of systems you will encounter. The CFM rating directly indicates how quickly the pump can remove air and moisture from your HVAC system. A higher CFM means the pump can move a larger volume of gas per minute, which translates to significantly faster evacuation times, especially for larger residential or light commercial systems. This speed is a big advantage for technicians, as it means they can complete jobs more quickly and move on to the next.

For instance, while a 2 CFM pump might technically be adequate for smaller residential systems, many technicians prefer a 4, 6, or even 8 CFM pump to get the job done faster. This reduced evacuation time directly saves labor hours. However, going too large can also have downsides. A very high CFM pump on a very small system (like a mini-split) can sometimes pull a vacuum too quickly. This might not allow enough time for all the moisture to boil off effectively, especially if good evacuation practices like using large diameter hoses and Schrader core removal tools are not followed. It can also be overkill in terms of initial cost and portability. My advice is to consider the majority of your work. If you primarily service residential systems (1.5 to 5 tons), a pump in the 4 to 8 CFM range is often a sweet spot. If you frequently work on larger commercial systems, then higher CFM pumps (10-12 CFM or more) become necessary. Always pair your pump with good quality, large-diameter vacuum hoses and a reliable micron gauge to actually see the progress and ensure complete moisture removal.

General CFM Guidelines for HVAC Systems:

System Size (Tonnage) Minimum Recommended CFM Commonly Used CFM for Speed Notes
Up to 3 tons 2 CFM 4-6 CFM Faster evacuation, good for multiple small jobs.
3 to 7.5 tons 4 CFM 6-8 CFM Good balance for most residential and light commercial.
7.5 to 15 tons 6 CFM 8-10 CFM Necessary for reasonable evacuation times on larger systems.
Over 15 tons 8-10+ CFM 10-12+ CFM or boosters Depends heavily on system volume and line set length.

How do modern HVAC vacuum pumps offer practical advantages?

Are you facing challenges with power access or portability on job sites? Modern vacuum pumps offer innovative solutions to common technician frustrations.

Modern HVAC vacuum pumps provide significant practical advantages, notably the increasing popularity of lightweight, battery-powered (cordless) models that offer exceptional portability and convenience in diverse work environments. These enhance user-friendliness, reduce setup time, and deliver high performance, despite their higher initial cost compared to traditional corded pumps.

battery-powered vacuum pump
The market has witnessed a growing trend of cordless Li-ion battery-powered vacuum pumps in recent years, and I understand why. These innovative pumps offer remarkable convenience, particularly in situations where a power supply is unavailable. This makes them ideal for AC charging in cars, servicing rooftop units, or other locations with limited access to power sources. The ease of not needing to find or run long extension cords is a massive benefit for mobile technicians, greatly enhancing efficiency and safety on job sites.

These pumps present numerous advantages, including a lightweight design, high performance, and user-friendly operation. Being unencumbered by a power cord means quicker setup and breakdown times, allowing technicians to move between jobs more efficiently. While these pumps offer great portability and convenience, it is essential to note one significant drawback: their relatively higher price. This higher cost is mainly attributed to the inclusion of an advanced battery and charger, which are significant investments. Despite this, their sheer portability and convenience make them a compelling choice for various applications, especially for professionals who prioritize mobility and quick deployment. Compared to traditional AC (corded) pumps, their ability to provide comparable performance without being tethered is a game-changer.

Practical Advantages of Modern Vacuum Pumps:

Feature/Advantage Description Impact on Technician/Job
Cordless Operation Powered by Li-ion batteries, no need for power outlet. Exceptional portability, faster setup, increased safety.
Lightweight Design Engineered for reduced weight compared to older models. Easier to carry, less physical strain, especially on rooftops.
High Performance Modern motors and pump designs ensure efficient evacuation. Reliable deep vacuum, quick job completion.
User-Friendly Operation Often feature simpler controls, better ergonomics. Reduces learning curve, minimizes operational errors.
Higher Initial Cost Due to battery and charging technology. Requires upfront investment, but offers long-term convenience.

How do additional features and pump weight influence your final choice?

Beyond core performance, seemingly small details like pump weight and specific features can significantly impact your daily work. Overlooking these aspects can lead to unexpected frustrations.

When choosing an HVAC vacuum pump, its weight is a critical factor for portability and ease of transport, especially for residential work where lighter models (under 10 kg) are preferred. Additional features like a gas ballast valve, anti-suckback mechanism, and oil sight glass also enhance pump longevity, performance, and overall user convenience.

Two-Stage Vacuum Pump
Initially, it might be tempting to overlook factors like pump weight, but as you start using the pump frequently, you will quickly realize its importance. If you are a residential HVAC technician, constantly moving your tools between job sites, lifting pumps into vans, and potentially carrying them up ladders, a heavy pump can quickly become a significant burden. In general, opting for a pump weighing less than 10 kg is a wise choice for residential purposes, as it greatly improves portability and reduces physical strain. However, it is worth double-checking if a heavier pump is truly necessary to achieve faster and deeper vacuum evacuations for very large or specialized systems, though often modern designs balance weight with performance.

Beyond weight, various built-in features can differentiate pumps and add significant value. A gas ballast valve, for instance, helps purge moisture from the pump oil, extending oil life and improving pump performance when dealing with systems that contain a lot of water vapor. An anti-suckback valve is another crucial safety feature, preventing pump oil from being drawn back into the clean AC system if the pump loses power unexpectedly. A clear oil sight glass allows for easy monitoring of oil level and condition, ensuring you know when it is time for a change. Features like thermal overload protection safeguard the motor. These elements might add slightly to the pump’s cost, but they enhance durability, simplify maintenance, and protect your long-term investment by preventing costly system contamination or pump damage.

Features & Weight Considerations:

Feature/Consideration Importance Benefit to User
Weight Impacts portability and physical strain during transport. Easier to carry, reduced fatigue, especially for mobile techs.
Gas Ballast Valve Prevents oil contamination from condensable vapors. Extends oil life, maintains pump performance, reduces maintenance.
Anti-Suck-Back Valve Protects AC system from pump oil backstreaming. Prevents costly system contamination, enhances reliability.
Oil Sight Glass Allows quick visual check of oil level and condition. Simplifies maintenance, ensures proper lubrication.
Build Quality & Durability Ensures pump withstands professional use. Longer lifespan, fewer repairs, reliable performance.

Balancing performance and cost to choose the best HVAC vacuum pump

Facing a seemingly endless range of vacuum pumps, how do you make the ultimate decision without overspending or sacrificing quality? It is about finding the right balance for your specific needs.

To choose the best HVAC vacuum pump, balance budget with crucial factors like optimal performance (two-stage, appropriate CFM), portability, and essential features that enhance longevity and convenience. Prioritize value by considering brand reputation, warranty, and available support, ensuring the pump perfectly suits your typical workload.

budget vacuum pump

When it comes to the final decision on choosing an HVAC vacuum pump, cost is always a factor, but it should never be the only factor. I have seen many people tempted by the cheapest options, only to face higher long-term costs due to poor performance, frequent breakdowns, or inadequate evacuation that leads to system issues. While many well-known international brands produce their pumps in China, and even the most economical models on platforms like Amazon also originate from China, there is a vast difference in quality, materials, and internal components that is not always obvious at first glance.

Therefore, rather than just focusing on the price tag, I encourage you to check your budget and then find out what is really important for you. Prioritize aspects like the pump’s performance (ensuring it is a two-stage model and has the CFM suitable for your common jobs), its weight and ease of use (especially if you need portability), and the inclusion of critical features like a gas ballast valve or anti-suck-back mechanism. Also, consider the brand’s reputation and the warranty offered. A reputable brand often means better build quality, more consistent performance, and reliable customer support down the line. By doing so, you will gain a clear understanding of how to choose a refrigerant vacuum pump that perfectly suits your requirements, offering the best value for your investment and ensuring efficient, reliable HVAC service.

Decision Factors for Optimal Pump Choice:

Decision Factor Consideration Impact on Choice
Budget Your financial limit for the purchase. Sets the range of options, but balance with value.
Performance Needs Required vacuum level (microns) & evacuation speed (CFM). Dictates stage type (two-stage) and CFM rating.
Portability/Ease-of-Use How often pump is moved, power access on job sites. Influences weight, battery vs. corded choice, ergonomic design.
Features Set Gas ballast, anti-suck-back, sight glass, etc. Adds convenience, protection, and longevity.
Brand & Warranty Reputation for quality and post-purchase support. Ensures reliability and long-term value.

Final Thoughts

Choosing the perfect HVAC vacuum pump means matching CFM to system sizes, always opting for two-stage, and considering job site power. This ensures optimal evacuation, system efficiency, and longevity.
