You're on a job and want to get it done fast. It seems logical that a bigger vacuum pump with a higher CFM rating would pull a vacuum faster, but this can be a costly mistake.
A bigger pump is not always better because the true speed of evacuation is limited by your hoses and fittings. An oversized pump can also freeze moisture in the system, making it impossible to remove and leading to a failed job.
In my 10 years in the vacuum industry, one of the most common and expensive misconceptions I see is the belief that a higher CFM (cubic feet per minute) rating on a pump will magically speed up every job. Technicians invest in massive pumps only to find their evacuation times don't improve, or worse, they start having new problems they can't explain. The truth is, a vacuum system is only as fast as its most restrictive point. Often, that isn't the pump at all. Let's break down why "right-sized" beats "oversized" almost every time.

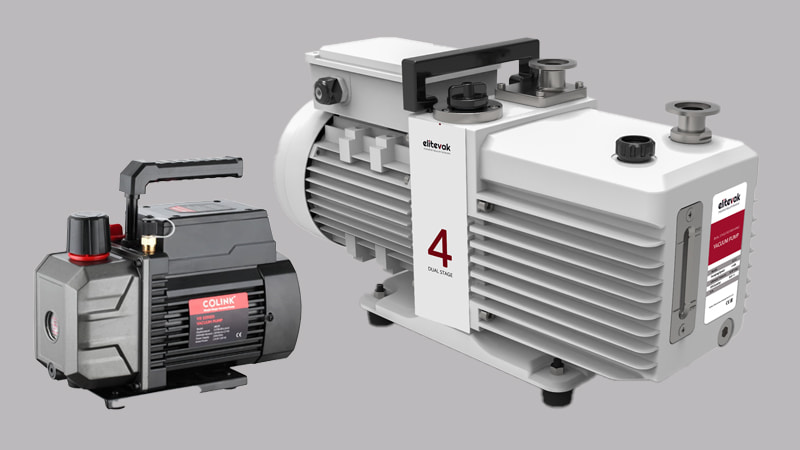

Can a vacuum pump be too big for the job?
You want the fastest evacuation possible, so buying the biggest pump seems like a smart investment. But you might be spending extra money for zero extra performance.
Yes, a pump can absolutely be too big. If your hoses and fittings are restrictive, a high-CFM pump can't work at its full potential, making it an expensive and inefficient choice for smaller systems.

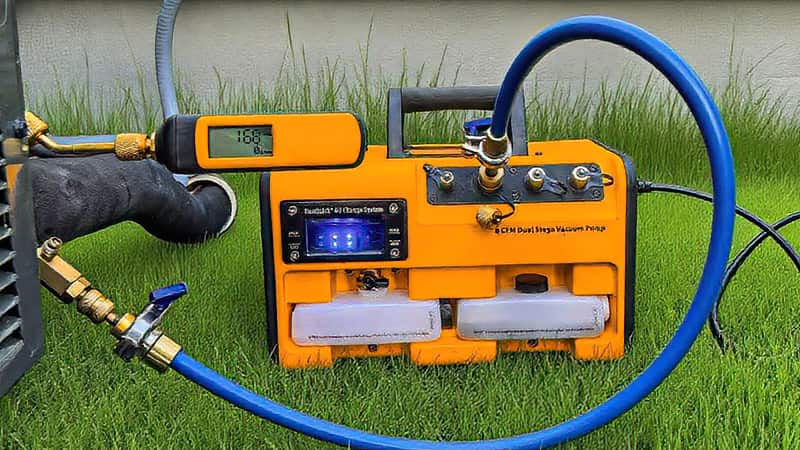

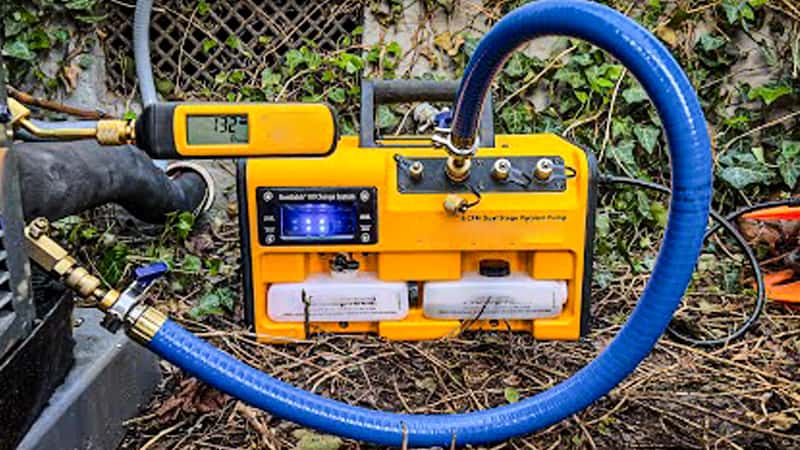

Think of it like this: you can have a massive, powerful fire hose, but if you connect it to a tiny garden sprinkler, the amount of water that comes out is limited by the sprinkler, not the hose. Your vacuum pump is the fire hose, and your ¼-inch hoses and Schrader valve cores are the tiny sprinkler. In my experience, for most residential and light commercial work (up to 5-7 tons), the pump's CFM is rarely the limiting factor. The real bottlenecks are the tools connecting the pump to the system.
| Component | The Problem | The Solution |
|---|---|---|
| ¼" Hoses | High friction, extremely low flow rate. | Upgrade to ½" or larger hoses. |
| Schrader Cores | Creates a tiny opening that chokes the flow. | Use a core removal tool to open the full port. |
| Manifold Gauges | The small passages inside can be restrictive. | Connect directly with core tools for fastest evacuation. |
Spending money on larger hoses and core removal tools will give you a much bigger speed improvement on a standard residential system than upgrading from a 4 CFM pump to an 8 CFM pump.

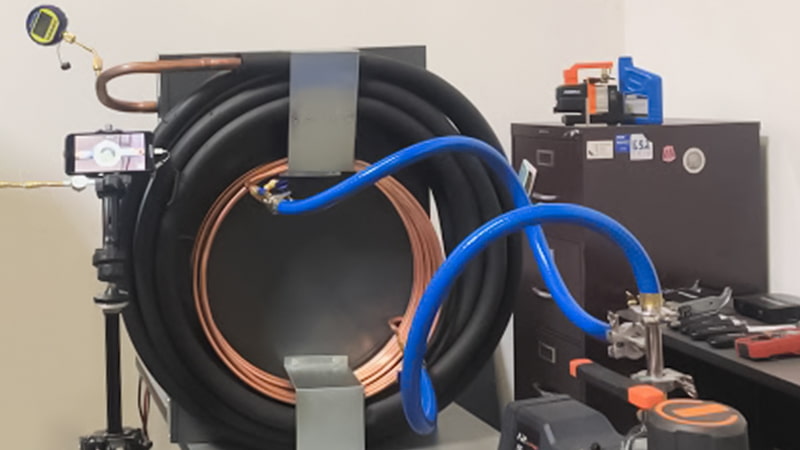

What problems can an oversized vacuum pump actually cause?
It seems counter-intuitive that a more powerful pump could actually be harmful. You assume it will just pull everything out faster, but it can trap the one thing you're trying to remove most: moisture.
An oversized pump can cause moisture to freeze. The extremely rapid pressure drop creates a rapid temperature drop, turning liquid water into solid ice, which is much, much harder to remove from the system than water vapor.
This is the most dangerous consequence of using a pump that is too big for the system volume. It's basic physics: when you rapidly decrease the pressure on a gas (or a liquid turning into a gas), its temperature plummets. You’ve felt this yourself when a can of compressed air gets ice-cold during use. The same thing happens inside an HVAC system. A high-CFM pump drops the pressure so fast that any liquid water in the system can flash-freeze into ice.
Why is this so bad? Because ice has an incredibly low vapor pressure. At these cold temperatures, it will barely sublimate (turn from a solid directly to a gas). Your vacuum pump can only remove gases and vapors, so the solid ice just sits there. Your micron gauge will show a fantastic, deep vacuum because the ice isn't releasing any vapor, fooling you into thinking the system is dry. But as soon as the system warms back up, that ice will melt, releasing liquid water back into the refrigerant and oil, dooming the compressor. A smaller, correctly-sized pump lowers the pressure more gradually, allowing the water to boil off into vapor without the extreme temperature drop, so it can be successfully removed.

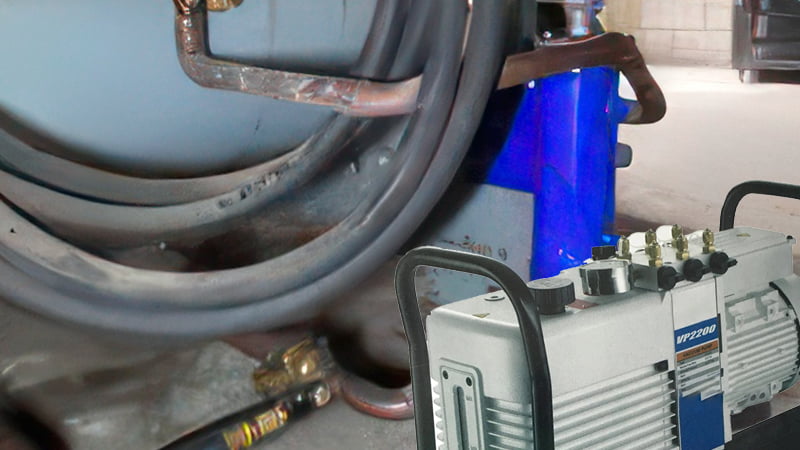

So, is a large vacuum pump ever the right choice?
Now you might be afraid of big pumps altogether. But on a huge commercial job, you know a small pump will have you waiting on the roof all day.
Yes, a large pump is absolutely necessary for evacuating very large commercial or industrial refrigeration systems. It is also the right tool when removing large quantities of liquid water from a system that is known to be flooded.
It's all about matching the tool to the job. While an 8 or 10 CFM pump is overkill for a 3-ton residential split, it's essential in other scenarios. I help clients select high-CFM pumps for two main reasons:
- Large System Volume: A 50-ton commercial rooftop unit has a massive internal volume compared to a home AC. Here, the volume of air itself is the main challenge. You need a high CFM rating just to move that amount of air in a reasonable amount of time. The pump is no longer oversized; it's correctly sized for the large volume.
- Heavy Dehydration: If a system has a major leak and has been flooded with a significant amount of liquid water (not just humidity), the game changes. Your main task is to remove a large volume of water vapor as the liquid boils off. A high-CFM pump, often with the gas ballast wide open, can move this high volume of vapor out of the system much more effectively than a small pump. The risk of freezing is still present, but the need to remove a large quantity of vapor takes priority.
Final Thoughts
The goal is not the biggest pump, but the most balanced system. For most jobs, investing in better hoses and technique will beat a bigger pump every time. Match the pump to the system.
