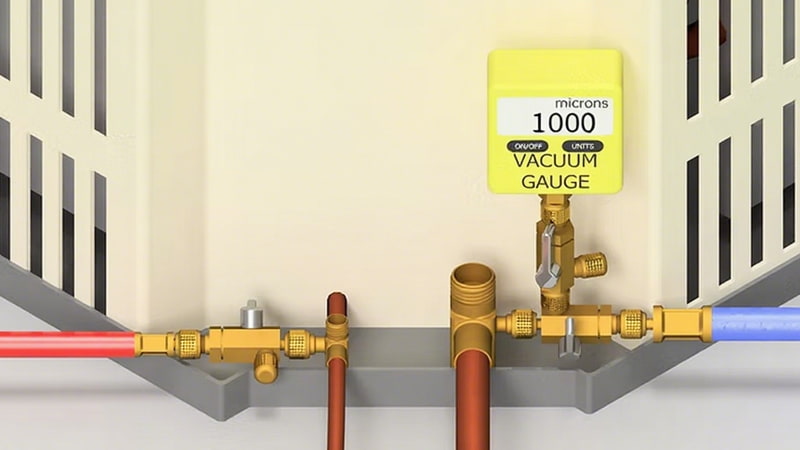

You're on a big job, the clock is ticking, and your vacuum gauge is stuck. You've tried everything, but the pressure just won't drop. It’s a frustrating and costly delay.
Your HVAC vacuum is likely slow due to three factors: a restrictive setup with small hoses, a standard-duty pump that can't handle the load of a large system, and stubborn moisture that your current process can't effectively remove. Solving this requires both better technique and better equipment.
I’ve spent over a decade in the vacuum pump industry, and this is a story I hear all the time. The real solution isn't just about working harder; it's about understanding the physics of the problem. Too often, technicians are given tools that are simply not designed for the demands of large commercial systems like 50-ton chillers. They are fighting an uphill battle with equipment that is destined to be a bottleneck. Let's break down where the real problems lie and how to solve them for good.
Is Your Pump's Nameplate Lying About Its Power?
You bought an 8 CFM pump, but it performs just like your old 6 CFM model. You feel cheated, and you're right to be suspicious. The numbers on the side of the pump don't always tell the whole story.

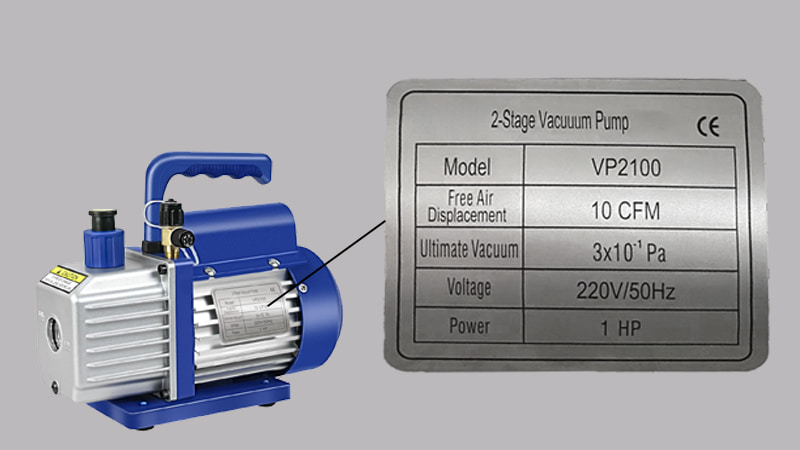

Yes, the CFM rating on a pump's nameplate is often misleading. It typically represents the pump's "free air displacement," which is a theoretical maximum calculated at atmospheric pressure. The pump's actual performance at deeper vacuum levels, where it matters most, can be significantly lower.
This is one of the dirty little secrets of the industry, and it affects nearly all brands and models of portable HVAC pumps. Manufacturers market the biggest, most impressive number they can, but that number doesn't reflect real-world performance. A cheaply made 8 CFM pump might actually be outperformed by a well-built 6 CFM pump once you get into a deep vacuum.
The Difference Between Theory and Reality
Think of it like a car's top speed. A car might theoretically be able to go 150 mph, but that doesn't matter if its engine overheats and loses power after just 10 minutes of hard driving. It's the same with vacuum pumps.
| Performance Metric | What the Nameplate Says | What Really Matters |
|---|---|---|
| CFM Rating | Theoretical "Free Air Displacement" | Actual flow rate at working vacuum levels |
| Pump Design | Focus on marketing a high number | Quality of internal parts, motor efficiency |
| Result | Misleading performance expectations | Slower pump-down times than advertised |
This is why, in the industrial world, we focus on performance curves, not just a single number. We want to know how the pump performs under the actual conditions it will face. An industrial-duty pump is engineered to deliver its stated performance consistently, even under heavy load. When you choose an industrial pump, you are paying for real, verifiable performance, not just a number on a sticker.
Is Your Setup Choking Your Pump's Real Power?
You have a quality pump, but the performance is still slow. It feels like all that power is being wasted, and frankly, it is. The pump isn't the problem... yet.

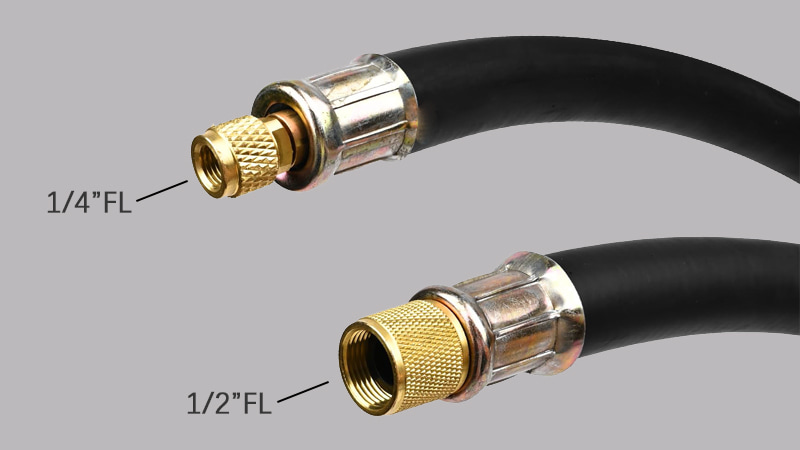

Yes, your setup is almost certainly choking your pump. Even with a genuinely powerful pump, the single biggest factor slowing down your vacuum is the restrictive path created by standard 1/4-inch hoses and the tiny openings in service valve cores. This creates a bottleneck.

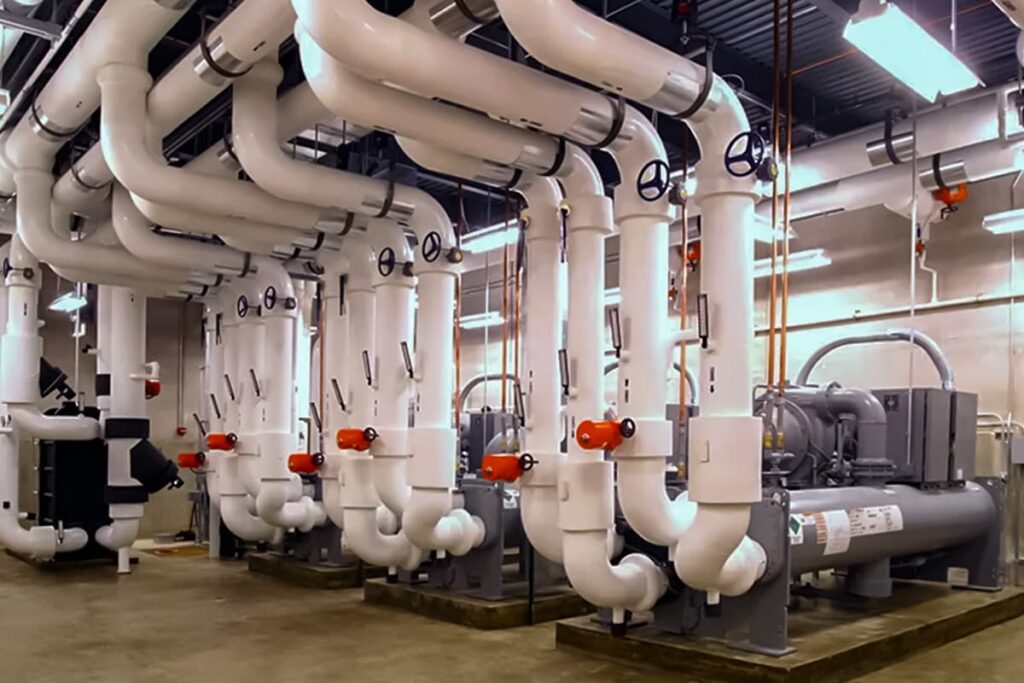

I once consulted on a job with a new 50-ton chiller where the team was stuck for hours. The first thing I pointed out was their single, skinny 1/4-inch hose. The ability for gas to flow is called conductance. By using that small hose, they had created a massive traffic jam.
The solution was simple and immediate. We swapped it for two 1/2-inch vacuum-rated hoses and used valve core removal tools. Think of it this way: you can't drain a swimming pool through a drinking straw, no matter how powerful your pump is. You need a fire hose. This simple change can increase your speed more than doubling your pump's (real) CFM.
What If Your Pump Simply Can't Handle the Moisture?
You've upgraded your hoses and confirmed your pump is a solid performer, but the vacuum on that large, wet system is still stalling. You hear your pump making strange noises. You're not just fighting time; you're fighting your pump's core design limitations.
Your pump can't handle the moisture because standard HVAC pumps are very sensitive to water vapor. It contaminates their oil quickly. In contrast, an industrial-duty pump is designed with a professional gas ballast system that protects the oil and allows the pump to handle much more vapor without losing performance.
On that 50-ton chiller job, after fixing the hoses, we hit the next wall: moisture. The technician's portable pump began to sound different, a sign that its oil was getting saturated with water. This is a critical failure point. When the oil is contaminated, the pump can no longer pull a deep vacuum.

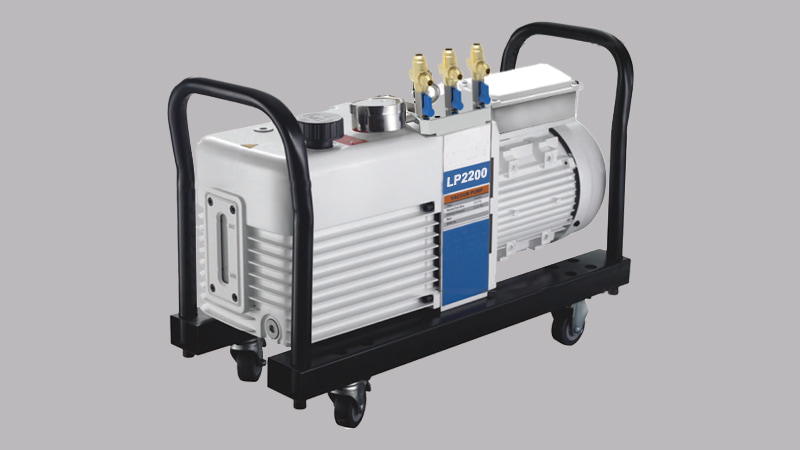

This is where an industrial 2-stage rotary vane pump, like our 24 m³/h unit, truly shines. It's built for wet industrial processes. Its superior gas ballast introduces a small amount of air into the pump during the compression stage. This keeps the water vapor as a gas, so it gets exhausted out of the pump instead of condensing into the oil.
This ability to handle a high vapor load continuously is what separates a professional tool from a standard one. It means you can tackle the wettest systems without fear of pump failure or a mid-job oil change.
Final Thoughts
Stop fighting misleading specs and underbuilt tools. For large HVAC jobs, you need proven performance. Combine smart techniques with an industrial-duty pump designed for real-world conditions, and you will achieve a fast, deep, and reliable vacuum every single time.
