Wondering if you can skip the refrigerant scale and still get an accurate AC charge? While shortcuts exist, they often lead to system inefficiencies and potential damage. I've seen the consequences.
While methods like pressure/temperature charts or "superheat/subcooling" exist, a refrigerant scale is considered best practice because it provides the most accurate and direct measurement of refrigerant by weight, crucial for optimal HVAC system performance and longevity.
In my years in the HVAC industry, I've heard many discussions about charging methods. The refrigerant scale is a tool I always emphasize, yet some technicians look for alternatives, perhaps thinking they can save time or that other methods are "good enough." However, modern air conditioning and refrigeration systems are precision-engineered. They rely on a very specific amount of refrigerant to operate efficiently and reliably. My insight is that truly understanding the function of a refrigerant scale and how to operate it correctly is fundamental. Deviating from charging by weight, especially on new installations or after major repairs, is often a gamble with the system's health and the customer's energy bills. Let's explore why the scale reigns supreme and what the limitations of other methods are.
What is the difference between a refrigerant scale and a regular scale?

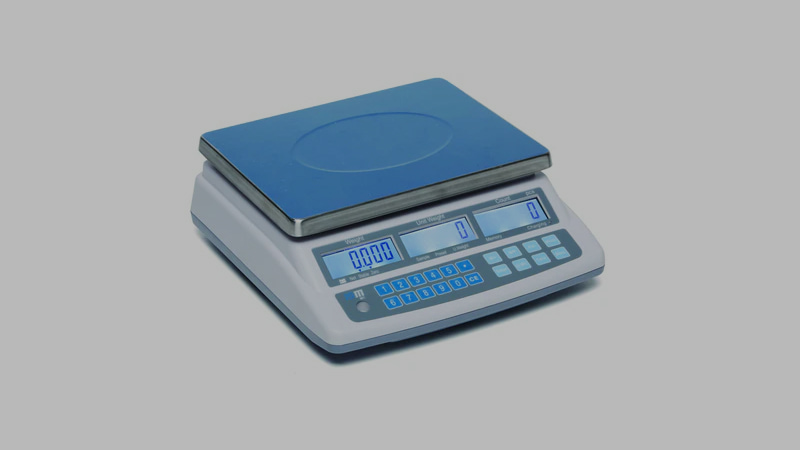

You might see various scales in a workshop, but is a refrigerant scale just a regular weighing scale with a different label? There are key distinctions tailored for HVAC work.

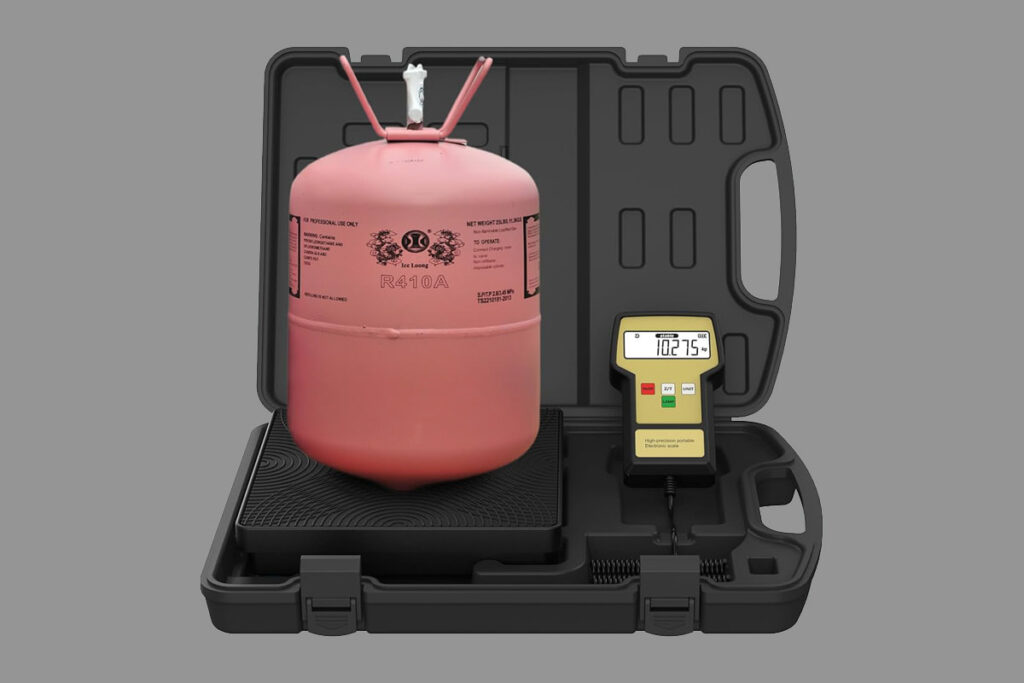

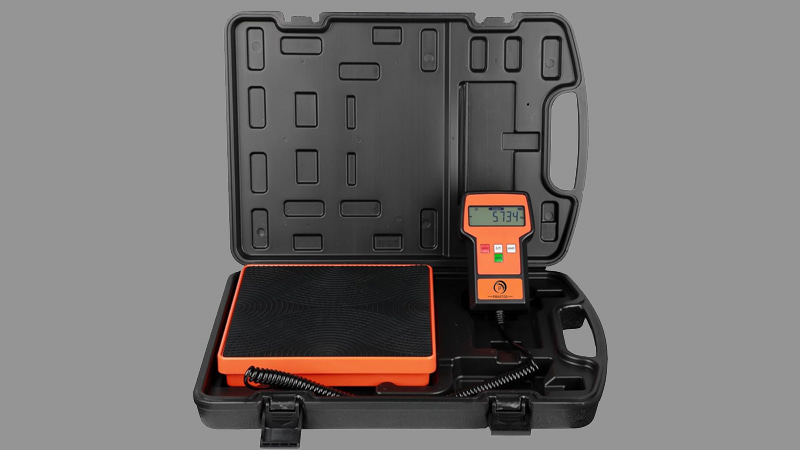

A refrigerant scale is specifically designed for HVAC tasks, featuring high accuracy for small weight increments, a platform to hold refrigerant cylinders, and often a programmable charging or recovery feature. Regular scales may lack this precision, durability, or specific functionality.
When I discuss refrigerant scales, it's important to clarify they aren't just any old weighing device. While both a refrigerant scale and a regular bathroom or kitchen scale measure weight, their design, precision, and features are quite different, tailored to their specific purposes. A refrigerant scale is engineered for the demanding environment of HVAC work. It needs to be robust enough to handle being transported to job sites and to support the weight of refrigerant cylinders, which can be quite heavy. More importantly, it must be highly accurate and precise, often measuring in fractions of an ounce or grams (e.g., 0.25 oz or 5-10g resolution). This level of precision is vital because HVAC systems are critically charged; even a small error in the refrigerant amount can significantly affect performance.
Many refrigerant scales also have a tare function (to zero out the weight of the cylinder and hoses) and a charging/recovery function. This allows a technician to program the exact weight of refrigerant to be added or removed, and the scale might even alarm or control a valve when that target is reached. You won't find these specific HVAC-related features on a general-purpose scale. A regular postal scale, for example, might be accurate for letters, but it's not designed for the weight capacity or the fine resolution needed for refrigerant charging. Using an inappropriate scale can easily lead to an incorrect charge, which, as I've seen many times, causes more problems down the line.
Key Distinguishing Features of Refrigerant Scales:
- High Accuracy & Resolution: Designed to accurately measure small increments of weight (e.g., ±0.25 oz or ±10g). This is crucial because HVAC systems have very precise refrigerant charge requirements.
- Weight Capacity: Built to handle the weight of full refrigerant cylinders (e.g., 30 lb, 50 lb, or larger) plus hoses.
- Durable Construction: Made to withstand the rigors of field use, often with a sturdy platform and protective casing.
- Specific HVAC Functionality (in many models):
- Tare Function: Allows zeroing out the weight of the cylinder and hoses for accurate measurement of refrigerant transferred.
- Programmable Charging/Recovery: Allows setting a target weight, and the scale may alarm or control a solenoid valve when the target is met.
- Units of Measure: Easily switchable between pounds/ounces and kilograms/grams.
- Platform Design: Often features a platform appropriately sized and shaped to securely hold refrigerant cylinders.
- Portability: While robust, many are designed to be reasonably portable for job site use.
| Feature | Refrigerant Scale | Regular Scale (e.g., Kitchen/Postal) | Why it Matters for HVAC |
|---|---|---|---|
| Accuracy | High (e.g., ±0.05% rdg, ±0.25oz) | Varies, often lower for small increments. | Critical for precise refrigerant charge. |
| Capacity | High (e.g., 110 lbs, 220 lbs / 50kg, 100kg) | Lower (e.g., 10 lbs / 5kg) | Needs to support full refrigerant tanks. |
| Resolution | Fine (e.g., 0.1 oz, 5g) | Coarser | Allows for precise measurements. |
| Durability | Built for field use. | Often designed for lighter, indoor use. | Withstands job site conditions. |
| Special Features | Programmable charge, tare, HVAC units. | Basic weighing, tare. | Streamlines the charging process. |
What is an alternative refrigerant?
The term "alternative refrigerant" often comes up in HVAC discussions, especially concerning environmental regulations. But what does it actually mean, and how does it relate to charging practices?

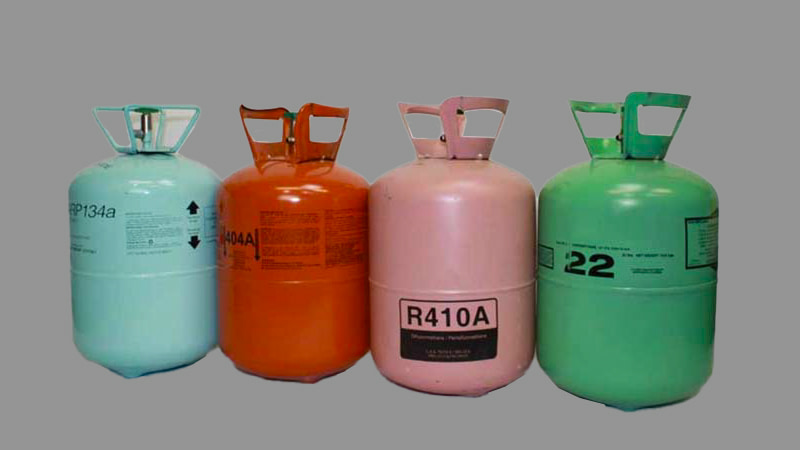

An alternative refrigerant is a substance used in cooling cycles that has a lower Global Warming Potential (GWP) and/or Ozone Depletion Potential (ODP) than older refrigerants like CFCs and HCFCs. Examples include HFCs (like R-410A, R-134a), HFOs, and natural refrigerants like CO2 or hydrocarbons.
When I started in this industry, refrigerants like R-12 and R-22 were commonplace. However, due to their harmful effects on the ozone layer and their high global warming potential, they have been phased out or are in the process of being phased down in many parts of the world. This has led to the development and adoption of "alternative refrigerants." These are fluids that can perform the same heat transfer job in an air conditioning or refrigeration system but with a significantly reduced environmental impact. The first wave of widely adopted alternatives included Hydrofluorocarbons (HFCs) like R-410A (which replaced R-22 in many residential ACs) and R-134a (common in automotive AC and some refrigeration).
Now, we are seeing a further transition to even lower GWP alternatives, such as Hydrofluoroolefins (HFOs) like R-1234yf (for automotive) and R-513A, as well as an increased interest in "natural" refrigerants like CO2 (R-744), ammonia (R-717), and hydrocarbons (HCs) like propane (R-290) and isobutane (R-600a). Many of these alternative refrigerants, especially the blended ones (like R-410A or R-407C), have specific charging requirements. For instance, blended refrigerants must be charged as a liquid from the cylinder to ensure the correct composition of the blend enters the system. This reinforces the importance of accurate weighing with a refrigerant scale, as proper charge is critical for these newer, often more sensitive, systems to operate efficiently and safely.
Categories of Alternative Refrigerants:
- Hydrofluorocarbons (HFCs):
- Examples: R-134a, R-410A, R-407C, R-32.
- Characteristics: Zero Ozone Depletion Potential (ODP), but many still have relatively high Global Warming Potential (GWP). Currently undergoing phase-downs in many regions.
- Hydrofluoroolefins (HFOs):
- Examples: R-1234yf, R-1234ze, and blends containing HFOs (e.g., R-513A, R-454B).
- Characteristics: Very low GWP and zero ODP. Many are mildly flammable (A2L classification).
- Natural Refrigerants:
- Examples:
- Hydrocarbons (HCs): R-290 (propane), R-600a (isobutane).
- Carbon Dioxide (CO2 / R-744).
- Ammonia (NH3 / R-717).
- Characteristics: Very low to zero GWP and zero ODP. However, HCs are highly flammable (A3), CO2 operates at very high pressures, and ammonia is toxic and mildly flammable. Each requires specific equipment design and safety precautions.
- Examples:
| Refrigerant Type | ODP | GWP Range | Flammability | Key Considerations |
|---|---|---|---|---|
| CFCs (e.g., R-12) | High | Very High | Low | Phased out (Montreal Protocol). |
| HCFCs (e.g., R-22) | Low | High | Low | Phased out/down in most developed countries. |
| HFCs (e.g., R-410A) | Zero | Moderate to High | Low (mostly) | GWP reduction targets leading to their phase-down. |
| HFOs (e.g., R-1234yf) | Zero | Very Low | Low (A2L) | Newer generation, requires A2L compatible equipment. |
| Hydrocarbons (HCs) | Zero | Very Low | High (A3) | Strict charge limits, specific safety standards. |
| CO2 (R-744) | Zero | 1 (Baseline) | Low (A1) | Very high operating pressures, specialized equipment. |
Why is it important to weigh refrigerant when charging a system?
Many technicians rely on pressure readings or line temperatures, but why do manufacturers and experienced pros consistently stress the importance of weighing the refrigerant charge? It's about precision and avoiding a cascade of problems.
Weighing refrigerant when charging a system is critically important because it's the most accurate method to ensure the precise manufacturer-specified charge is installed. Incorrect charge levels drastically reduce efficiency, cooling capacity, and can lead to severe component damage like compressor failure.
I cannot overstate the importance of this. Air conditioning and refrigeration systems are designed as critically charged systems. This means they are engineered to operate optimally with a very precise amount (mass) of refrigerant. The manufacturer determines this ideal charge through extensive testing and engineering. This specified weight is usually clearly printed on the unit's data plate. Deviating from this specified weight, even by a seemingly small amount (e.g., 10-15%), can have significant negative consequences.
If a system is undercharged, there isn't enough refrigerant to properly absorb heat in the evaporator. This leads to reduced cooling capacity, longer run times, higher energy consumption, and potential issues like the evaporator coil freezing up or the compressor overheating due to insufficient cooling from the returning suction gas. If a system is overcharged, it can lead to excessively high pressures and temperatures, especially on the high side. This puts tremendous strain on the compressor, increases energy use, reduces cooling efficiency (as the condenser can't effectively reject heat), and can cause liquid refrigerant to flood back to the compressor ("liquid slugging"), which is a very quick way to destroy it. Using a refrigerant scale to weigh in the exact charge is the only way to be certain you're meeting the manufacturer's design specifications, thereby ensuring the system operates as efficiently, reliably, and for as long as it was designed to. Understanding the scale's proper function and operation is therefore paramount.
Consequences of Incorrect Refrigerant Charge:
- Reduced Efficiency:
- Undercharge: The system has to run longer to achieve the desired cooling, wasting energy.
- Overcharge: The compressor works harder against higher pressures, and heat exchange is impaired, also wasting energy.
- Decreased Cooling/Heating Capacity: The system will not be able to deliver its rated cooling or heating output.
- Component Damage:
- Undercharge: Can lead to compressor overheating (due to poor cooling by suction gas) and potential oil return issues.

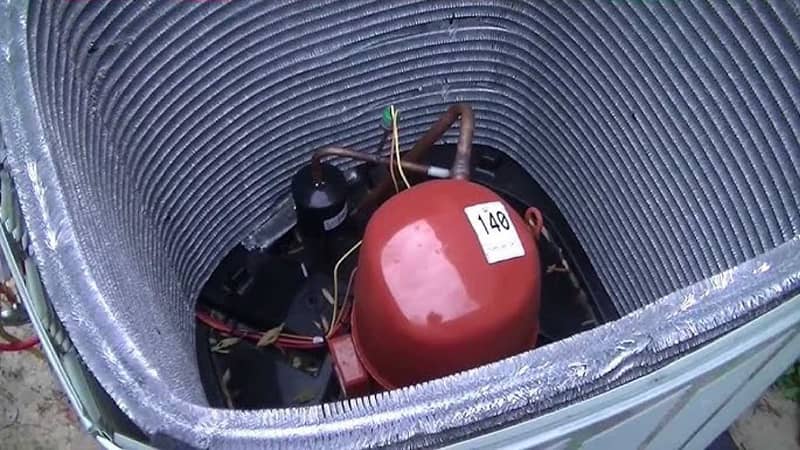

- Overcharge: Can cause liquid slugging in the compressor (leading to mechanical failure), excessive pressure on components, and compressor burnout.
- Increased Operational Costs: Higher electricity bills due to inefficiency and potential for expensive repairs due to premature component failure.
- Shortened System Lifespan: Constant operation outside of design parameters puts undue stress on all components, leading to a shorter overall life for the HVAC unit.
| Charge Status | Impact on Efficiency | Impact on Cooling Capacity | Risk to Compressor |
|---|---|---|---|
| Undercharged | Significantly Reduced | Reduced | Overheating, poor lubrication. |
| Correctly Charged | Optimal | Optimal | Normal operation, designed lifespan. |
| Overcharged | Significantly Reduced | Can be Reduced | Liquid slugging, high pressure, overheating. |
What is the purpose of a refrigerant scale?
Beyond just weighing, what specific roles does a refrigerant scale play in the daily work of an HVAC technician? Its purpose extends to accuracy, compliance, and efficient refrigerant management.
The purpose of a refrigerant scale is to accurately measure the precise weight of refrigerant being added to (charged) or removed from (recovered) an HVAC system. This ensures compliance with manufacturer specifications, optimizes system performance, aids in diagnostics, and helps manage refrigerant inventory.

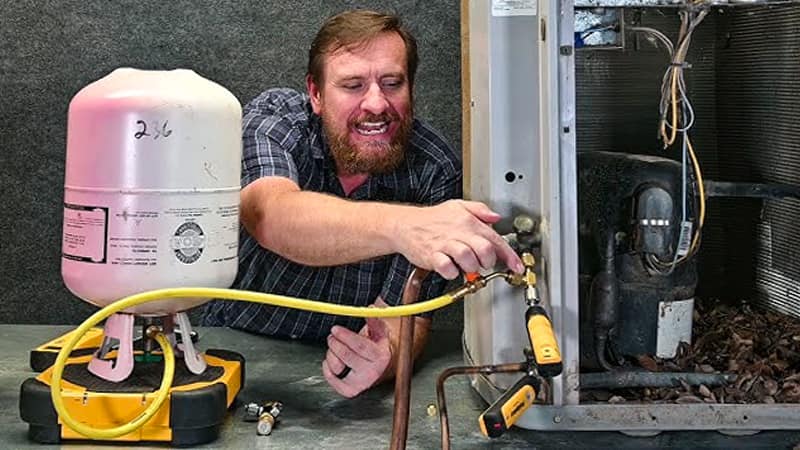

The most fundamental purpose of a refrigerant scale is to enable accurate charging by weight. As we've discussed, this is the method overwhelmingly recommended by equipment manufacturers to ensure their systems receive the precise refrigerant charge needed for optimal operation. When installing a new system or after a complete evacuation and repair, weighing in the charge is the definitive way to get it right. But the scale's utility doesn't end there. It's also crucial for refrigerant recovery. When removing refrigerant from a system (e.g., before a repair or when decommissioning a unit), regulations often require you to record the amount recovered. A scale allows you to do this accurately.
Furthermore, a refrigerant scale aids in diagnostics. If you recover the charge from a malfunctioning system and weigh it, you can determine if the system was significantly undercharged (indicating a leak) or overcharged. This information is vital for troubleshooting. It also helps in refrigerant inventory management. By weighing a cylinder before and after a job, you know exactly how much refrigerant was used, which is important for billing, tracking usage, and knowing when to reorder. Many modern scales also have features like programmable charge amounts, which can streamline the process and reduce the chance of error. As I always say, understanding how to use this tool properly isn't just about following rules; it's about being a more effective, efficient, and professional technician.
Key Purposes and Uses:
- Precise Charging: To ensure the exact manufacturer-specified weight of refrigerant is added to a new or repaired system. This is its primary and most critical function for system performance.
- Accurate Recovery Measurement: To weigh the amount of refrigerant removed from a system during recovery operations, essential for compliance (e.g., EPA regulations) and for knowing the system's previous state.
- System Diagnostics:
- Determining if a system was undercharged (likely indicating a leak).
- Determining if a system was overcharged (indicating a previous incorrect service).
- Refrigerant Inventory Management:
- Tracking the amount of refrigerant used from a supply cylinder.
- Knowing how much refrigerant remains in a cylinder.
- Preventing Over/Undercharging: The direct measurement helps avoid the guesswork associated with other less precise methods like charging by pressure/temperature charts alone, especially for critical charges or blended refrigerants.
- Ensuring Proper Blend Composition: For zeotropic refrigerant blends (e.g., R-407C), which must be charged as a liquid to maintain their correct component ratios, weighing is the most reliable way to ensure the full, correct charge is introduced.
| Purpose of Scale Use | Benefit to Technician/System | Common Scenario |
|---|---|---|
| Charging by Weight | Optimal performance, efficiency, meets manufacturer specs. | New installations, recharging after full evacuation/repair. |
| Measuring Recovered Amount | EPA compliance, diagnostic information, accurate record-keeping. | Decommissioning units, preparing for system repairs. |
| Diagnosing Charge Issues | Identifies if system was previously under or overcharged. | Troubleshooting poorly performing systems. |
| Inventory Tracking | Manages refrigerant stock, accurate job costing. | Tracking usage per job, knowing when to reorder refrigerant. |
| Programmable Charging | Increases accuracy, prevents accidental over/undercharging. | Charging multiple identical systems, ensuring precision. |
Closing Summary
While alternatives exist, a refrigerant scale is best practice for accurate charging. It ensures optimal HVAC performance, efficiency, and longevity by precisely matching the manufacturer's specified refrigerant weight.
