You've just demolded your latest project, only to find it riddled with tiny, cloudy bubbles. It's a frustrating waste of time and expensive materials, turning a potential masterpiece into a flawed prototype.
The best vacuum chamber depends on your project size. Start with a chamber that fits your largest mold, then choose a two-stage vacuum pump with a CFM rating appropriate for that chamber's volume. This combination is the key to perfectly clear, bubble-free results.
After years of working with vacuum technology, I've seen how professional equipment can solve common frustrations. For crafters and woodworkers, the vacuum chamber is that tool. Torches and slow stirring can only do so much; a vacuum chamber physically rips the dissolved air out of your materials, guaranteeing a professional-quality, crystal-clear finish. Let's walk through how to choose the right setup for your workshop.
Will a vacuum chamber really get bubbles out of my resin?
You've heard a vacuum chamber is the solution, but you're skeptical. You need to know if it's truly effective before you invest in the equipment.
Yes, a vacuum chamber is the most effective way to remove bubbles (degas) from liquid resins like epoxy and silicone before you pour them. The vacuum causes trapped air bubbles to expand hundreds of times in size, forcing them to rise to the surface and pop.
The process is based on simple physics. When you place your container of mixed resin inside the chamber and start the pump, the air pressure inside drops. This drastic pressure drop makes the tiny, invisible air bubbles trapped in the resin expand dramatically. The resin will look like it's boiling—but it's not hot! This is just the air violently escaping.
The most critical tip I can give anyone starting out is to use a mixing container that is at least 3 to 4 times the volume of your resin. The resin will expand and rise significantly during this process. If your container is too small, you'll have a huge, sticky mess to clean up inside your chamber.
Beyond the Gauge: What Vacuum Level Do You Really Need?
Your analog gauge reads "29 inHg," but you're still getting micro-bubbles. This is because the gauge isn't telling you the whole story.
For a truly professional, glass-like finish, you must pull a vacuum below 1,000 microns. While a standard gauge will read "29 inHg" easily, this is a rough vacuum. The deep vacuum measured in microns is what removes the stubborn, dissolved gases that cause cloudiness.
This is the most important concept for serious crafters to understand. The analog gauge on most chambers is a great indicator, but it's not a precise measurement tool for deep vacuum.
- inHg (Inches of Mercury): Measures how far below atmospheric pressure you are. A reading of 29 inHg just means you've removed most of the air. It's a rough vacuum, equivalent to about 23,000 microns.
- Microns: Measures the absolute pressure remaining in the chamber. The scale goes from atmospheric pressure (approx. 760,000 microns) down towards the theoretical limit of a perfect vacuum.
Getting from 23,000 microns (29 inHg) down to below 1,000 microns is the difference between an "OK" result and a "perfect" one. This final, deep pull is what extracts the most difficult micro-bubbles and ensures your casting is crystal clear.

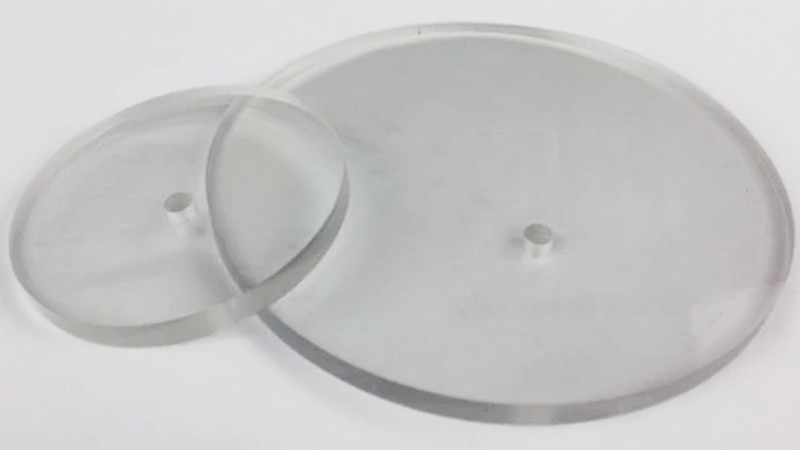

Glass vs. Acrylic Lids: Does It Really Matter?
You see chambers with clear acrylic lids and others with heavy glass lids. The price difference can be significant, but is the performance any different?
Yes, the lid material matters immensely. For general resin work, acrylic is a good, affordable choice. For any process involving solvents or alcohol, like wood stabilization, a tempered glass lid is essential to prevent chemical damage and ensure safety.
This is a critical detail that is often overlooked. While both materials hold a vacuum, they react very differently to chemicals. Choosing the wrong one can ruin your equipment.
| Feature | Acrylic Lid | Tempered Glass Lid |
|---|---|---|
| Chemical Resistance | POOR. Damaged by solvents, alcohol. | EXCELLENT. Chemically inert. |
| Durability | Softer, scratches easily. | Harder, scratch-resistant. |
| Clarity | Can become cloudy/cracked over time. | Stays perfectly clear. |
| Weight | Lightweight and easy to handle. | Heavy and more cumbersome. |
| Cost | More affordable. | More expensive. |

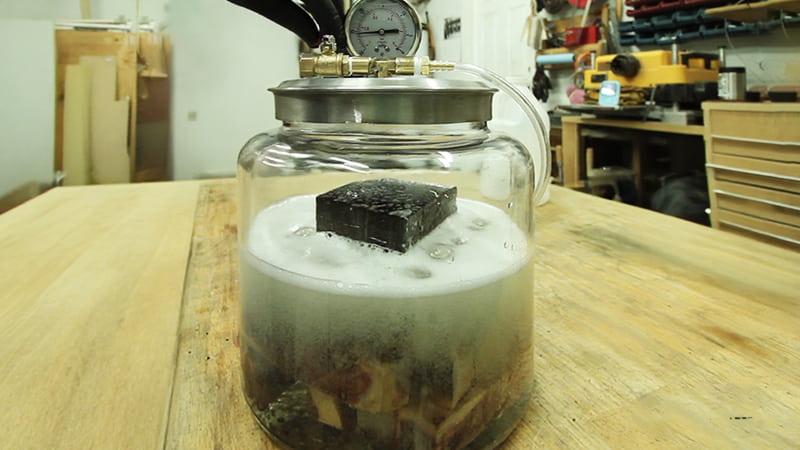

The Critical Application: Wood Stabilization
This is where the choice becomes non-negotiable. The process of stabilizing wood involves pulling a vacuum on wood submerged in a special resin, like Cactus Juice. These stabilizing resins contain chemical agents and solvents that will attack an acrylic lid. The solvent vapors will cause the acrylic to develop tiny micro-fractures, a phenomenon called "crazing." This not only makes the lid cloudy and hard to see through but, more importantly, it structurally weakens the plastic, making it a safety hazard under vacuum. For this reason, if you ever plan to stabilize wood or use any chemicals with strong solvent vapors, you must invest in a chamber with a tempered glass lid. It is completely immune to this chemical attack and will last a lifetime.
If a single-stage pump can hit 500 microns, why do I need two stages?
You're right to ask this critical question. A quality single-stage pump can reach this level, so why do professionals almost always insist on a two-stage pump for serious vacuum work?
A two-stage pump isn't just about the ultimate vacuum level; it's about speed, efficiency, and durability at that deep vacuum level. It reaches the target faster and works less hard to stay there, resulting in a longer pump life and better results.
Think of it like a car engine. A small 4-cylinder engine might be able to reach 100 mph, but it will be screaming at its redline to do so. A large V8 engine will reach 100 mph effortlessly at a low RPM. A two-stage pump is the V8 engine of the vacuum world. A single-stage pump has to work extremely hard to get from 1,000 down to 500 microns. A two-stage pump does this work easily and quickly because its second stage gives it a massive performance advantage in the deep vacuum range. This "headroom" means less wear, more consistent performance, and faster cycle times for your projects.

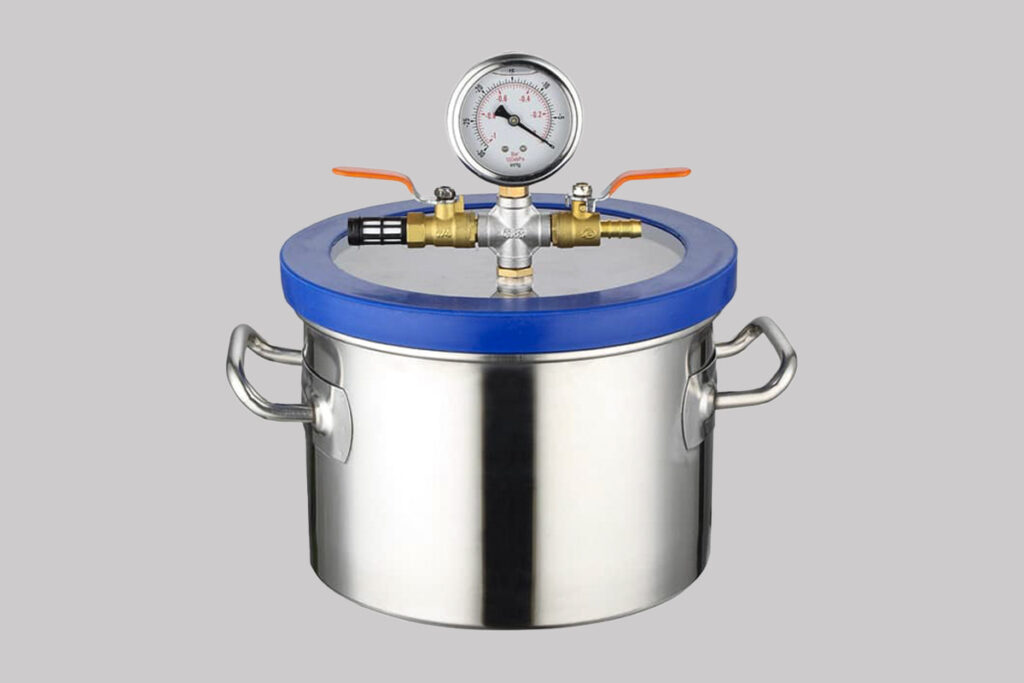

How do I choose the right size chamber and pump?
You don't want a chamber that's too small or a pump that's too slow. The solution is a simple, two-step process: choose the chamber first, then match the pump to it.
Always choose the chamber first, based on your largest planned project. Then, match your two-stage pump's CFM (Cubic Feet per Minute) rating to the chamber's volume for optimal performance.
This is my firmest rule: buy for the project, not for the pump. A slightly slower evacuation is better than a chamber that's too small. After measuring your project and selecting a chamber, use this simple guide to find the right pump speed.
| Chamber Size (Volume) | Recommended Pump (Two-Stage) |
|---|---|
| 1 - 3 Gallons | 3 CFM |
| 3 - 5 Gallons | 4 - 5 CFM |
| 5 - 7 Gallons | 6 - 8 CFM |
| 7+ Gallons | 8 - 12 CFM |
Final Thoughts
A professional vacuum setup is a system. By choosing the right chamber and lid material for your projects, and pairing it with an appropriately sized two-stage pump, you create a system that will deliver flawless results quickly and safely.
