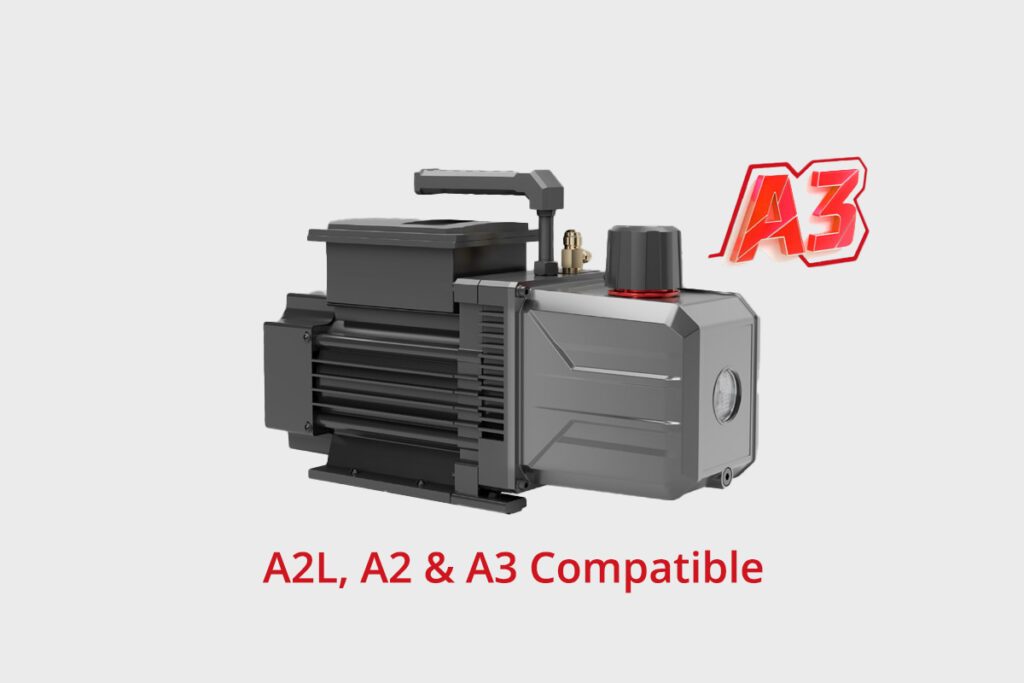

Vacuum Pump for Flammable Refrigerants

Table of Contents

The refrigerant landscape is changing fast. Using your old, trusted vacuum pump on a new system could be more than a mistake—it could be a catastrophic safety hazard.

Your pump’s safety depends entirely on the refrigerant’s classification. A2L refrigerants require a certified "spark-proof" pump. A3 refrigerants, which are highly flammable, demand a pump with a much more robust "explosion-proof" motor to prevent disaster.

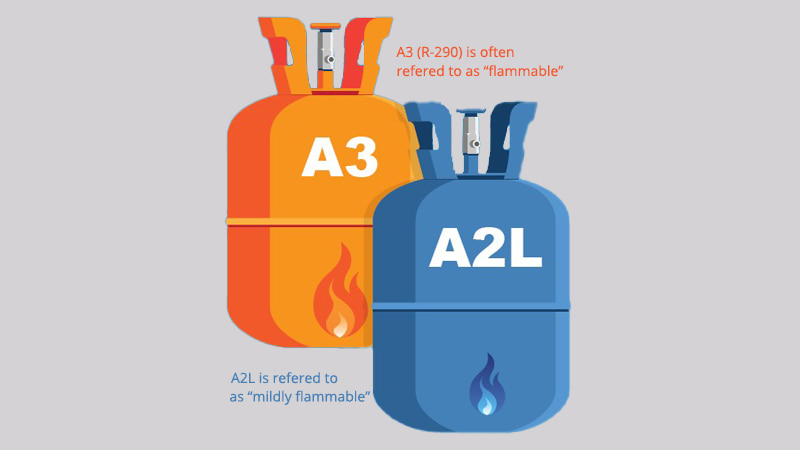

An HVAC technician in full safety gear, cautiously holding two small refrigerant cylinders side-by-side: one labeled
Comparing A2L and A3 Flammable Refrigerants

After more than a decade in this field, I can tell you that the single biggest shift we are facing is the move to flammable refrigerants. The days of assuming all "freon" is non-flammable are over. Understanding the difference between a "mildly flammable" A2L and a "highly flammable" A3 refrigerant isn’t just technical knowledge; it’s the most important safety lesson a technician can learn today. Using the wrong equipment is literally playing with fire.

What does the A signify in refrigerant classifications A2, A2L, and A3?

You see these codes on cylinders and data plates, but they can be confusing. Cracking this code is the first step to understanding the risk you are dealing with.

The "A" signifies that the refrigerant has lower toxicity (Class A). The number or letter that follows—2, 2L, or 3—indicates its level of flammability, from lower to higher. This classification system is your first warning label.

A close-up photograph of the label on a modern refrigerant cylinder, with the ASHRAE 34 classification
Refrigerant Safety Classification Label

The system that governs this is ASHRAE Standard 34. It’s the universal language for refrigerant safety. It’s simple, but every technician must know it by heart.

Classification Toxicity Flammability Example
A1 Lower (A) No Flame Propagation (1) R-410A, R-134a
A2 Lower (A) Lower Flammability (2) R-152a
A2L Lower (A) Lower Flammability, Low Burning Velocity (2L) R-32, R-1234yf
A3 Lower (A) Higher Flammability (3) R-290 (Propane), R-600a (Isobutane)

The letter "B" signifies higher toxicity, but these are less common in general HVAC work. For our purposes, the number is what dictates the type of equipment you need.

Is A2L refrigerant flammable?

This is a critical point of confusion. You hear "flammable" and think of gasoline, but the reality for A2L refrigerants is very different, and the "L" is the key.

Yes, A2L refrigerants are flammable, but they are difficult to ignite and burn very slowly. The "L" stands for "Lower Burning Velocity," meaning the flame front moves at less than 10 cm/second. This makes them significantly safer than A3 refrigerants.

A controlled laboratory test showing a technician safely holding a lit match well above a small, weak flame originating from an A2L refrigerant source, demonstrating its low burning speed
Demonstrating A2L Refrigerant’s Low Flammability

From my experience, the best way to think about it is this: igniting an A3 refrigerant like propane is like trying to light gasoline—it happens instantly and aggressively. Igniting an A2L refrigerant is more like trying to light a piece of damp wood with a single match. It takes a significant, sustained energy source to get it started, and even then, the flame doesn’t want to spread aggressively. This property is precisely why they have been approved as a safer alternative to A3 refrigerants for many applications. But make no mistake: "difficult to ignite" is not the same as "impossible to ignite." An electrical spark from your old vacuum pump is more than enough energy.

Do I need a special vacuum pump for A2L refrigerants?

You have a reliable old pump that has served you well for years. You’re tempted to keep using it on these new A2L systems, but this is a risk you cannot afford to take.

Yes, you absolutely must use a special vacuum pump specifically designed and certified for A2L refrigerants. These pumps incorporate spark-proof features that prevent the tool itself from becoming an ignition source for the flammable refrigerant.

A close-up shot of a sticker on a new vacuum pump that clearly says
A2L Certified Vacuum Pump

Using a standard, non-rated vacuum pump on an A2L system is a dangerous gamble. A traditional pump is full of potential ignition sources. An A2L-rated pump has been re-engineered from the ground up to eliminate these risks.

  • Spark-Proof Switches: The on/off switch is sealed in a special housing to contain any tiny arc that occurs when the contacts open or close.
  • Brushless DC Motors: These motors are electronically commutated, which eliminates the constant sparking created by the carbon brushes in a traditional AC motor.
  • Over-temperature Protection: Many include sensors that shut the pump down if it begins to overheat, preventing the motor from reaching a temperature that could ignite the refrigerant.

These are not optional features; they are essential safety mechanisms.

What is the difference between a pump for A2L and A3 refrigerants?

This is where true expertise comes in. A pump safe for A2L is absolutely not safe for A3, and understanding why could save your life.

The difference is "spark-proof" versus "explosion-proof." An A2L pump is designed to prevent a spark. An A3 pump is designed to contain an explosion, assuming a flammable atmosphere could enter the motor itself.

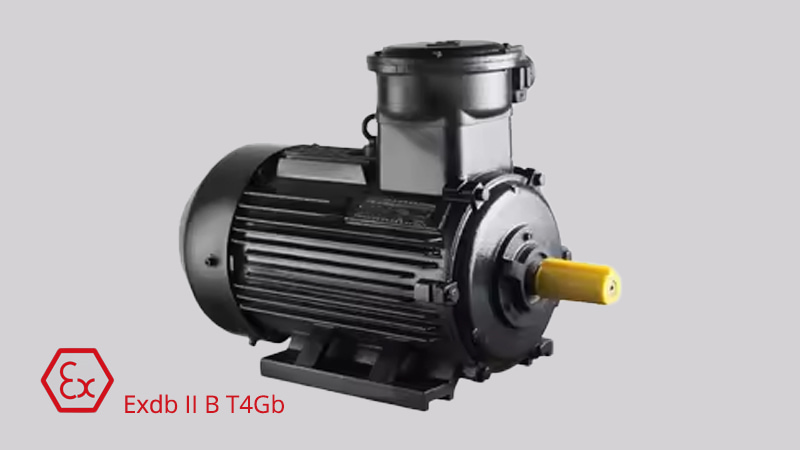

A heavy-duty A3-rated pump in an industrial setting, focusing on its thick, cast-iron, sealed explosion-proof motor housing, which looks vastly different from a standard motor
Explosion-Proof Motor on an A3-Rated Pump

This is the most critical distinction I teach. The safety engineering is on a completely different level.

Feature A2L "Spark-Proof" Pump A3 "Explosion-Proof" Pump
Safety Goal Prevent the pump from creating an ignition source. Contain an internal explosion if one occurs.
Motor Type Brushless DC motor (no sparks). Sealed, heavy-duty explosion-proof motor.
Switches Sealed to prevent sparks from escaping. All electronics are in explosion-proof enclosures.
Design Philosophy Assumes refrigerant stays outside the electronics. Assumes flammable gas could leak inside the motor housing.

The motor on an A3-rated pump is a fortress. It’s built into a thick, sealed, cast-metal housing that is so strong it can withstand the pressure of the refrigerant/air mixture igniting inside the motor and not allow the flame to escape and ignite the surrounding atmosphere. This is a level of safety far beyond what is required for A2L refrigerants and is essential when dealing with highly flammable substances like propane (R-290) and isobutane (R-600a).

Final Thoughts

As the industry moves toward flammable refrigerants, your safety depends on your knowledge. Never take chances. Always match your equipment to the refrigerant’s classification—spark-proof for A2L and explosion-proof for A3.
