You’re on a job, and your vacuum is taking forever to pull down. You blame the pump or suspect a system leak, but the real culprit is often the hose in your hand.
Using the wrong hose is the most common and costly performance mistake in HVAC service. A hose is not just a tube; it’s a purpose-built tool defined by its pressure ratings, vacuum integrity, and diameter. Matching these specs to the task is non-negotiable for a professional.
Having spent my career in the vacuum and refrigeration industry, I can tell you this: an HVAC system is a chain, and its performance is dictated by its weakest link. Too often, that link is the hose. Technicians invest thousands in powerful pumps, only to connect them with a hose that chokes performance to a trickle. Understanding the fundamental engineering specifications behind hose design is the difference between a 90-minute struggle and a 15-minute success.

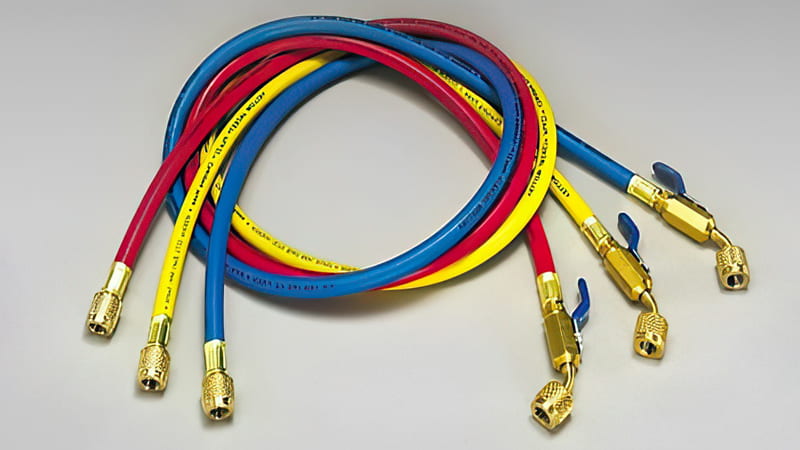

The Unseen Battle: Pressure vs. Vacuum Hose Specifications
They look similar and share the same fittings, so it’s easy to assume they are interchangeable. This assumption is wrong, and it costs the industry millions in lost time and jeopardizes safety.
A standard charging hose is built with a high PSI rating to contain pressure pushing out. A vacuum-rated hose is built with low-outgassing materials and a high vacuum rating (in microns) to resist leaking under vacuum. They are engineered for opposite purposes.
When you connect a hose to a system, it becomes a critical component defined by its technical ratings. Here’s a detailed breakdown of why these numbers matter.
| Specification | Standard Charging Hose | Dedicated Vacuum Hose |
|---|---|---|
| Working Pressure | 800 PSI | ~600 PSI |
| Burst Pressure | 4000 PSI | ~3000 PSI |
| Vacuum Rating | Not Rated (Poor) | < 20 Microns |
| Internal Diameter | Small (¼-inch) | Large (½-inch or larger) |
| Material Weakness | High Outgassing & Permeation | None for vacuum use |
The two mortal enemies of deep vacuum are outgassing and permeation. A standard charging hose is terrible at both.
- Outgassing: The rubber of a standard hose contains moisture and manufacturing solvents. Under deep vacuum, these molecules are pulled out of the hose material itself, creating a "phantom leak" that makes it impossible to reach a deep vacuum.
- Permeation: This is when atmospheric molecules (like water vapor) physically pass through the solid walls of the hose material. A vacuum-rated hose, certified to hold a vacuum below 20 microns, is built with a much denser composite to prevent this.

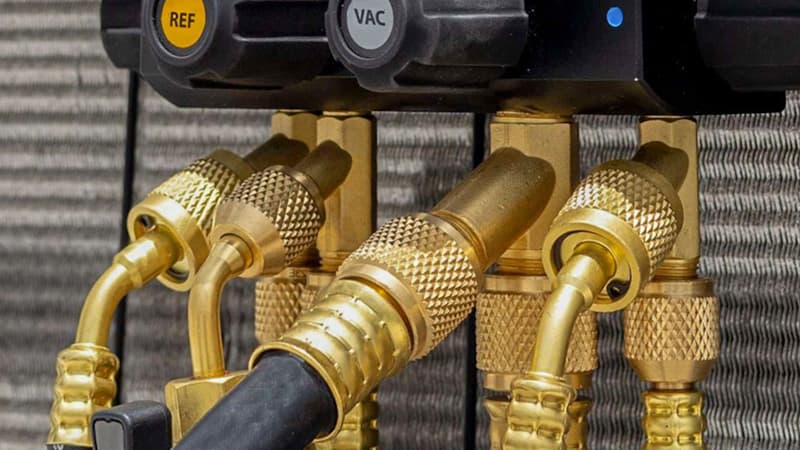

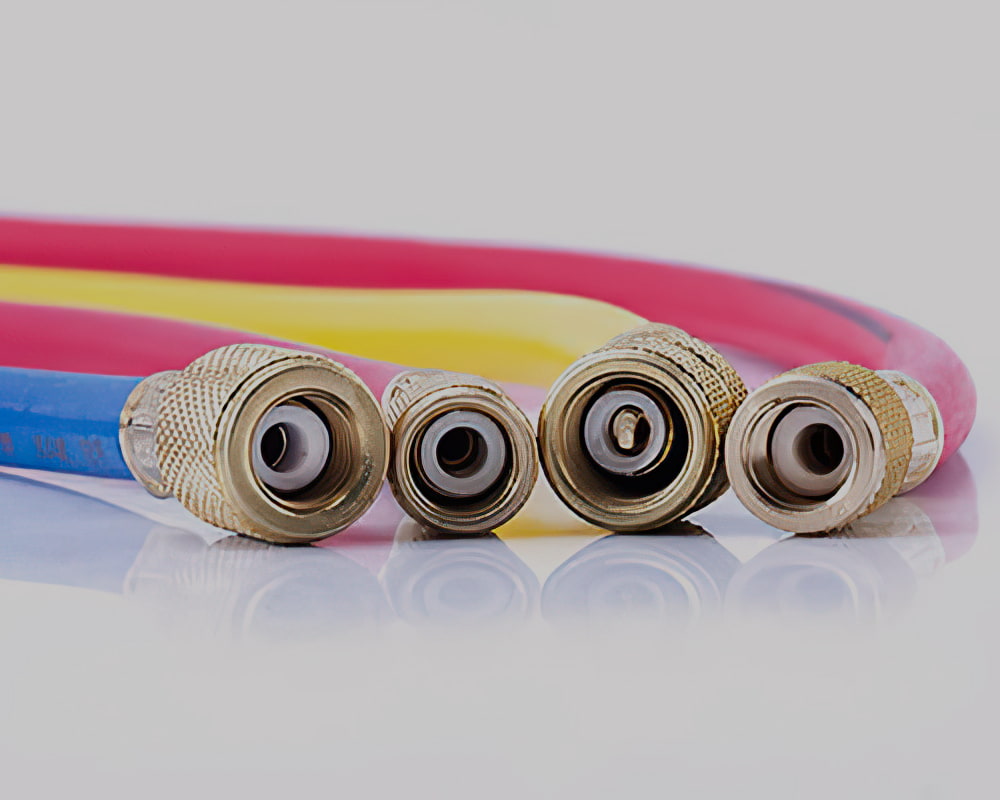

Why Hose Diameter Is the Unrivaled Key to Evacuation Speed
Your vacuum stalls at 1,500 microns and you can’t figure out why. The problem isn’t your pump’s CFM; it’s the conductance of the hose you’re using.
The speed of evacuation is governed by conductance, and conductance is exponentially related to hose diameter. A ½-inch hose has a flow rate 16 times greater than a standard ¼-inch hose. This is not a small improvement; it’s a game-changer.
The physics is undeniable. The flow rate through a tube increases by the fourth power of its radius. This means doubling the diameter doesn’t double the speed—it increases it by a factor of 16. If there is one single investment a technician can make to drastically cut down on-site time, it’s a set of large-diameter vacuum hoses and core removal tools. I have personally seen this simple upgrade turn a frustrating 90-minute evacuation into an easy 15-minute job. For 99% of residential service, upgrading your hoses is a far better investment than buying a pump with a higher CFM rating.

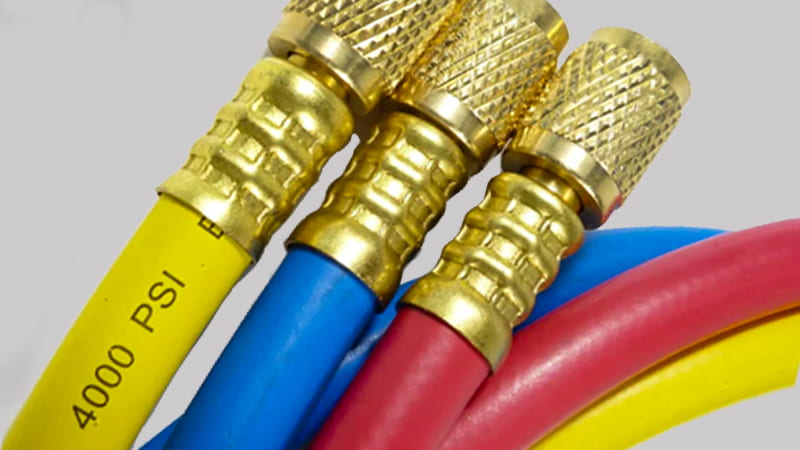

Why a High PSI Rating Is Critical for Charging
If large hoses are so much better for vacuum, why not use them for everything? The answer lies in the pressure ratings and the precision required for the most sensitive part of the job.
A standard ¼-inch charging hose is the ideal tool for adding refrigerant because its high working pressure rating (typically 800 PSI) can safely handle modern refrigerants like R-410A, and its small volume allows for an accurate charge.
That 800 PSI rating isn’t just a number; it’s your safety margin. On a hot 100°F day, the standing pressure of an R-410A system can exceed 340 PSI. This pressure spikes even higher when the system is running. A standard hose is built to handle this with a 5:1 safety factor (800 PSI working, 4000 PSI burst). Using an underrated hose is a dangerous gamble. Furthermore, the small internal volume of a ¼-inch hose is critical for accuracy. It minimizes the amount of wasted refrigerant left in the hose, allowing you to weigh in a precise charge with a digital scale.

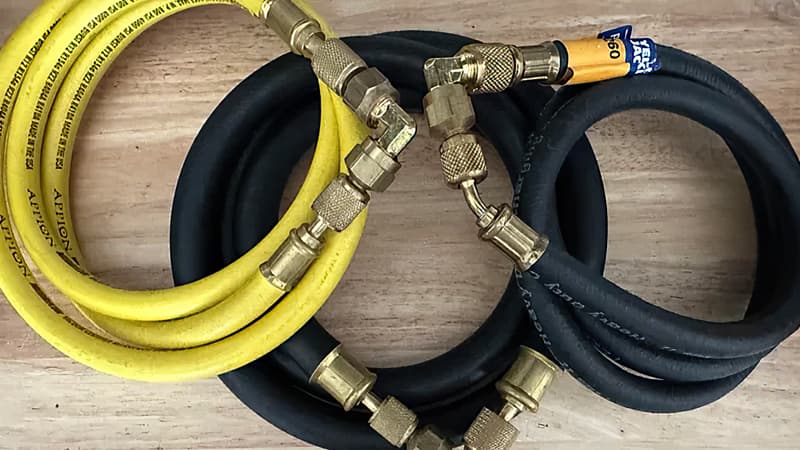

Why Hose Choice Affects Refrigerant Recovery
You need to recover refrigerant quickly, and you know that time is money. This is a task that demands both high flow and robust pressure handling.
For the fastest recovery, use large-diameter hoses that are rated for both high pressure and deep vacuum. This combination allows your recovery machine to move refrigerant with maximum efficiency and safety.
A recovery machine is a compressor, and it works most efficiently when it’s not fighting unnecessary friction. Using standard ¼-inch hoses forces the machine to work harder. By using ⅜-inch or ½-inch hoses, you reduce the workload on the machine. This speeds up the job and reduces the chance of tripping the high-pressure safety switch. The key is to use a high-quality, large-diameter hose that is also pressure-rated (e.g., 600 PSI working pressure). These "all-in-one" hoses are an excellent investment for a professional who does a lot of recovery work on larger systems.
Final Thoughts
Your hoses are not just accessories; they are specified tools. Using a large-diameter, micron-rated hose for evacuation and a small-diameter, high-PSI-rated hose for charging is the mark of an expert who understands that the right specifications determine safety, speed, and precision.
