You reach for the oil, but it's the wrong bottle. Mixing it seems easy, but you worry it could wreck your expensive pump. What should you do?
You should never mix different brands or types of vacuum pump oil. Mixing them can ruin the oil's properties, leading to poor vacuum performance, sludge formation, and potentially severe damage to the internal components of your pump.
In my decade of experience with vacuum pumps, I've seen some costly mistakes. Many of them start with something that seems small, like topping off the pump with whatever oil is on the shelf. But vacuum pump oil isn't like motor oil for your car; it's a highly specialized fluid. It is the lifeblood of your pump. Using the wrong oil, or mixing different oils, is one of the fastest ways to cause problems that are frustrating and expensive to fix. Let's explore why this is so critical for your equipment.
Is all vacuum pump oil the same?
All pump oils might look like simple, clear fluids in a bottle. Using the wrong one could be a costly mistake, but it's hard to tell them apart just by looking.
No, not all vacuum pump oil is the same. It is engineered from different base stocks—like mineral oil, semi-synthetic, or full-synthetic—and contains unique additive packages. Each type is designed for specific vacuum levels and operating conditions.
The most important property of a vacuum pump oil is its vapor pressure. This is the pressure at which the oil itself will start to evaporate or "boil" at a given temperature. If your oil's vapor pressure is too high, the oil will turn into a gas inside the pump, and you will never be able to pull a vacuum lower than that pressure. It becomes the limit of your entire system. The different types of oil are built around this central principle.
Mineral vs. Synthetic Oils
Understanding the basic types is the first step. Most pumps use one of these three.
| Oil Type | Base | Best For | Key Feature |
|---|---|---|---|
| Mineral Oil | Refined Petroleum | General Purpose, HVAC | Lowest Cost |
| Semi-Synthetic | Mineral/Synthetic Blend | Harsher Conditions | Better thermal stability than mineral |
| Full-Synthetic | Man-made (PAO/Ester) | High-Performance, Demanding Processes | Very low vapor pressure, high resistance to heat and chemicals |
I typically recommend standard mineral oils for rough vacuum applications like those in HVAC service. They are affordable and effective. But for more demanding industrial or laboratory processes, especially those involving heat or reactive gases, a move to synthetic oil is necessary. Synthetics resist breaking down and emulsifying (mixing with water), which protects the pump in tough situations.

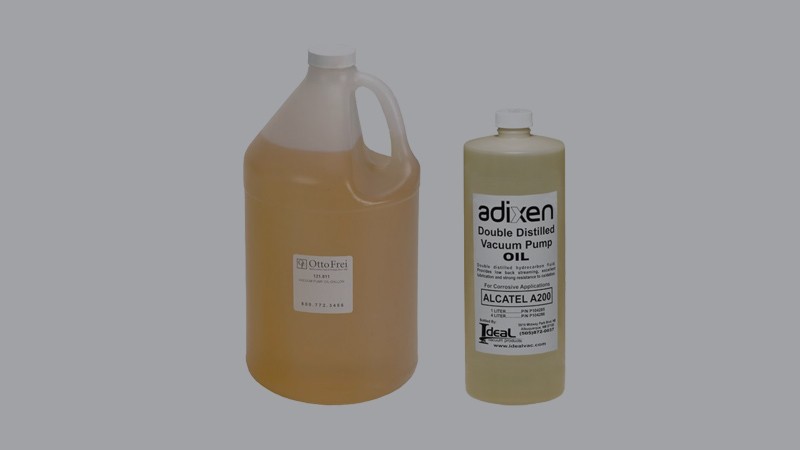

Can you mix different brands of vacuum pump oil?
You've run out of your usual brand but have a different one on hand. It seems like they should be compatible, but mixing them feels like a gamble for your equipment.
You should not mix different brands, even if they are the same type. Every manufacturer uses a unique, proprietary blend of additives. When mixed, these different chemical packages can react, causing the oil to thicken, foam, or fail.
This is a lesson I learned the hard way early in my career. A client called me because their brand-new pump had seized. When we disassembled it, the inside was full of a thick, greasy sludge. The problem? They had topped off the high-performance synthetic oil that the pump shipped with using a standard mineral oil from a different brand. The two additive packages were completely incompatible. They reacted and turned the oil into something closer to petroleum jelly, destroying the pump's ability to lubricate itself.
The Problem with Additives
Think of additives as the secret sauce in the oil. They are chemicals added in small amounts to improve performance. They do things like:
- Prevent rust and corrosion
- Reduce foaming
- Improve stability at high temperatures
- Help the oil resist breaking down when exposed to process gases
When you mix Brand A's secret sauce with Brand B's, you have no idea what the result will be. The best-case scenario is that the performance is simply reduced. The worst-case scenario is a chemical reaction that creates sludge, gels, or acids that actively attack the inside of your pump, leading to a catastrophic failure. It is never worth the risk.
What are the risks of mixing different types of vacuum pump oil?
You realize you've accidentally mixed a mineral oil with a synthetic one. Now you need to know exactly what damage this can cause to your pump and your vacuum process.
Mixing oil types, like mineral and synthetic, is a recipe for failure. It can immediately increase the oil's vapor pressure, which means you can't reach a deep vacuum. It also compromises lubrication, leading to accelerated wear and pump damage.
When you mix oil types, you are combining two fundamentally different chemical structures. They don't blend into a happy medium. Instead, you get the worst properties of both, creating specific problems within your pump.
Vapor Pressure Collapse
This is the most immediate impact on your vacuum performance. A high-quality synthetic oil has an extremely low vapor pressure, allowing you to reach ultra-high vacuum. A standard mineral oil has a much higher vapor pressure. When you mix them, the resulting vapor pressure of the mixture will be dominated by the inferior mineral oil. The oil itself will start to boil off at a much higher pressure, creating a gas load that your pump cannot overcome. You will hit a pressure ceiling and be unable to go any lower, no matter how long you run the pump.
Lubrication and Seal Failure
Mineral and synthetic oils have different molecular structures and viscosity characteristics. They are not designed to work together to form a stable lubricating film between the tight-tolerance moving parts inside your pump. This can lead to metal-on-metal contact, which generates friction, excess heat, and rapid wear of critical components like vanes and rotors. Furthermore, some aggressive synthetic oils can be incompatible with older seal materials (elastomers). Mixing them with another oil can cause the seals to swell, harden, or degrade, resulting in leaks.

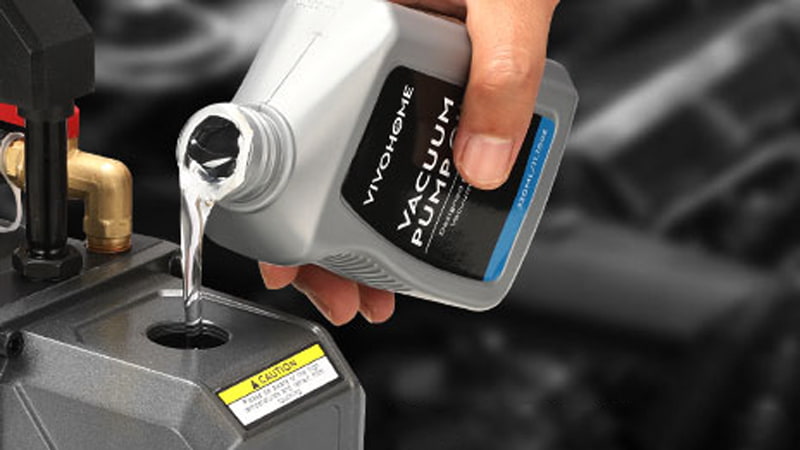

Why is it important to change the oil on a vacuum pump?
Changing pump oil can feel like a chore you'd rather skip. It's tempting to just keep running the pump, but this can slowly degrade its performance and lifespan.
Oil must be changed when it becomes contaminated. For dirty processes, this can be frequent. Contaminated oil cannot lubricate properly and will release trapped moisture and chemicals back into your system, ruining your vacuum level.
Many people ask if they should change the oil after every single use. The real answer is: it depends on your process. The oil in your pump does more than just lubricate. It's an active part of the vacuum system.
The Three Jobs of Vacuum Pump Oil
- Lubrication: This is the most obvious job, reducing friction and wear on moving parts.
- Sealing: In a rotary vane pump, the oil creates the crucial seal between the tips of the vanes and the wall of the pump chamber. No seal, no vacuum.
- Contaminant Trap: The oil captures moisture, solvents, acids, and tiny particles that are pulled out of the vacuum chamber. It holds onto these contaminants, removing them from the system.
But this trapping ability has a limit. Once the oil is saturated with water, it will look milky or cloudy. Once it's full of other contaminants or has been broken down by heat, it will turn dark. At this point, it can no longer do its job. A pump full of contaminated oil will have a higher vapor pressure and will actually be a source of contamination itself, off-gassing water vapor and other chemicals back into your chamber.
Closing Summary
Always use the correct, unmixed oil for your specific pump and application. Clean, proper oil is the simplest and most affordable insurance for your vacuum system's health and performance.
