What Is the Safe Fill Level for a Refrigerant Recovery Cylinder?

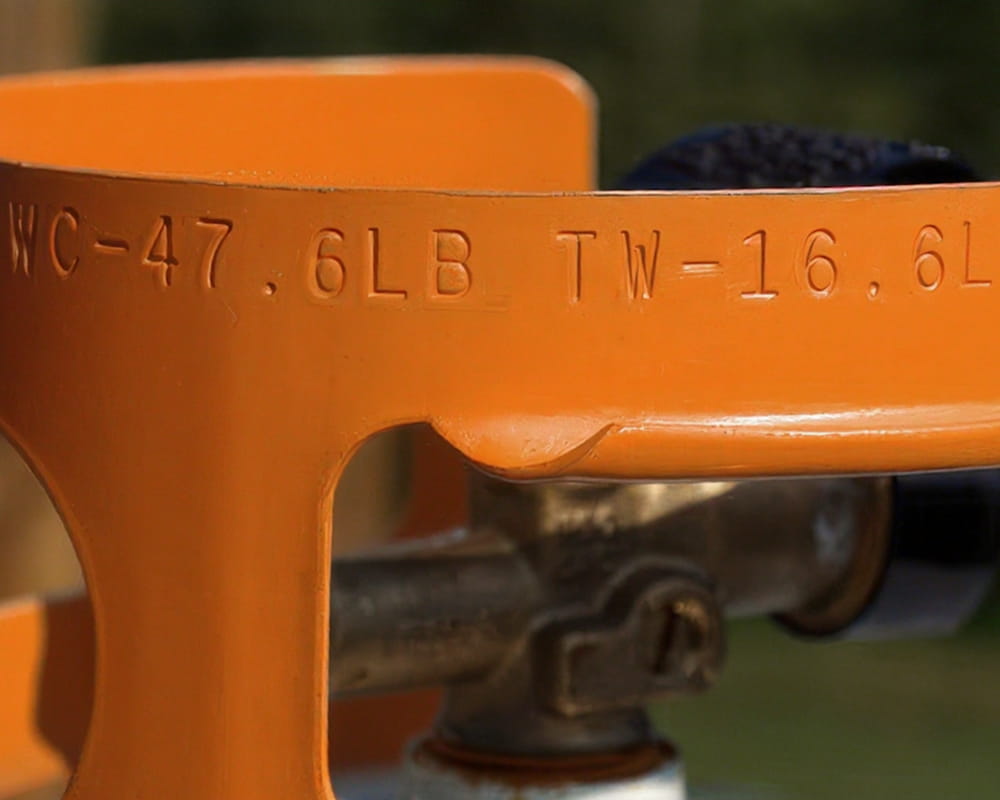

Safe Fill Level for Refrigerant Recovery Cylinder

Table of Contents

You’re recovering refrigerant and the tank feels heavy. You wonder if you can squeeze a little more in to finish the job faster, but this is one of the most dangerous gambles in the HVAC trade.

The maximum safe fill level for any refrigerant recovery cylinder is 80% of its water capacity (WC) by weight. This is a non-negotiable safety rule designed to leave a 20% vapor space to prevent catastrophic tank rupture from liquid expansion.

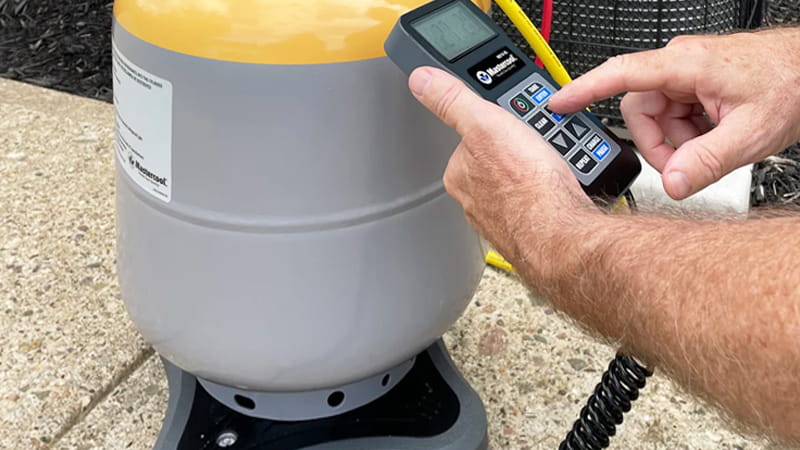

An HVAC technician carefully monitoring a digital refrigerant scale with a recovery tank on it
Safely Filling a Refrigerant Recovery Cylinder

From my years of experience in this field, I can tell you that the most dangerous piece of equipment in a technician’s truck is often a poorly handled recovery tank. The rules for filling them aren’t just best practices; they are based on the hard laws of physics and are designed to prevent violent, explosive failures. Understanding and respecting these limits is a hallmark of a true professional. Let’s break down the rule, why it exists, and how to follow it perfectly every time.

Why is leaving a 20% vapor space so critical?

The tank is 80% full, but it looks and feels like there’s plenty of room left. It’s tempting to keep going, but that "empty" space is the most important safety feature of the entire cylinder.

That 20% empty space, known as vapor space or headspace, is critical to safely accommodate the thermal expansion of the liquid refrigerant. Without it, a small increase in temperature can generate immense hydraulic pressure, leading to an explosion.

A cutaway diagram showing a recovery tank 80% full of liquid refrigerant, with the top 20% clearly labeled as
The Importance of Vapor Space in a Recovery Tank

Liquid refrigerant, like most liquids, is practically incompressible. When you heat a liquid in a sealed container, it has to expand. If there’s no gas-filled space for it to expand into, it will generate incredible pressure against the walls of its container. This is called hydrostatic pressure.

I once saw the aftermath of a recovery tank that was overfilled and left in a work van on a hot day. The pressure increase was so powerful it blew the bottom of the tank out, turning it into a rocket that tore through the vehicle’s roof. That 20% vapor space is a safety cushion. The gas in that space can be compressed, safely absorbing the pressure as the liquid expands. Ignoring this rule is like disabling the safety valve on a pressure cooker.

How do I calculate the exact fill limit for my tank?

You know the 80% rule is important. But how do you translate that rule into a hard number you can use on the job site? The process is simple if you know where to look.

To calculate the maximum fill weight, find the Water Capacity (WC) stamped on your tank’s collar and multiply it by 0.8. For example, a tank with a WC of 47.6 lbs can be safely filled with a maximum of 38 lbs of refrigerant.

A technician pointing to the stamped

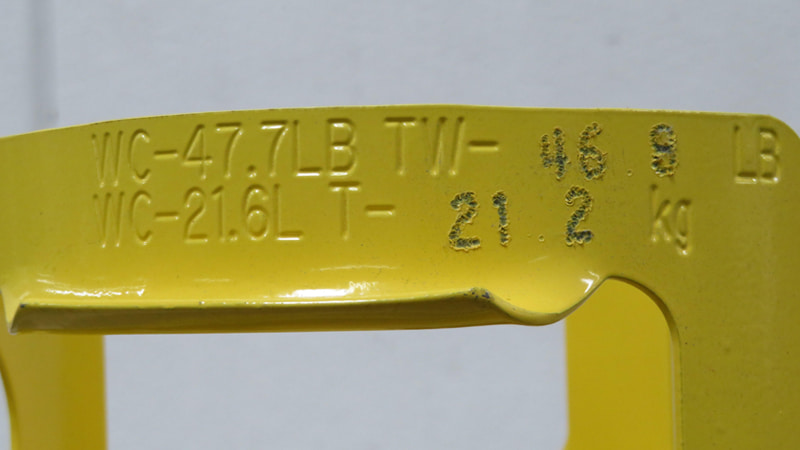

Reading WC and TW on a Recovery Cylinder

Every DOT-approved recovery cylinder has key information stamped directly onto its protective collar. You need two of these numbers to do this safely.

Stamped Marking What It Means Example Value
WC (Water Capacity) The weight of water the cylinder would hold if completely full. 47.6 lbs
TW (Tare Weight) The weight of the empty cylinder itself. 16.6 lbs

Here is the step-by-step calculation I teach every new technician:

  1. Find the WC: Look at the collar. Let’s use WC 47.6 lbs.
  2. Calculate Max Refrigerant Weight: Multiply the WC by 0.8.
    • 47.6 lbs * 0.8 = 38.08 lbs. Let’s round down to 38 lbs. This is the most refrigerant you can ever put in this tank.
  3. Find the TW: Look at the collar. Let’s use TW 16.6 lbs.
  4. Calculate Total Safe Weight: Add the Tare Weight and the Max Refrigerant Weight.
    • 16.6 lbs + 38 lbs = 54.6 lbs. This is the number you will see on your scale when the tank is full. Do not exceed this weight.

What tool is absolutely essential for safe filling?

You think you can judge the fill level by how heavy the tank feels, or by shaking it. This is a dangerous guessing game that can have disastrous consequences.

The only essential tool for safe filling is a digital refrigerant scale. It is the only way to accurately know the weight of the refrigerant in the cylinder at all times. A scale is not optional; it is a critical piece of safety equipment.

A close-up shot of a digital refrigerant scale with a recovery tank sitting on it. The clear digital display shows a weight of 65.8 lbs, just under the calculated safe limit.

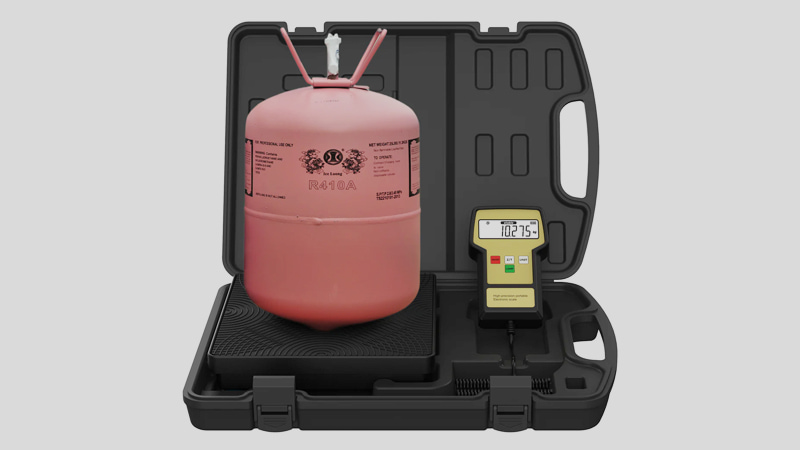

Using a Digital Refrigerant Scale

There is no other professional or safe way to perform a refrigerant recovery. The process is straightforward:

  1. Place your empty recovery tank on the digital scale.
  2. Connect your hoses.
  3. Press the "Tare" or "Zero" button on the scale. The display will now read 0.0 lbs.
  4. Begin your recovery process.

The number you now see on the scale is the exact weight of the refrigerant inside the tank. When that number approaches your calculated maximum fill weight (in our example, 38 lbs), you stop the process. This eliminates all guesswork and ensures you are working safely every single time.

What should I do if I accidentally overfill a tank?

The worst has happened. You got distracted and the scale shows a weight over the safe limit. Panic can lead to more bad decisions, but there is a safe way to correct this mistake.

If you overfill a tank, immediately stop the process and keep the tank cool. The safest action is to carefully recover some refrigerant from the overfilled tank into another, empty recovery cylinder until the weight is below the 80% limit.

A safe setup showing two recovery tanks connected to each other via a manifold gauge set, demonstrating a tank-to-tank refrigerant transfer

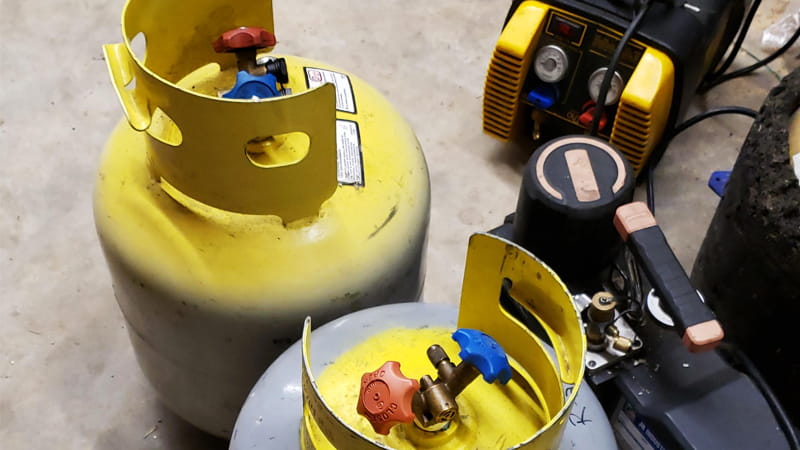

Safely Correcting an Overfilled Recovery Tank

Do not try to vent the refrigerant to the atmosphere—it’s illegal and dangerous. Do not ignore it. Here is the safe procedure:

  1. Stop: Immediately stop the recovery machine. Close the valves on the overfilled tank.
  2. Cool Down: If the tank is warm or in the sun, move it to the shade or an ice bath to reduce its internal pressure.
  3. Prepare a Second Tank: Get another empty recovery cylinder and place it on your scale.
  4. Connect for Transfer: Connect a hose from the liquid port of your overfilled tank to the inlet of your recovery machine. Connect the outlet of your machine to the vapor port of the second, empty tank.
  5. Transfer the Excess: Carefully run the recovery machine to transfer refrigerant from the full tank to the empty one. Watch the scale under your original tank. Once its total weight drops to a safe level, you can stop the process.

Final Thoughts

The 80% rule for filling recovery cylinders is not a guideline; it’s a critical safety standard that protects you and your equipment. Always use a scale, always do the math, and never take a chance.
