Choosing the right refrigerant vacuum pump is tough. Are you unsure of which features really matter?
Selecting an AC vacuum pump involves considering vacuum level, speed (CFM), ease of use, weight, and cost to ensure effective and efficient operation.
Picking the correct pump ensures that your refrigeration systems are efficient and reliable. Let's discuss the important factors you need to consider before making a purchase.

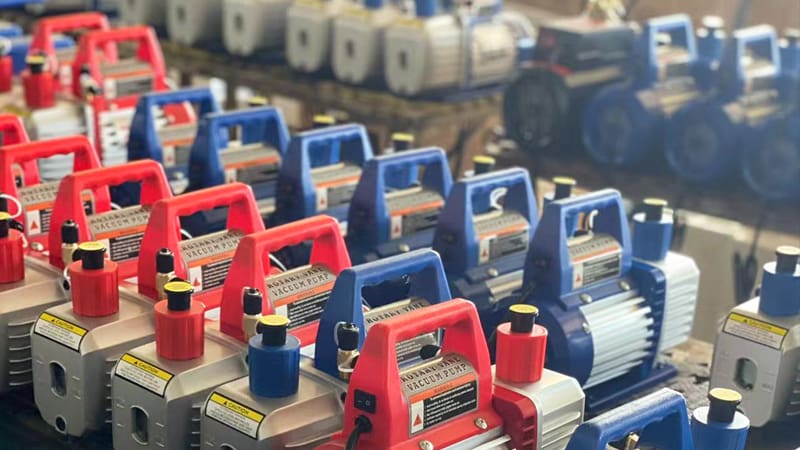

How to Choose an AC Vacuum Pump?
Are you setting up an air conditioning system? What considerations will help you make the right choice?
Select an AC vacuum pump by evaluating vacuum level for the application, CFM for speed, portability via weight, and power options for diverse job sites.
Dive Deeper into AC Vacuum Pump Selection
When selecting an AC vacuum pump, the vacuum level is critical. If you need a rough vacuum, a single-stage pump could work. But, for more demanding applications, a two-stage pump is better. Two-stage pumps achieve deeper vacuums.
The speed, measured in CFM, affects how quickly you can evacuate the system. For residential use, 2-6 CFM is often enough. Commercial applications usually need 8-12 CFM.
Consider ease of use. Cordless, battery-powered pumps are convenient, especially where power is limited.
Finally, weight matters. A lighter pump, under 10 kg, is easier to carry. Consider a heavier one only if you need faster evacuation.
| Factor | Consideration | Application Example |
|---|---|---|
| Vacuum Level | Single vs. Two-Stage | Residential AC vs. Industrial Refrigeration |
| Speed (CFM) | 2-6 CFM vs. 8-12 CFM | Small Room AC vs. Large Building HVAC |
| Ease of Use | Cordless vs. Corded | Field Repairs vs. Workshop Maintenance |
| Weight | Under 10 kg vs. Over 10 kg | Portable Tasks vs. Stationary Setups |
I have found these factors important in my experience.

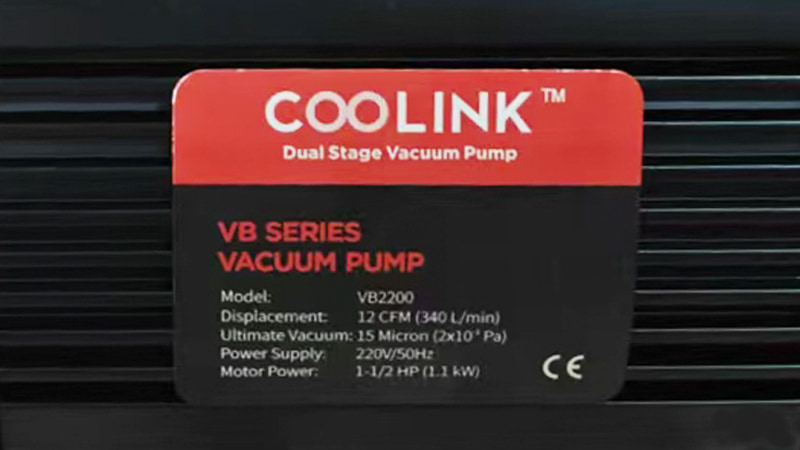

What Size Vacuum Pump Do I Need for HVAC?
Getting the size right is vital. How do you determine the correct vacuum pump size for HVAC systems?
The required vacuum pump size depends on the HVAC system, typically needing 2-6 CFM for residential and 8-12 CFM for commercial systems.
Dive Deeper into HVAC Vacuum Pump Sizing
Selecting the right size vacuum pump depends mainly on system volume and desired evacuation speed. For residential HVAC systems, a pump providing 2-6 CFM is adequate. This range provides sufficient speed for smaller systems.
For larger, commercial HVAC systems, pumps with 8-12 CFM are generally needed. These higher-capacity pumps remove air and moisture more efficiently. Larger systems demand greater pumping speed to reach and maintain the required vacuum levels.
Other factors like the length and diameter of the hoses used can slightly affect performance. However, starting with the right CFM for the application will guide your purchase.
| System Type | Recommended CFM | Considerations |
|---|---|---|
| Residential HVAC | 2-6 CFM | Smaller system volume |
| Commercial HVAC | 8-12 CFM | Larger system volume |
When I'm working with larger systems, CFM is one of the first things I consider.

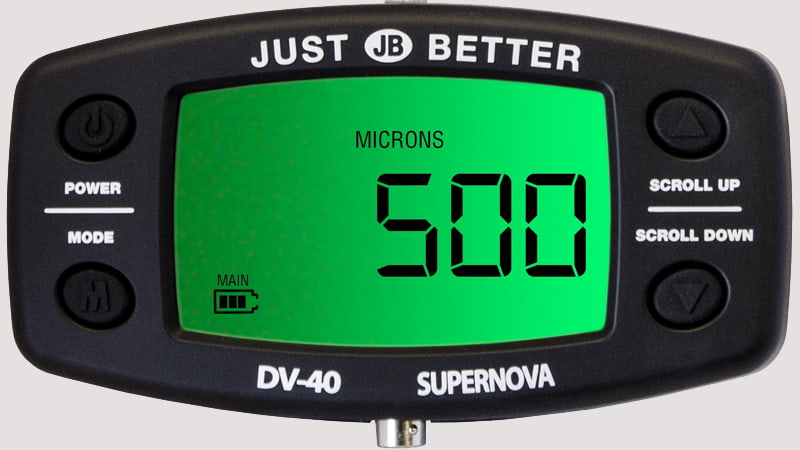

What Is the Recommended Vacuum for a Refrigeration System?
Achieving the right vacuum is crucial. What vacuum level is recommended for optimal refrigeration?
A refrigeration system typically requires a vacuum level of 500 microns or lower to remove non-condensables and moisture for efficient performance.
Dive Deeper into Recommended Vacuum Levels
Maintaining the right vacuum level ensures optimal system operation. A vacuum level below 500 microns is generally recommended. This level ensures the removal of non-condensables like air and moisture.
Moisture can cause ice formation in the expansion valve, reducing cooling efficiency. Non-condensables increase head pressure, making the compressor work harder.
Using a micron gauge is essential. This tool helps accurately measure vacuum levels, ensuring the system is properly evacuated. Regular monitoring helps maintain peak performance.
| Vacuum Level | Effect | Importance |
|---|---|---|
| Below 500 Microns | Removal of contaminants | Prevents damage/inefficiency |
| Above 500 Microns | Potential contaminants | Risk of system malfunction |
I've seen systems fail because this wasn't done properly.

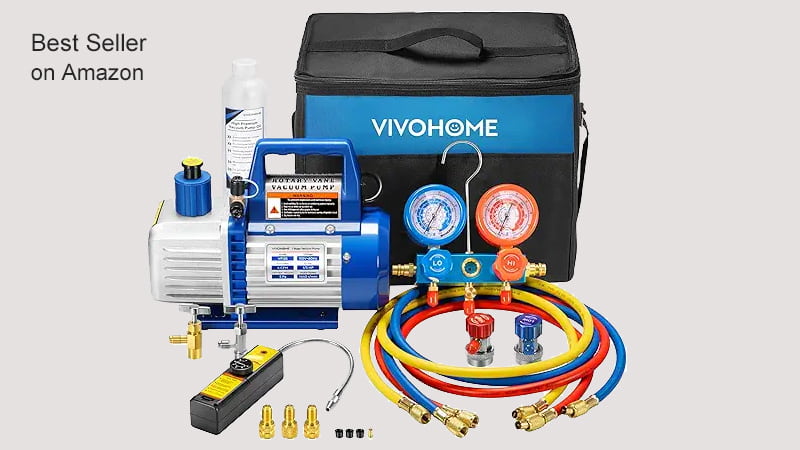

How Do I Select the Vacuum Pump Based on Budget?
Cost is always a factor. What should you consider when choosing a vacuum pump on a budget?
To select a vacuum pump on a budget, compare performance, consider lesser-known brands, evaluate features carefully, and read customer reviews.
Dive Deeper into Budget-Conscious Selection
When budget is a primary concern, carefully balance cost and features. Begin by defining your essential performance requirements. Then, compare available options.
Consider lesser-known brands. Many are produced in China, even those sold on Amazon. These can offer similar performance at a lower cost.
Evaluate which features are truly necessary. Do you need a two-stage pump, or will a single-stage suffice? Is cordless operation essential, or can you use a corded model?
Final Thoughts
Choose a refrigerant vacuum pump by prioritizing vacuum depth (two-stage for deeper vacuums) and CFM (2-6 for residential, 8-12 for commercial). Opt for lightweight, cordless models for portability or heavier pumps for speed. Balance budget by comparing brands and focusing on essential features.
In my experience, the right pump prevents costly issues—match specs to your needs, and avoid shortcuts. Efficient evacuation ensures system longevity. Happy evacuating!
