You've spent good money on a powerful vacuum pump, but your evacuation times are still painfully slow. You're stuck on the job, watching the micron gauge crawl, and you can't figure out why your investment isn't paying off.
Yes, hose size matters more than almost anything else. The diameter and length of your vacuum hoses are the biggest bottleneck in your setup. Using large-diameter, short, dedicated vacuum hoses is the single most effective way to achieve a deep vacuum quickly.

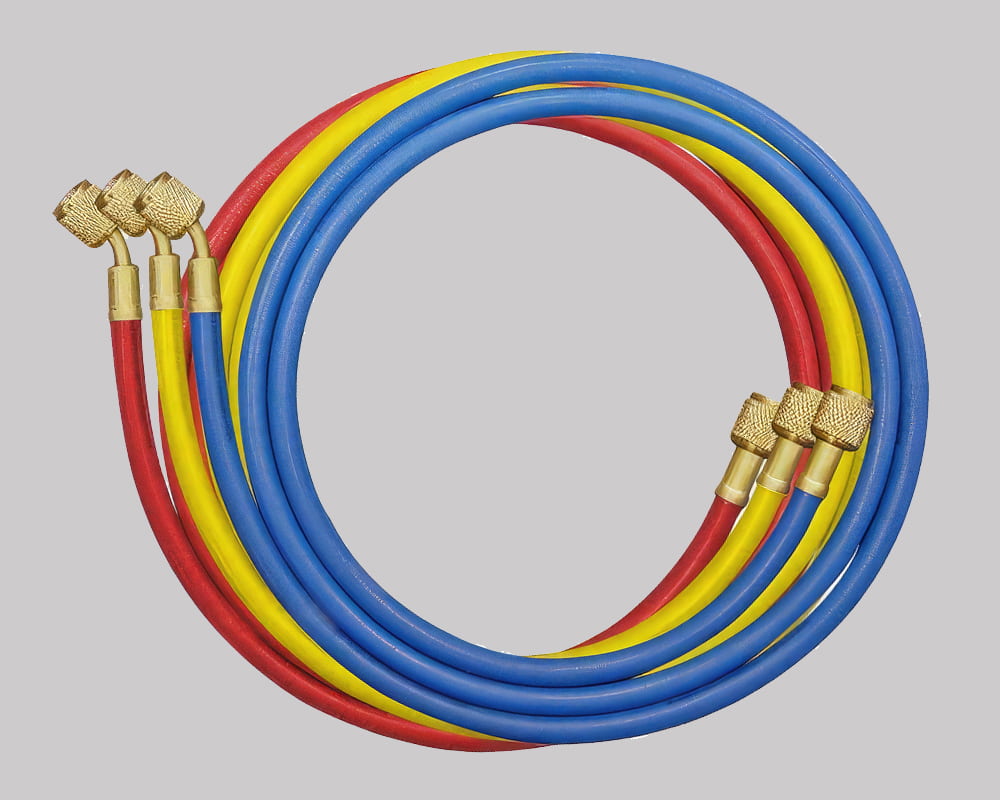

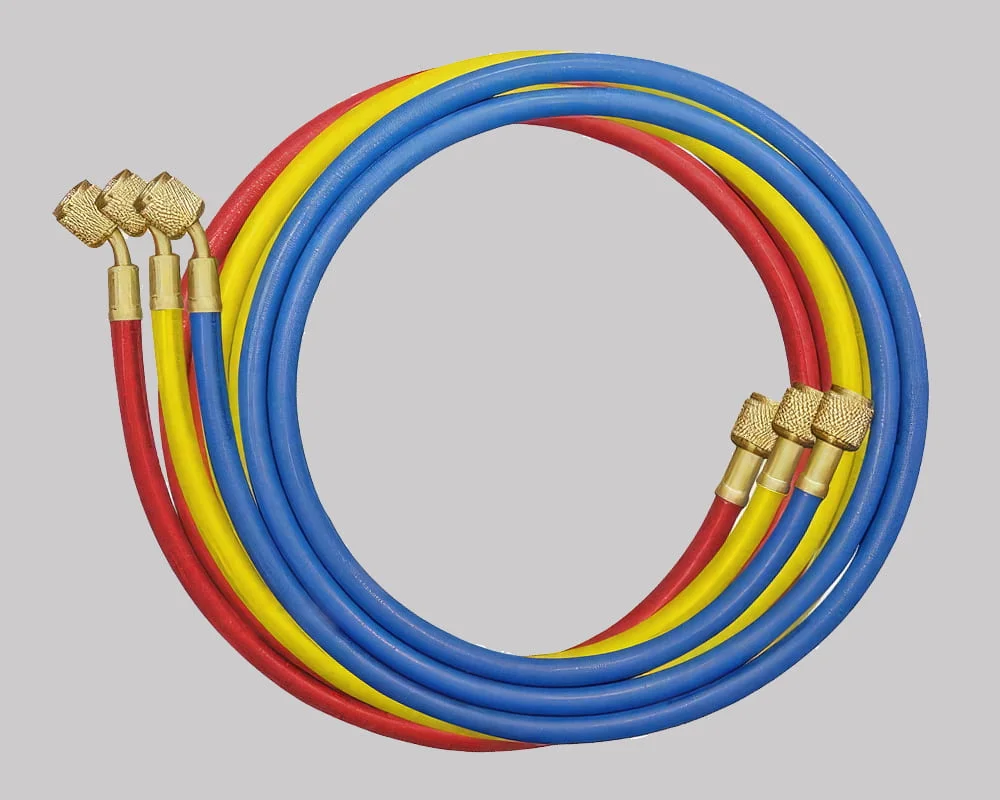

Having spent my career in the world of vacuum technology, I can tell you this with certainty: a vacuum system is only as fast as its most restrictive point. For most HVAC technicians, that restriction is not the expensive pump they bought; it's the skinny, standard-issue charging hoses they connect to it. Thinking a bigger pump will solve a slow evacuation without upgrading your hoses is like putting a race car engine in a car with bicycle tires. You have the power, but you have no way to get it to the road. Let's break down why your hoses are the true king of evacuation speed.
Why Is My 6 CFM Pump Acting Like a 2 CFM Pump?
You have a powerful 6 CFM pump, but it's performing like a 2 CFM model. You're frustrated because you're not getting what you paid for, and you suspect the pump is faulty.
A skinny hose chokes your pump by creating massive resistance to flow. The physics of vacuum flow are dramatic: the ability of a hose to move molecules, called 'conductance,' is proportional to its diameter to the fourth power. This means even a small increase in hose size results in an exponential increase in speed.
Let's look at the numbers. This isn't a small difference; it's a game-changing one. The table below shows the relative speed difference based on common hose sizes.
| Hose Internal Diameter | Relative Flow Capacity | Common Use Case |
|---|---|---|
| 1/4 inch | 1x (Baseline) | Standard charging, very slow for vacuum |
| 3/8 inch | ~5x Faster | Good vacuum performance |
| 1/2 inch | ~16x Faster | Excellent, professional vacuum performance |
As you can see, switching from a standard 1/4-inch charging hose to a 1/2-inch vacuum hose doesn't just double your speed—it can increase your potential evacuation speed by up to 16 times. This is why a powerful pump feels like it's starving for air when connected to a skinny hose. You are leaving almost all of its performance on the table.
Doesn't a Smaller Hose Create Stronger "Suction"?
This is a dangerous myth that comes from our experience with shop vacs. A narrow nozzle feels like it has stronger "suction," so it's logical to think a smaller hose might pull a better vacuum.

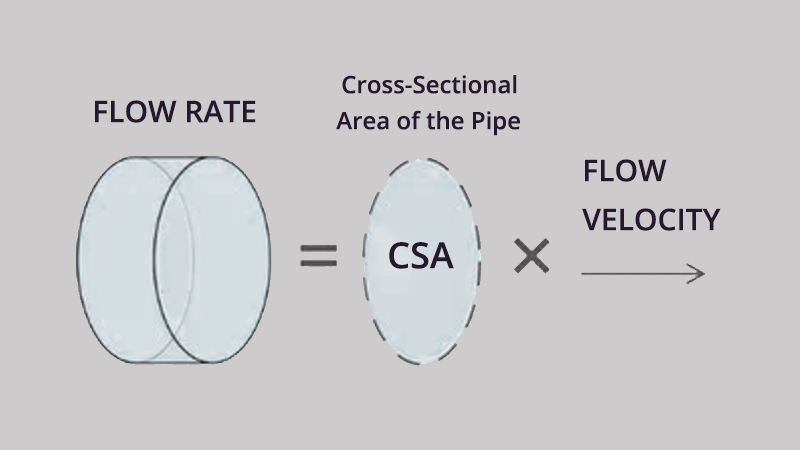

No, it dramatically reduces your ability to pull a deep vacuum. The "strong" feeling is high velocity at atmospheric pressure. Deep vacuum requires high flow (conductance) to remove molecules, not high velocity. This misunderstanding will kill your evacuation times.
This is one of the most important concepts an expert needs to understand. At atmospheric pressure, when you narrow an opening, you force the same amount of air through a smaller space, which increases its speed (velocity). That's the "sucking" force you feel from a shop vac nozzle.
However, in a deep vacuum, there's almost no air left. You are no longer "sucking" anything. You are simply providing an open highway for the few remaining gas and moisture molecules to travel from the system to your pump. A smaller hose is like closing three lanes of a four-lane highway. The journey becomes much, much slower. In vacuum work, a wider, less restrictive path is always better.
How much does hose length slow down an evacuation?
You need to reach a unit far away and grab a long hose. You don't realize that you just chose to double or triple your work time before you even started the pump.
Hose length has a massive impact on evacuation speed. Every foot of hose adds friction and resistance. A 3-foot hose can be more than twice as fast as a 6-foot hose of the same diameter. Always use the absolute shortest hose possible for the job.
If diameter is the width of the highway, length is the distance to your destination. The longer the journey, the longer it takes. Every molecule your pump removes has to travel the entire length of the hose, constantly bouncing off the inner walls along the way. This friction slows down the net flow of molecules out of the system.

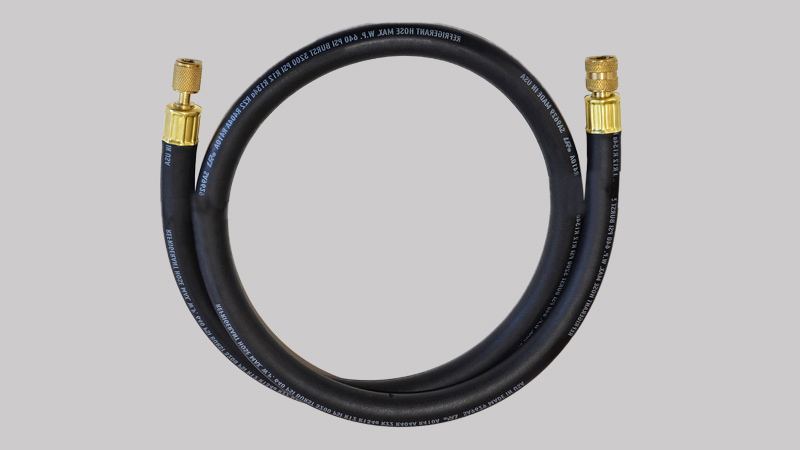

From a practical standpoint, this means you should always try to place your pump as close to the system as possible. Using a 10-foot hose when a 3-foot hose will reach is a self-inflicted wound that adds unnecessary time to every single job. For maximum speed, I recommend technicians have a dedicated, short (3ft or less) large-diameter hose specifically for vacuuming.
What is the ideal hose setup for maximum speed?
You know you need short, wide hoses, but what about the connections? You need to connect a large hose to a small system port without creating another bottleneck.

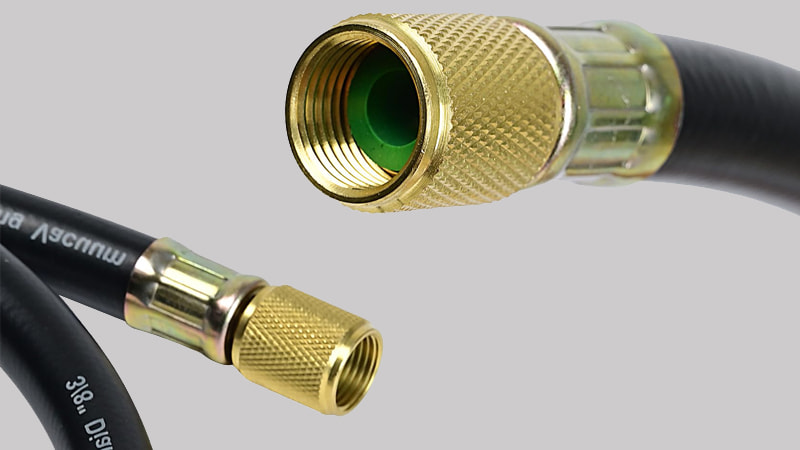

The professional setup uses a large-diameter hose (e.g., 1/2-inch) with a 3/8-inch fitting for the pump and a 1/4-inch fitting for the system. This allows you to utilize the pump's large inlet port while still connecting to standard access fittings.
Here is where the 1/4" and 3/8" sizes both become critical. A cheap setup uses a 1/4" hose with 1/4" fittings on both ends. A professional setup is much smarter.
- The Pump Side: Most high-quality vacuum pumps have multiple inlet ports, including a larger 3/8-inch flare port. This is your high-speed connection.
- The System Side: The standard access fitting on an HVAC unit is a 1/4-inch flare fitting. This is the non-negotiable connection point.
- The Pro Hose: The best vacuum hoses are designed to bridge this gap. They have a large internal diameter (like 1/2") and feature a 3/8" female fitting on one end to connect to the pump's high-flow port, and a 1/4" female fitting on the other end to connect to your core removal tool on the system.
This setup gives you the high flow of a large hose for almost its entire length, minimizing restriction. This, combined with removing the Schrader cores, is the professional standard for fast, effective evacuation.
Final Thoughts
Stop blaming your pump for slow evacuations and start looking at your hoses. Investing in a set of short, large-diameter, vacuum-rated hoses is the most significant and cost-effective upgrade you can make to your entire process.
