Your recovery machine suddenly shuts off, or it's running so slowly the job is grinding to a halt. You're stuck on-site with a waiting customer, and you don't know if it's a simple fix or a catastrophic failure.
The most common recovery machine problems are not failures, but protective features or procedural errors. A tripped high-pressure switch, a restricted hose, or an overfilled tank account for 90% of issues. A methodical check of your setup will solve the problem fast.
In my 10 years of working with this equipment, I can tell you that a recovery machine is one of the most reliable tools in an HVAC technician's truck. When it "fails," it's rarely the machine's fault. It's usually the machine trying to tell you something is wrong with the setup. Learning to speak its language—understanding what causes it to stop or slow down—is the difference between a five-minute fix and a two-hour headache. This is the exact troubleshooting process I follow every single time.

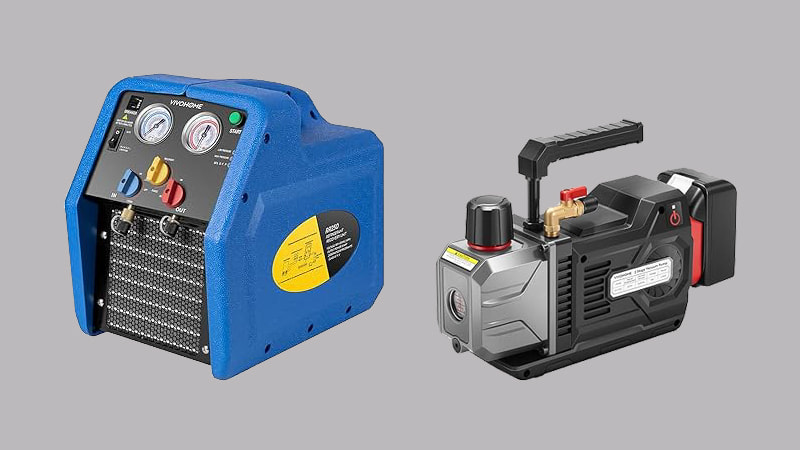

Aren't a recovery machine and a vacuum pump the same thing?
Before troubleshooting, you need to understand the tool. Many technicians use the terms interchangeably, but this leads to critical misunderstandings about what the machine is actually designed to do.
No, they are polar opposites. A recovery machine is a compressor designed to push refrigerant by increasing its pressure. A vacuum pump is designed to pull non-condensable gases like air and nitrogen out of a system.
I always start here because confusing the two leads to major procedural errors. Thinking a recovery machine can pull a deep vacuum is like thinking a water pump can suck up dust like a shop-vac. They are different tools for different, sequential jobs.
| Feature | Refrigerant Recovery Machine | HVAC Vacuum Pump |
|---|---|---|
| Primary Function | Compresses refrigerant vapor into a liquid | Removes non-condensable gases (air, nitrogen) |
| Action | Pushes refrigerant into a tank | Pulls gas out of a system |
| Output | High-pressure liquid/gas | Low-pressure exhaust air (and oil mist) |
| Use in Job | Step 1: Remove refrigerant | Step 2: Evacuate the empty system before charging |
Understanding this difference is key. A recovery machine's job is to move refrigerant. A vacuum pump's job is to prove a system is clean, dry, and leak-free.

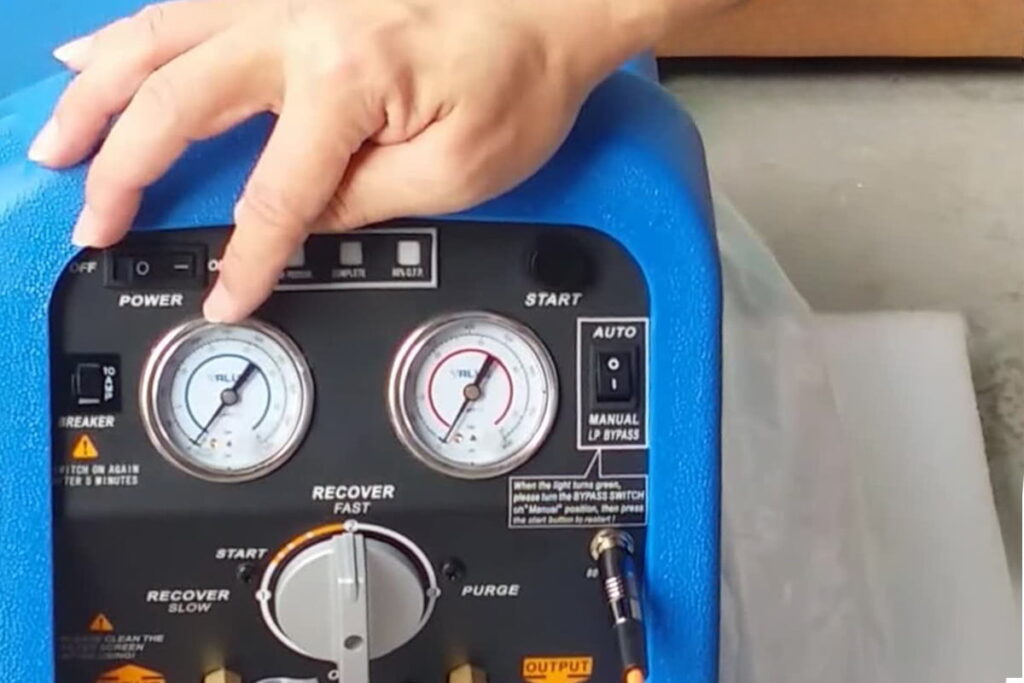

Why did my recovery machine suddenly stop working?
You're in the middle of a job, the machine is humming along, and then it just stops. Your first thought is a dead motor, but the cause is almost always much simpler.

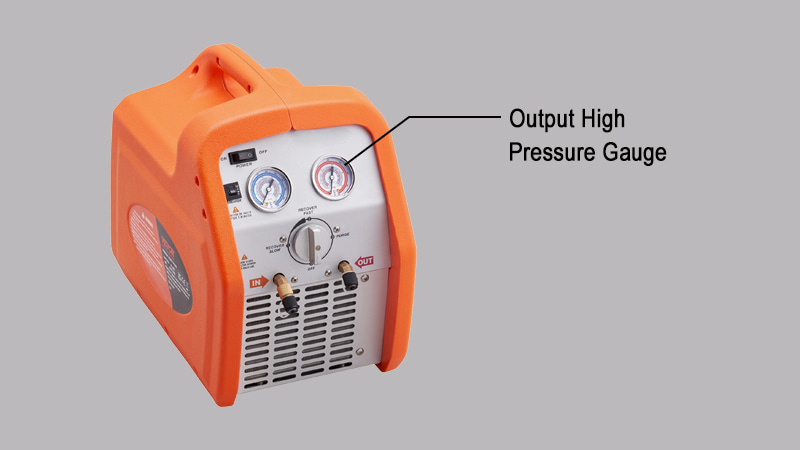

It stopped because its high-pressure safety switch was tripped. This is a protective feature, not a fault. It means the pressure at the machine's outlet has exceeded a safe limit, and it shut down to prevent damage.
This high-pressure switch is your best friend—it saves you from bursting a hose or damaging the compressor. When it trips, a small reset button will usually pop out. But don't just push the button and restart; you have to find out why it tripped.

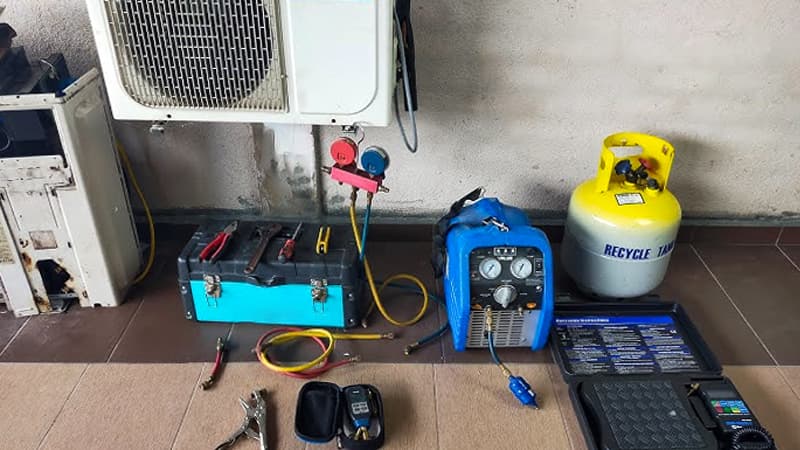

High-Pressure Troubleshooting Checklist
- Is your recovery tank full? This is the #1 cause. An overfilled tank (filled beyond 80% liquid capacity) has no vapor space for refrigerant to expand into, causing a massive pressure spike. Check the tank weight with a scale. If it's full, switch to an empty tank.
- Are the tank valves open? It's an easy mistake to make. If the valve on your recovery tank is closed, the machine is pushing against a brick wall. Ensure both the liquid and vapor valves on your tank are fully open.

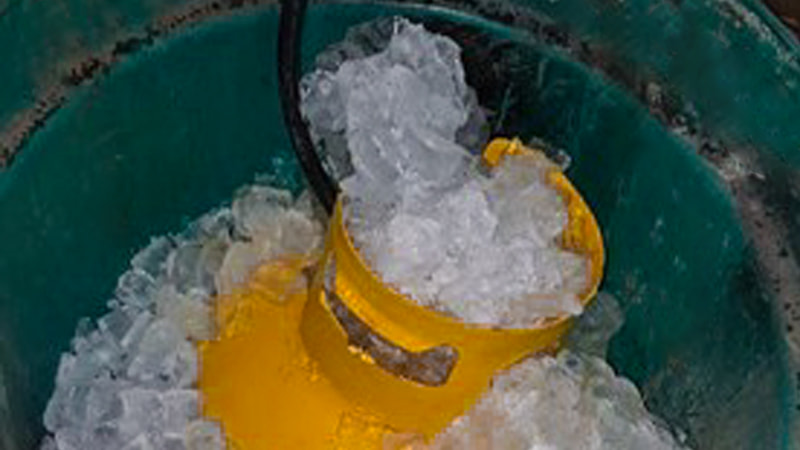

- Is it a hot day? On a hot roof, the pressure inside the recovery tank can naturally rise to very high levels due to the ambient heat. To lower the pressure, create a simple ice bath by placing the tank in a bucket of ice and water. The cooling effect will dramatically lower the tank's pressure and allow recovery to continue.
How can I make my refrigerant recovery go faster?
You're watching the gauges creep, and it feels like the recovery is taking forever. Time is money, and a slow recovery is one of the biggest time sinks on any job.
To speed up recovery, you must reduce restrictions and manage pressures. Use the shortest, widest hoses possible, remove Schrader cores, and cool the recovery tank in an ice bath to create a larger pressure differential.
I've seen technicians cut their recovery times by 50-75% just by improving their setup. It's not about the machine's power; it's about giving the refrigerant a wide, clear path to follow.
- Upgrade Your Hoses: The single biggest bottleneck is your standard ¼-inch charging hose. Upgrading to ½-inch or ⅜-inch hoses dramatically reduces friction and increases flow rate. Keep them as short as possible.
- Pull the Cores: The Schrader valve core is a tiny pinhole that strangles flow. Always use a core removal tool to open up the full diameter of the service port.
- Use the Push-Pull Method: For systems over 10-15 lbs, this is the fastest method. It uses the machine to pull vapor from the tank and push high-pressure gas into the system's vapor port, which forces liquid refrigerant out the liquid line port at high speed. It requires a liquid line access port but can save you hours on large commercial jobs.
What is the correct way to purge my recovery machine?
The recovery is complete, but there's still refrigerant trapped inside your machine. If you don't remove it, you'll contaminate the next job and damage your machine.
Purging uses the machine's own motor to push the remaining trapped refrigerant out of its internal condenser and into the recovery tank. This essential step prevents cross-contamination and ensures the machine is clear for the next job.
I always tell new technicians: the job isn't done until the machine is purged. This process takes less than two minutes and saves you from a world of trouble. While the exact knob positions vary by model, the principle is the same.
- After recovery, keep the hoses connected and turn the main selector knob to "Purge" or "Clear."
- The machine will restart and the sound will change as it pushes the last of the liquid and vapor out of its internal passages.
- Run it until the inlet gauge goes into a vacuum, indicating the machine is empty.
- Now you can shut it down, close the tank valves, and store it.

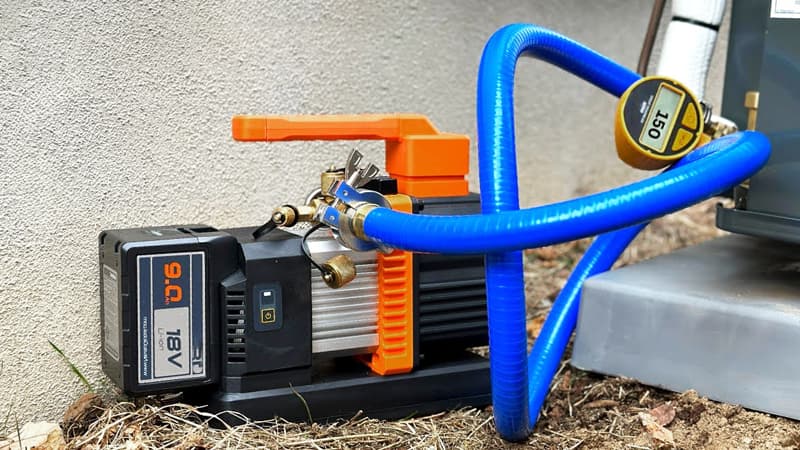

Do I need to pull a vacuum after recovering refrigerant?
You've recovered all the refrigerant. Is the next step a vacuum pump? This is a common point of confusion in the service sequence.
Yes, you absolutely must pull a deep vacuum on the system after recovery and after any repairs have been made. The recovery process only removes refrigerant; the vacuum process removes the air, moisture, and nitrogen that entered the system while it was open.
This brings us back to the first point: recovery machines and vacuum pumps do different jobs.
- Recovery gets the refrigerant out so you can safely open the system for repairs.
- Repair is when you fix the leak or replace the component.
- Evacuation (Vacuum) is the final, critical step before recharging. You must use a vacuum pump to pull the system into a deep vacuum (e.g., below 500 microns) to boil off any moisture and remove all non-condensable gases.
Skipping the vacuum step guarantees that the new refrigerant charge will be contaminated, leading to poor performance and certain compressor failure.
Final Thoughts
Your recovery machine is a smart tool that protects itself. By understanding why it stops and how to optimize your setup, you can turn frustrating delays into quick, professional solutions on every job.
