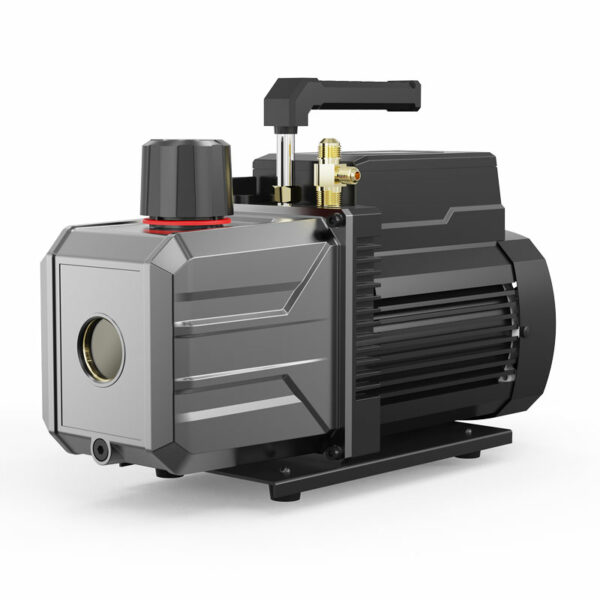

Single Stage Vacuum Pump Model VB130

COLINK™ 3CFM vacuum pump, one stage HVAC air conditioning refrigeration rotary vane vacuum pump VB130, 85L/min 1/4HP 180W 150Micron 5.8kg, belongs to the NEW line of high performance single stage refrigerant vacuum pumps for HVAC applications. This line of vacuum pumps can be used with CFC, HFC, HCFC and HFO refrigerants. Ideal for residential use.

Description

COLINK™ 3CFM vacuum pump, one stage HVAC air conditioning refrigeration rotary vane vacuum pump VB130, 85L/min 1/4HP 180W 150Micron 5.8kg, belongs to the NEW line of high performance single stage refrigerant vacuum pumps for HVAC applications. This line of vacuum pumps can be used with CFC, HFC, HCFC and HFO refrigerants. Ideal for residential use.


Features & Benefits:

  • Integrated cylinder construction results in higher ultimate vacuum and higher pumping speed
  • High efficient filtration with high quality filter element to reduce oil mist efficiently
  • High efficient motor to ensure reliable and outstanding performance
  • Soft rubber lined comfortable and robust handle, easy carry and use
  • Unique and elegant appearance with square-shaped pump casing and fan cover
  • Anti-suckback design to prevent pump oil from returning to contaminate vacuum chamber after the pump stops
  • Sparkless design (R32 version only) to meet ANSI 12:12.01 Ignition Proof standards

Technical Data:

VB series high performance one stage 3CFM vacuum pump

  • MODEL: VB130
  • Power Supply: 220V~50Hz/110V~60Hz
  • Free Air Displacement: 3 CFM / 85 L/min @50Hz
  • Ultimate Vacuum: 150 Micron
  • Motor Power: 1/4 HP / 180 W
  • Intake Fittings: 1/4″ Flare
  • Oil Capacity: 280 ml
  • Net Weight: 5.8 KG
  • Dimension: 281*123*230 mm
