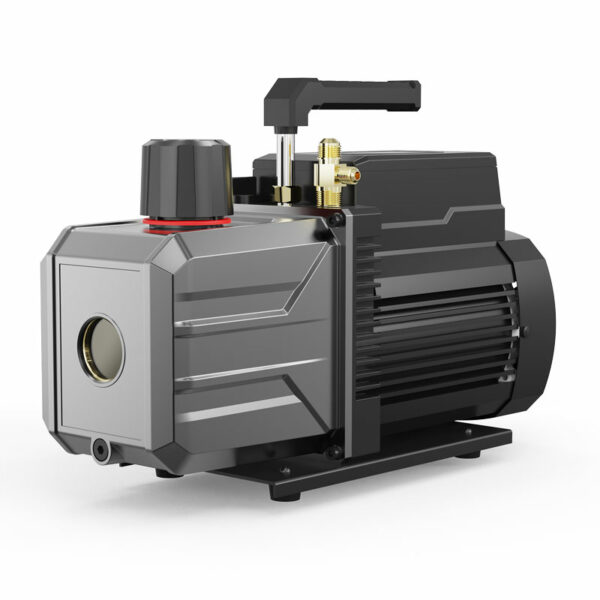

Dual Stage Vacuum Pump Model VB2200
COOLINK™ Dual stage air conditioning a/c 12CFM vacuum pump, oil-sealed rotary vane vacuum pump VB2200, 340L/min, 1.1kW, 15Micron deep vacuum, 15.7kg, belongs to the NEW line of VB high performance refrigerant vacuum pumps for HVAC applications. This line of vacuum pumps can be used with CFC, HFC, HCFC and HFO refrigerants. Ideal for heavy duty commercial and residential use.
Description
COOLINK™ Dual stage air conditioning a/c 12CFM vacuum pump, oil-sealed rotary vane vacuum pump VB2200, 340L/min, 1.1kW 15Micron deep vacuum, 15.7kg, belongs to the NEW line of VB high performance refrigerant vacuum pumps for HVAC applications. This line of vacuum pumps can be used with CFC, HFC, HCFC and HFO refrigerants. Ideal for heavy duty commercial and residential use.
Features & Benefits:
- Integrated cylinder construction results in higher ultimate vacuum and better pumping speed
- Unique and elegant appearance with square-shaped pump casing and fan cover
- High efficient motor to ensure reliable and outstanding performance
- High efficient filtration with high quality filter element to reduce oil mist efficiently
- Soft rubber lined comfortable and robust handle, easy carry and use
- Anti-suckback design to prevent pump oil from returning to contaminate vacuum chamber after the pump stops
- Sparkless design (R32 version only) to meet ANSI 12:12.01 Ignition Proof standards
Technical Data:
VB series high performance dual stage 12CFM vacuum pump
- MODEL: VB2200
- Power Supply: 220V~50Hz/110V~60Hz
- Free Air Displacement: 12 CFM / 340 L/min @50Hz
- Ultimate Vacuum: 15 Micron
- Motor Power: 1.5 HP / 1.1 kW
- Intake Fittings: 1/4″ & 3/8″ Flare
- Oil Capacity: 620 ml
- Net Weight: 15.7 KG
- Dimension: 383*138*255 mm
